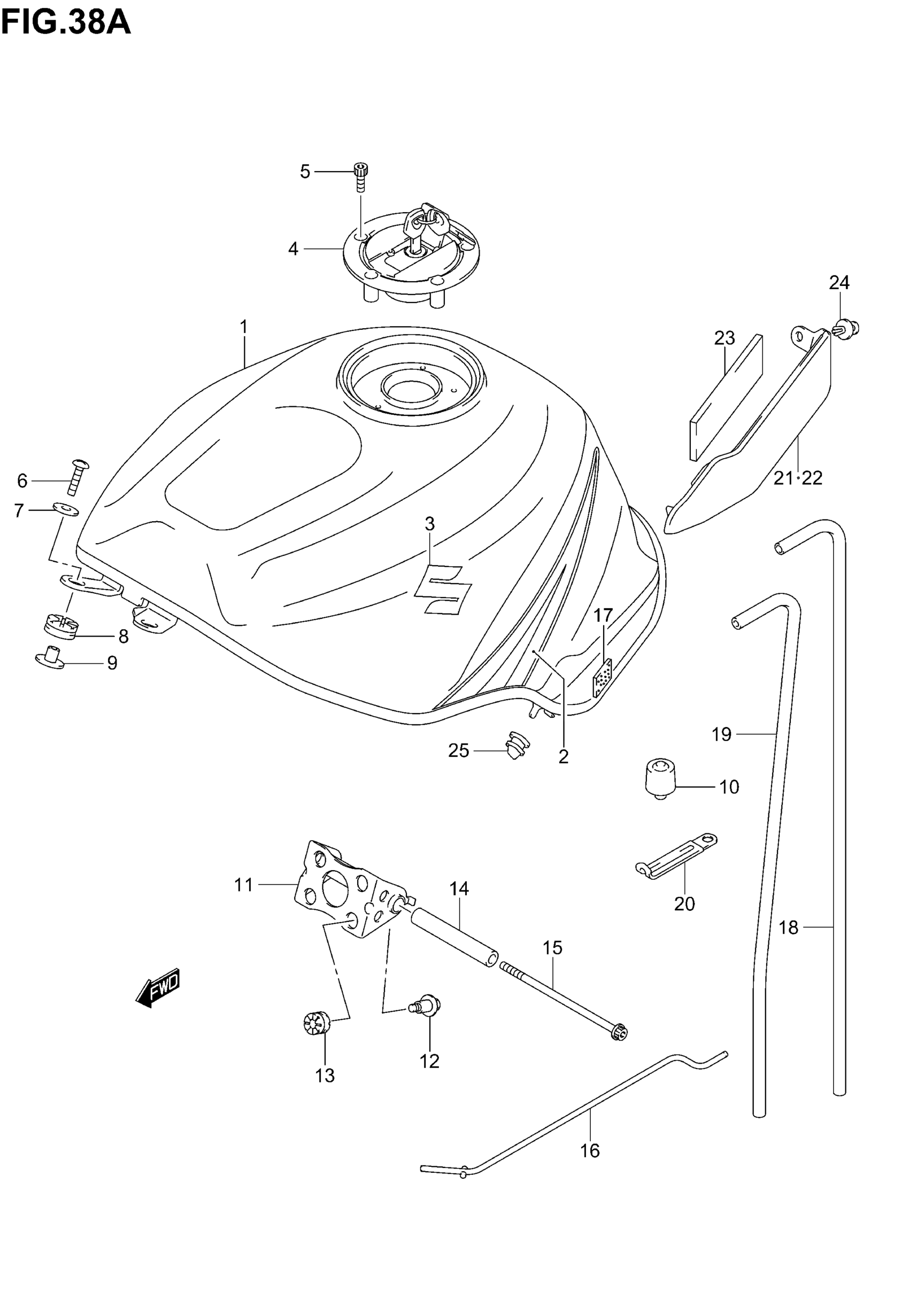

Suzuki GSX-R600 (2005) FUEL TANK (MODEL K5) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | E3,E28

44100-29G30-YBA

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E3,E28

44100-29G30-YEC

Unavailable

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-29G30-019.

44110-29G00-13L

Unavailable

1

TANK ASSY, FUEL (RED) | E3,E28

44100-29G30-YU7

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33

44100-29G50-YBA

Unavailable

1

TANK ASSY, FUEL (YELLOW) | E33

44100-29G50-YEC

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-29G50-019

Unavailable

1

TANK ASSY, FUEL (RED) | E33; Includes Item(s) 2 - 2

44100-29G50-YU7

Unavailable

2

TAPE SET | FOR YBA

68110-29G10-BPR

Unavailable

2

TAPE SET | FOR YEC

68110-29G10-BPT

Unavailable

2

TAPE SET | FOR 019

68110-29G10-MW2

Unavailable

2

TAPE SET | FOR YU7

68110-29G10-BPS

Unavailable

3

EMBLEM

68111-18G20

$29.56

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$108.21

4

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$270.23

5

BOLT

09106-05017

$2.80

6

SCREW, FRONT

09139-06029

$4.84

7

WASHER

09160-06054

$1.62

8

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

9

SPACER, FRONT

44512-16G00

$6.80

10

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.27

11

BRACKET, TANK

44530-29G00

Unavailable

12

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$3.69

13

CUSHION

09320-08071

$3.05

14

SPACER

44561-18G00

$15.52

15

BOLT

09106-06103

$4.14

16

STAY, FUEL TANK

44574-35F00

$13.89

17

FASTENER

44572-13G00

$10.13

18

HOSE,WATER DRAI This part replaces 44423-16G01.

44423-16G02

$12.63

19

HOSE,FUEL TANK This part replaces 44424-18G00.

44424-18G01

$9.99

20

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

21

COVER, TANK RH (BLACK)

44171-29G00-291

$48.82

22

COVER, TANK LH (BLACK)

44181-29G00-291

$47.90

23

CUSHION

44277-29G00

$4.81

24

CLIP (GRAY)

09409-08314-6GS

$2.62

25

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.35
