2000 Suzuki GSX-R600 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

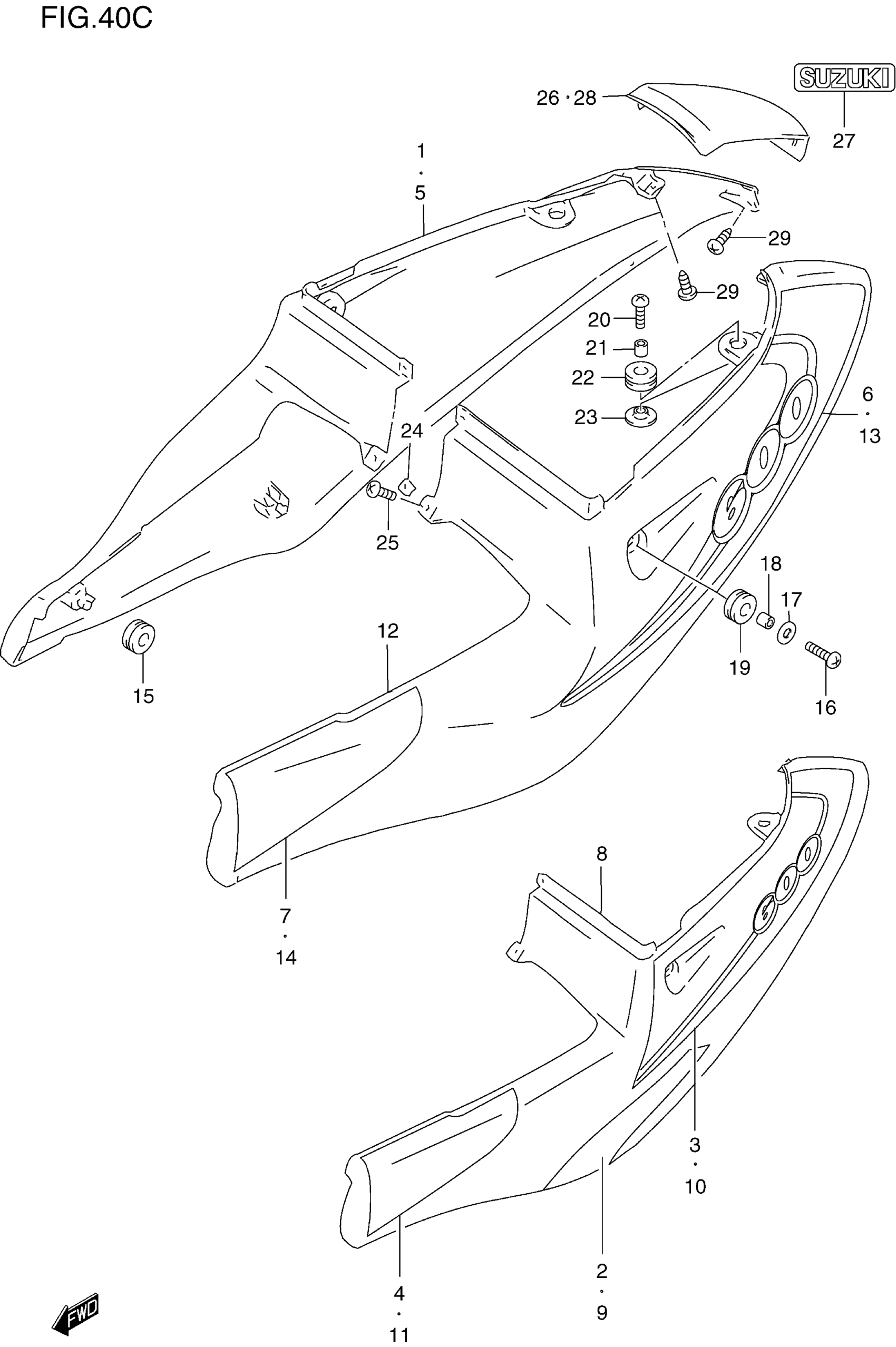

2000 Suzuki GSX-R600 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME,R | FOR L99; Includes Item(s) 2 - 4 This part replaces 47110-34E60-019.

47110-34E61-019

1
Out of stock

2

TAPE, COVER RH NO.1

68135-34E70-CF9

1
Out of stock

3

TAPE, COVER RH

68135-34E80-CG1

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 68136-34E20-0JW.

68136-34E21-0JW

1
Out of stock

5

NO DESCRIPTION AVAILABLE | FOR BP9 This part replaces 47110-34E70-Y7L.

47110-34E71-Y7L

1
Out of stock

5

COVER,FRAME,R | FOR CB3; Includes Item(s) 6 - 7 This part replaces 47110-34E70-Y9X.

47110-34E71-Y9X

1
Out of stock

6

TAPE, COVER RH | FOR Y7L

68135-34E90-CG6

1
Out of stock

6

TAPE, COVER RH | FOR Y9X

68135-34E90-CR2

1
Out of stock

7

TAPE,FRAME COVE | FOR Y7L This part replaces 68136-34E20-Y9H.

68136-34E21-Y9H

1
Out of stock

7

NO DESCRIPTION AVAILABLE | FOR Y9X This part replaces 68136-34E20-Y7E.

68136-34E21-Y7E

1
Out of stock

8

NO DESCRIPTION AVAILABLE | FOR L99; Includes Item(s) 9 - 11 This part replaces 47210-34E60-019.

47210-34E61-019

1
Out of stock

9

TAPE, COVER LH NO.1

68145-34E70-CF9

1
Out of stock

10

TAPE, COVER LH

68145-34E80-CG1

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 68146-34E20-0JW.

68146-34E21-0JW

1
Out of stock

12

NO DESCRIPTION AVAILABLE | FOR BP9 This part replaces 47210-34E70-Y7L.

47210-34E71-Y7L

1
Out of stock

12

NO DESCRIPTION AVAILABLE | FOR CB3; Includes Item(s) 13 - 14 This part replaces 47210-34E70-Y9X.

47210-34E71-Y9X

1
Out of stock

13

TAPE, COVER LH | FOR Y7L

68145-34E90-CG6

1
Out of stock

13

TAPE, COVER LH | FOR Y9X

68145-34E90-CR2

1
Out of stock

14

NO DESCRIPTION AVAILABLE | FOR Y7L This part replaces 68146-34E20-Y9H.

68146-34E21-Y9H

1
Out of stock

14

TAPE,FRAME COVE | FOR Y9X This part replaces 68146-34E20-Y7E.

68146-34E21-Y7E

1
Out of stock

15

CUSHION

09320-08018

4
Out of stock

16

SCREW, SIDE

09139-06071

2

$4.36

In stock

17

WASHER

09160-06054

2

$1.73

In stock

18

SPACER

09180-06258

2

$1.97

In stock

19

2

$3.47

In stock

20

SCREW, UPPER

09136-06082

2

$2.67

In stock

21

SPACER

09180-06286

2
Out of stock

22

CUSHION

45149-04A00

2

$3.68

In stock

23

CUSHION, LOWER

45326-17C00

2

$5.22

In stock

24

2

$2.82

In stock

25

NUT

09148-05038

2
Out of stock

26

COVER, FRAME CENTER (BLACK) | FOR L99; Includes Item(s) 27

47310-34E10-019

1
Out of stock

27

EMBLEM (WHITE)

68166-01D00-0JW

1
Out of stock

28

COVER, FRAME CENTER (BLACK) | FOR BP9,CB3

47311-33E00-Y7L

1
Out of stock

29

6

$2.23

In stock
