2000 Suzuki GSX-R600 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

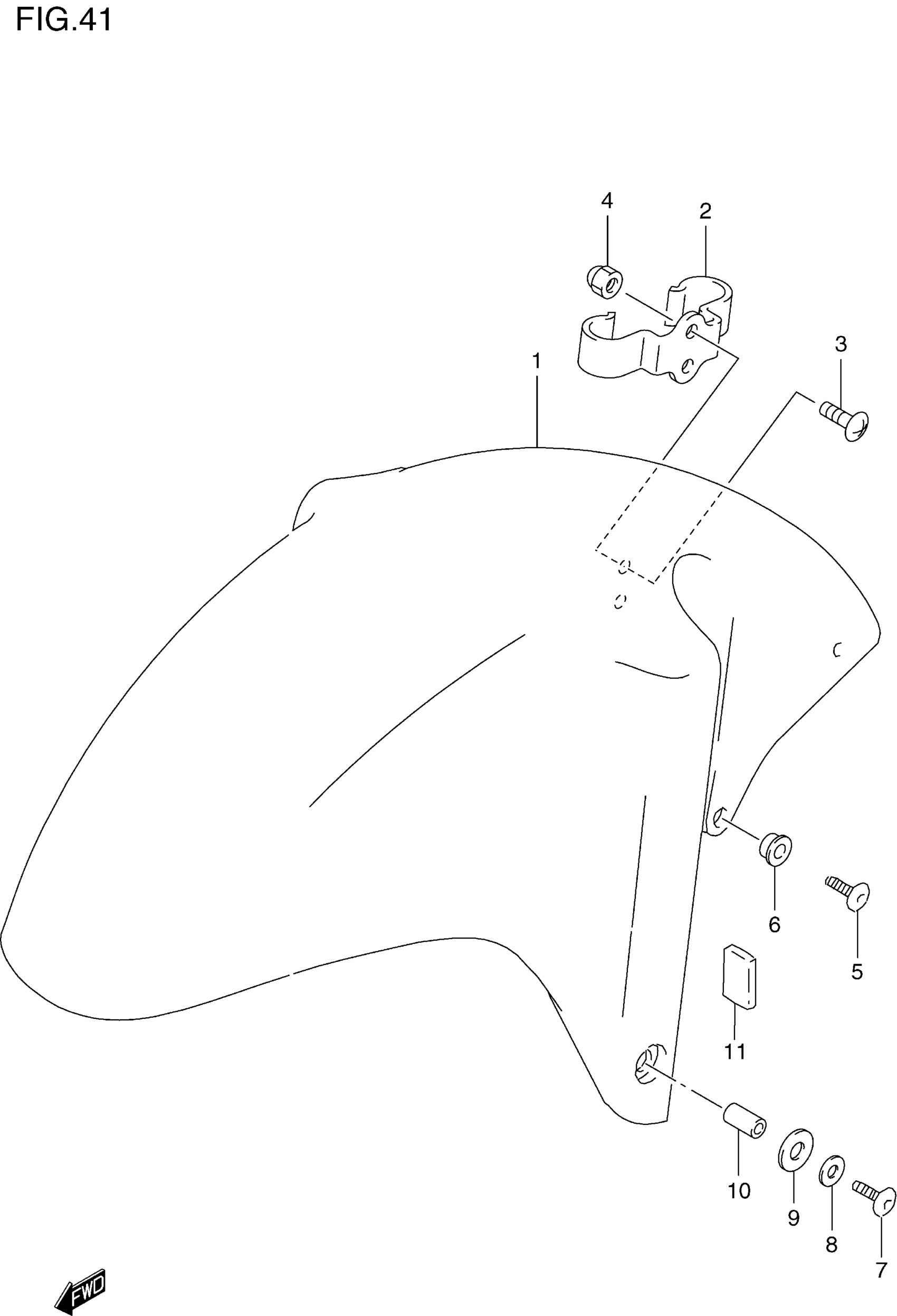

2000 Suzuki GSX-R600 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL V FOR G7Y This part replaces 53110-33E00-17U.

53110-33E50-17U

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL V FOR L99 This part replaces 53110-33E00-1LF.

53110-33E50-1LF

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL W FOR K4B This part replaces 53110-33E40-019.

53110-33E40-33J

1
Out of stock

1

FENDER, FRONT | MODEL W/X/Y FOR L99

53110-33E60

1
Out of stock

1

FENDER, FRONT (BLACK) | MODEL X FOR Y9H

53110-33E40-Y7L

1
Out of stock

1

FENDER, FRONT (YELLOW) | MODEL Y FOR BP9

53110-33E40-Y9H

2
Out of stock

1

FENDER, FRONT (BLUE) | MODEL Y FOR CB3; Includes Item(s) 2 - 4

53110-33E40-Y7E

1
Out of stock

2

CLAMP, BRAKE HOSE | MODEL W/X/Y

53117-33E10

1
Out of stock

3

SCREW | MODEL W/X/Y This part replaces 02142-05103.

02142-0510B

1
Out of stock

4

NUT | MODEL W/X/Y This part replaces 08313-10053.

08313-1005B

1
Out of stock

5

SCREW, REAR

09139-06030

2
Out of stock

6

WASHER

09161-06021

2
Out of stock

7

SCREW, FRONT

09139-06030

2
Out of stock

8

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

2
Out of stock

9

WASHER

53121-33E00

2
Out of stock

10

SPACER

09180-06258

2
Out of stock

11

CUSHION (80X20X10) This part replaces 33652-41520.

33652-01D10

2
Out of stock
