2000 Suzuki GSX-R600 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

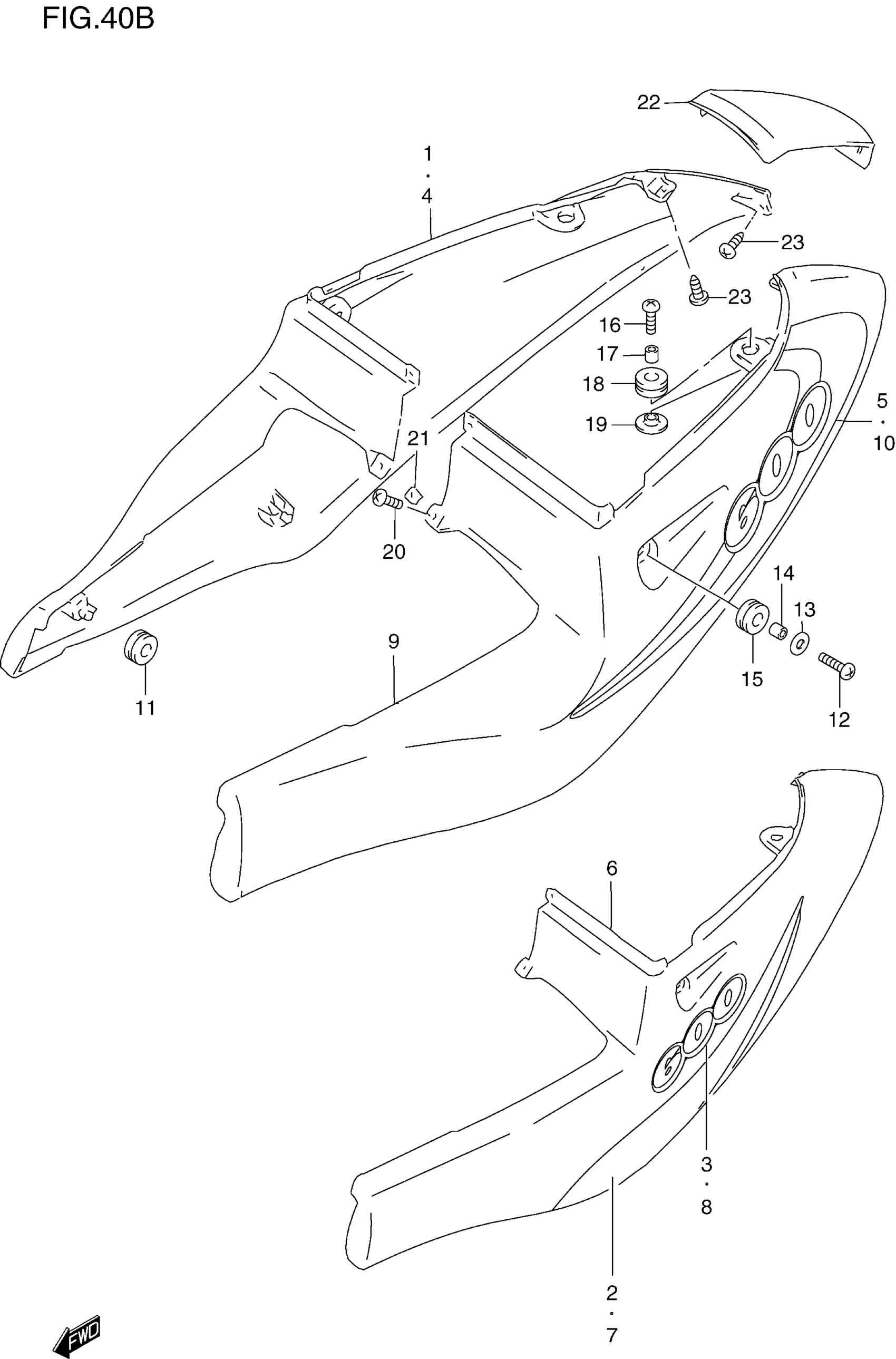

2000 Suzuki GSX-R600 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE) | FOR L99; Includes Item(s) 2 - 3

47110-34E40-0JW

1
Out of stock

2

TAPE, COVER RH

68135-34E50-M6J

1
Out of stock

3

EMBLEM, 600

68131-34E10-K8S

1
Out of stock

4

COVER, FRAME RH (BLACK) | FOR Y9H; Includes Item(s) 5

47110-34E50-Y9X

1
Out of stock

5

TAPE, FRAME COVER RH

68135-34E60-M6R

1
Out of stock

6

COVER, FRAME LH (WHITE) | FOR L99; Includes Item(s) 7 - 8

47210-34E40-0JW

1
Out of stock

7

TAPE, COVER LH

68145-34E50-M6J

1
Out of stock

8

EMBLEM, 600

68131-34E10-K8S

1
Out of stock

9

COVER, FRAME LH (BLACK) | FOR Y9H; Includes Item(s) 10

47210-34E50-Y9X

1
Out of stock

10

TAPE, FRAME COVER LH

68145-34E60-M6R

1
Out of stock

11

CUSHION

09320-08018

4
Out of stock

12

SCREW, SIDE

09139-06071

2
Out of stock

13

WASHER

09160-06054

2
Out of stock

14

SPACER

09180-06258

2
Out of stock

15

CUSHION This part replaces 94433-26B00.

94433-26B01

2
Out of stock

16

SCREW, UPPER

09136-06082

2
Out of stock

17

SPACER

09180-06286

2
Out of stock

18

CUSHION

45149-04A00

2
Out of stock

19

CUSHION, LOWER

45326-17C00

2
Out of stock

20

SCREW This part replaces 03241-15103.

03241-1510B

2
Out of stock

21

NUT

09148-05038

2
Out of stock

22

COVER, FRAME CENTER (WHITE) | FOR L99

47311-33E00-0JW

1
Out of stock

22

COVER, FRAME CENTER (BLACK) | FOR Y9H

47311-33E00-Y7L

1
Out of stock

23

SCREW This part replaces 03541-15163.

03541-1516A

6
Out of stock
