2000 Suzuki GSX-R600 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

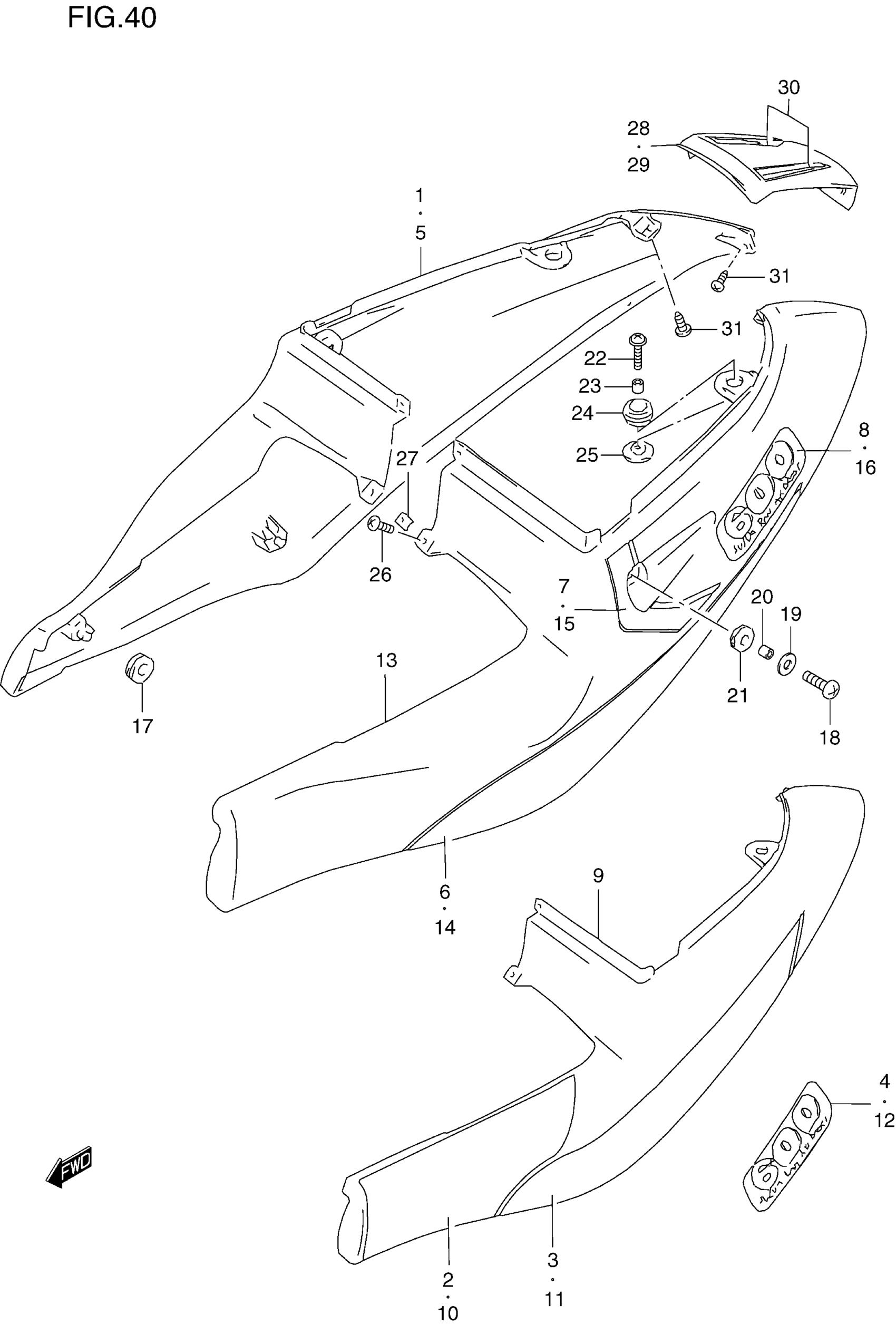

2000 Suzuki GSX-R600 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (GRAY) | FOR G7Y; Includes Item(s) 2 - 4

47110-34E10-17U

1
Out of stock

2

TAPE, FRONT RH (BLACK)

68135-34E10-33J

1
Out of stock

3

TAPE, REAR RH

68136-34E10-H5B

1
Out of stock

4

EMBLEM, 600

68131-34E00-G9F

1
Out of stock

5

COVER, FRAME RH (WHITE) | FOR L99; Includes Item(s) 6 - 8

47110-34E00-0JW

1
Out of stock

6

TAPE, REAR

68135-34E00-F3V

1
Out of stock

7

TAPE, FRONT

68136-34E00-F3S

1
Out of stock

8

EMBLEM, 600

68131-34E00-F3S

1
Out of stock

9

COVER, FRAME LH (GRAY) | FOR G7Y; Includes Item(s) 10 - 12

47210-34E10-17U

1
Out of stock

10

TAPE, FRONT LH (BLACK)

68145-34E10-33J

1
Out of stock

11

TAPE, REAR LH

68146-34E10-H5B

1
Out of stock

12

EMBLEM, 600

68131-34E00-G9F

1
Out of stock

13

COVER, FRAME LH (WHITE) | FOR L99; Includes Item(s) 14 - 16

47210-34E00-0JW

1
Out of stock

14

TAPE, REAR

68145-34E00-F3V

1
Out of stock

15

TAPE, FRONT

68146-34E00-F3S

1
Out of stock

16

EMBLEM, 600

68131-34E00-F3S

1
Out of stock

17

CUSHION

09320-08018

4
Out of stock

18

SCREW, SIDE

09139-06071

2
Out of stock

19

WASHER

09160-06054

2
Out of stock

20

SPACER

09180-06258

2
Out of stock

21

CUSHION This part replaces 94433-26B00.

94433-26B01

2
Out of stock

22

SCREW, UPPER

09136-06082

2
Out of stock

23

SPACER

09180-06286

2
Out of stock

24

CUSHION

45149-04A00

2
Out of stock

25

CUSHION, LOWER

45326-17C00

2
Out of stock

26

SCREW This part replaces 03241-15103.

03241-1510B

2
Out of stock

27

NUT

09148-05038

2
Out of stock

28

COVER, FRAME CENTER (GRAY) | FOR G7Y

47311-33E00-17U

1
Out of stock

29

COVER, FRAME CENTER (WHITE) | FOR L99; Includes Item(s) 30

47310-34E00-0JW

1
Out of stock

30

TAPE SET, CENTER COVER | FOR 0JW

68165-34E00-F3S

1
Out of stock

31

SCREW This part replaces 03541-15163.

03541-1516A

6
Out of stock
