2013 Suzuki GSX-R250L3 Steering Stem Diagram

← All diagrams

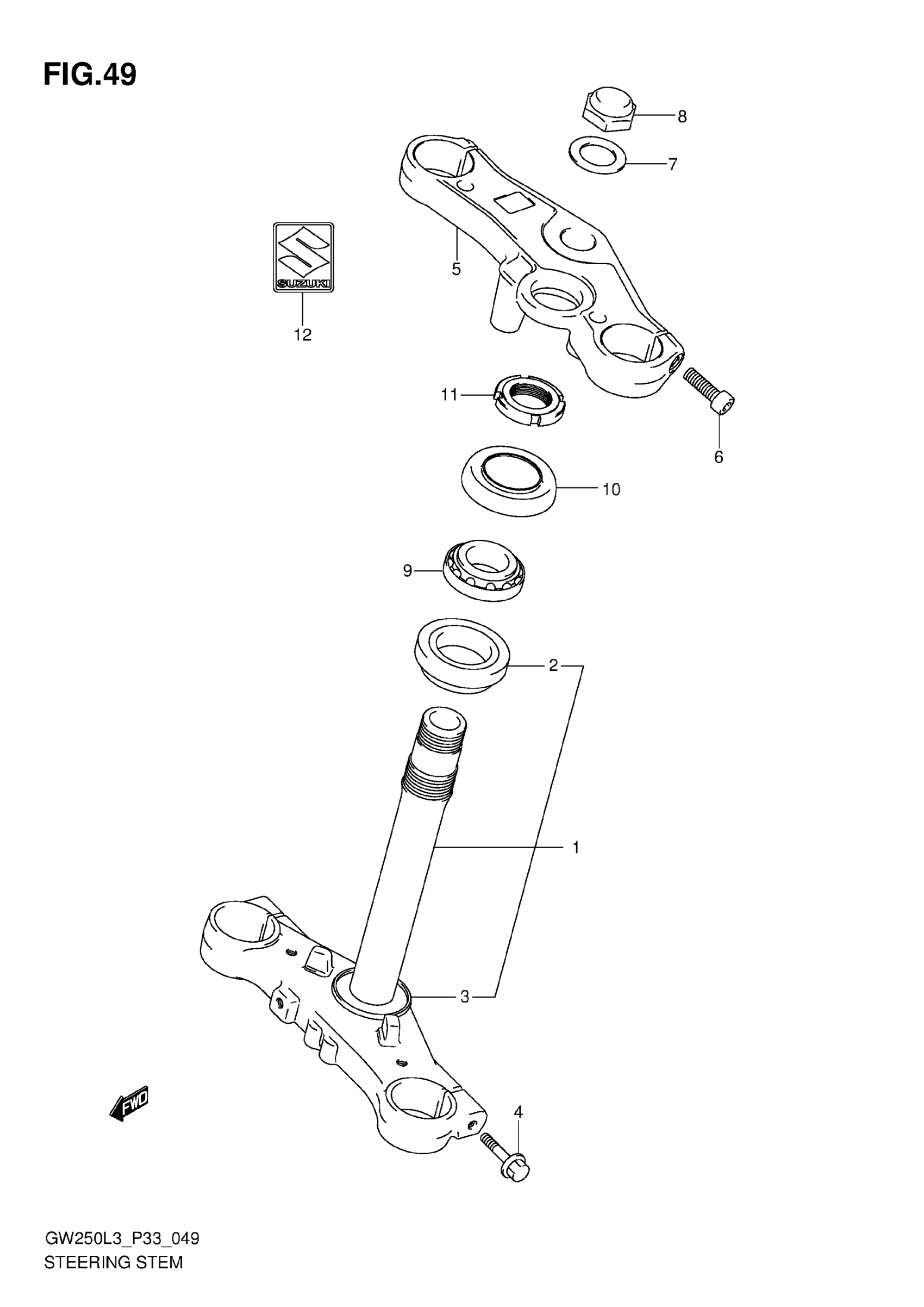

Find the part on the Steering Stem diagram for your 2013 Suzuki GSX-R250L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki GSX-R250L3 Steering Stem Diagram

#

Description
Price
Status
Order Qty

1

BRACKET, UNDER

51410-48H00-000

Out of stock

2

BEARING (30X55X17)

51610-48H00-000

Out of stock

3

SEAL, STEERING LOWER

51644-48H00-000

Out of stock

4

BOLT BRACKET, UNDER

51451-48H00-000

Out of stock

5

BRACKET, UPPER

51311-48H00-000

Out of stock

6

BOLT BRACKET, UPPER

51166-48H00-000

Out of stock

7

WASHER

51172-48H00-000

Out of stock

8

NUT,CAP

51353-24B00-000

Out of stock

9

BEARING (25X47X15)

09267-25L01-000

Out of stock

10

SEAL, STEERING UPPER DUST

51643-49002-000

Out of stock

11

NUT, STEERING STEM

51631-48H00-000

Out of stock

12

EMBLEM, "S"

68281-35F00-000

Out of stock
