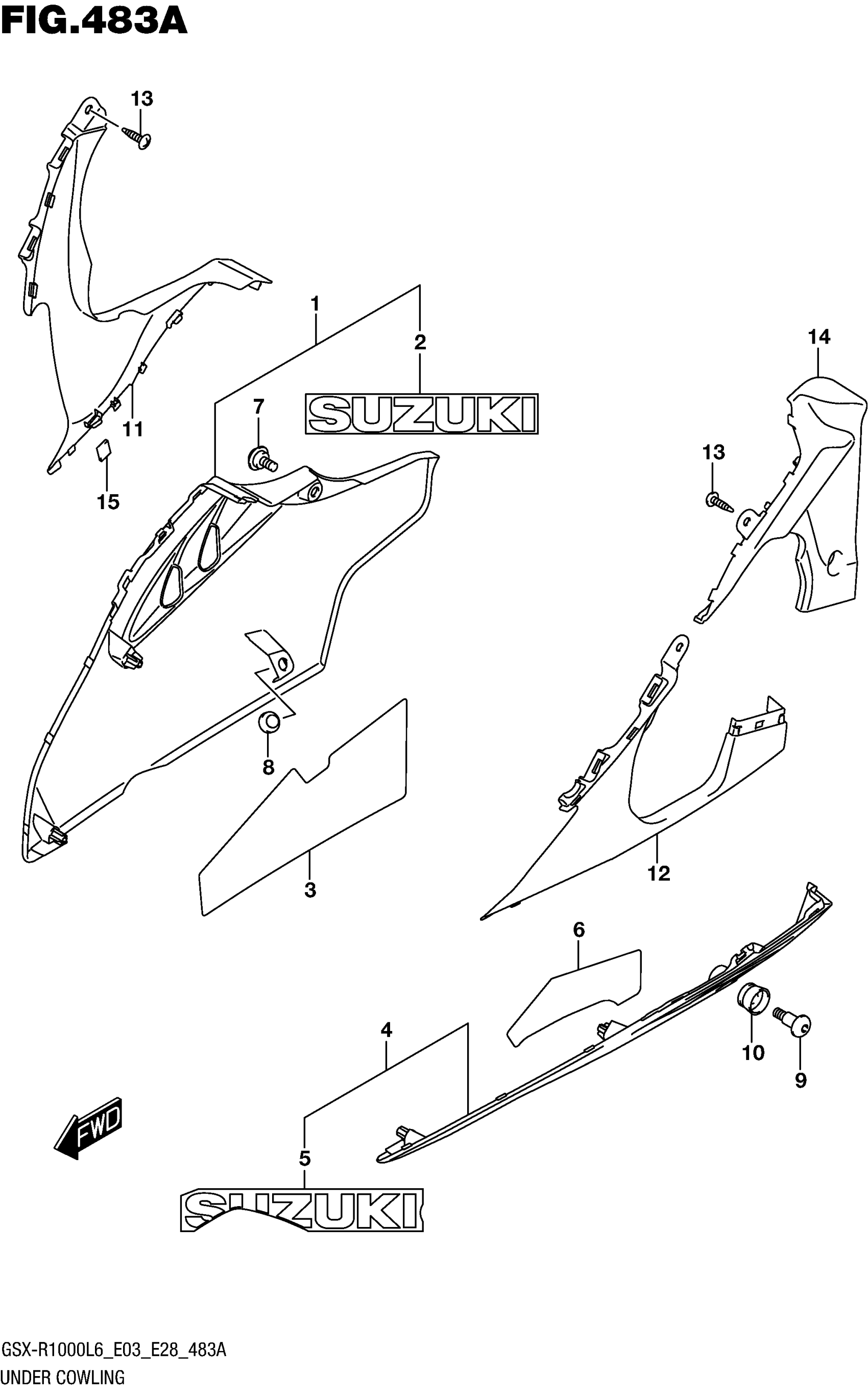

Suzuki GSX-R1000L6 (2016) UNDER COWLING Diagram

#

Description
Price

1-1

COWL, UNDER RH (RED) | FOR YSF

94470-47H00-ASX

$339.33

1-2

COWL, UNDER RH (WHITE) | FOR AJP

94470-47H00-AHX

$339.33

1-3

COWL, UNDER RH (BLACK) | FOR JSP

94470-47H00-YVB

$339.33

2-1

.EMBLEM, "SUZUKI" RH (WHITE) | FOR ASX

68181-33C20-YWW

$32.42

2-2

.EMBLEM, "SUZUKI" RH (RED) | FOR AHX,YVB

68181-33C20-YVZ

$27.30

3

SHIELD, HEAT FRONT RH

94476-47H00

$14.88

4-1

COWL, UNDER LH (RED) | FOR YSF

94480-47H00-ASX

Unavailable

4-2

COWL, UNDER LH (WHITE) | FOR AJP

94480-47H00-AHX

$339.33

4-3

COWL, UNDER LH (BLACK) | FOR JSP

94480-47H00-YVB

$339.33

5-1

.EMBLEM, "SUZUKI" LH (WHITE) | FOR ASX

68191-47H00-YWW

$33.52

5-2

.EMBLEM, "SUZUKI" LH (RED) | FOR AHX,YVB

68191-47H00-YVZ

$32.02

6

SHIELD, HEAT LH

94486-47H00

$25.92

7

SCREW (5X13)

09139-05064

$2.64

8

CUSHION

09321-10018

$4.33

9

BOLT (6X20)

09139-06190

$3.89

10

CUSHION

94479-15H00

$4.41

11

COWL, SIDE LOWER RH

94474-47H00

$54.07

12

COWL, SIDE LOWER LH

94484-47H00

$53.08

13

SCREW

03541-0516A

$1.41

14

COVER, SIDE COWL LH

94482-47H00

$52.60

15

CUSHION (10X10X1)

63115-37H00

$4.82

16

COLOR :

SPECIAL NOTE

Unavailable

16

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

16

:

SPECIAL NOTE

Unavailable

16

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
