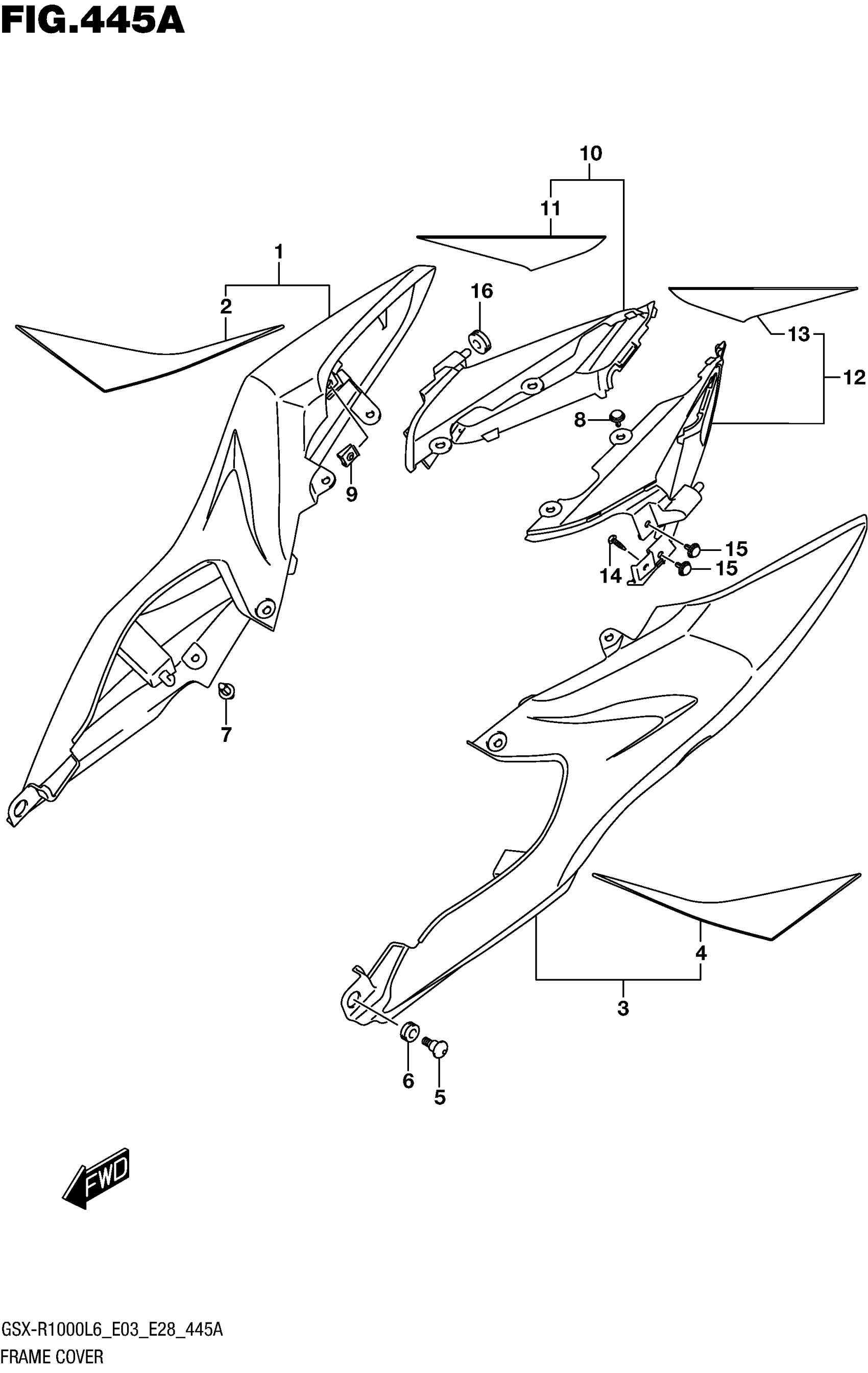

Suzuki GSX-R1000L6 (2016) FRAME COVER (YSF) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47110-47H10-YSF

$195.92

2

.TAPE, FRAME COVER RH

68135-47H10-AGQ

$32.95

3

COVER, FRAME LH (BLUE)

47210-47H10-YSF

$192.30

4

.TAPE, FRAME COVER LH

68145-47H10-AGQ

$32.95

5

SCREW, FRONT

47133-43H00

$7.98

6

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.74

7

CLIP (BLACK)

09409-06314-5PK

$2.80

8

CLIP

09409-06328

$3.00

9

NUT

09148-05038

$2.01

10

COVER, FRAME REAR RH (BLACK)

47610-47H00-YKV

$131.30

11

.TAPE, FRAME COVER REAR RH

68135-47H20-A4Q

$25.63

12

COVER, FRAME REAR LH (BLACK)

47620-47H00-YKV

$131.30

13

.TAPE, FRAME COVER REAR LH

68145-47H20-A4Q

$26.10

14

SCREW

03541-0512A

$1.41

15

CLIP

09409-06328

$3.00

16

CUSHION

09320-06504

$4.61
