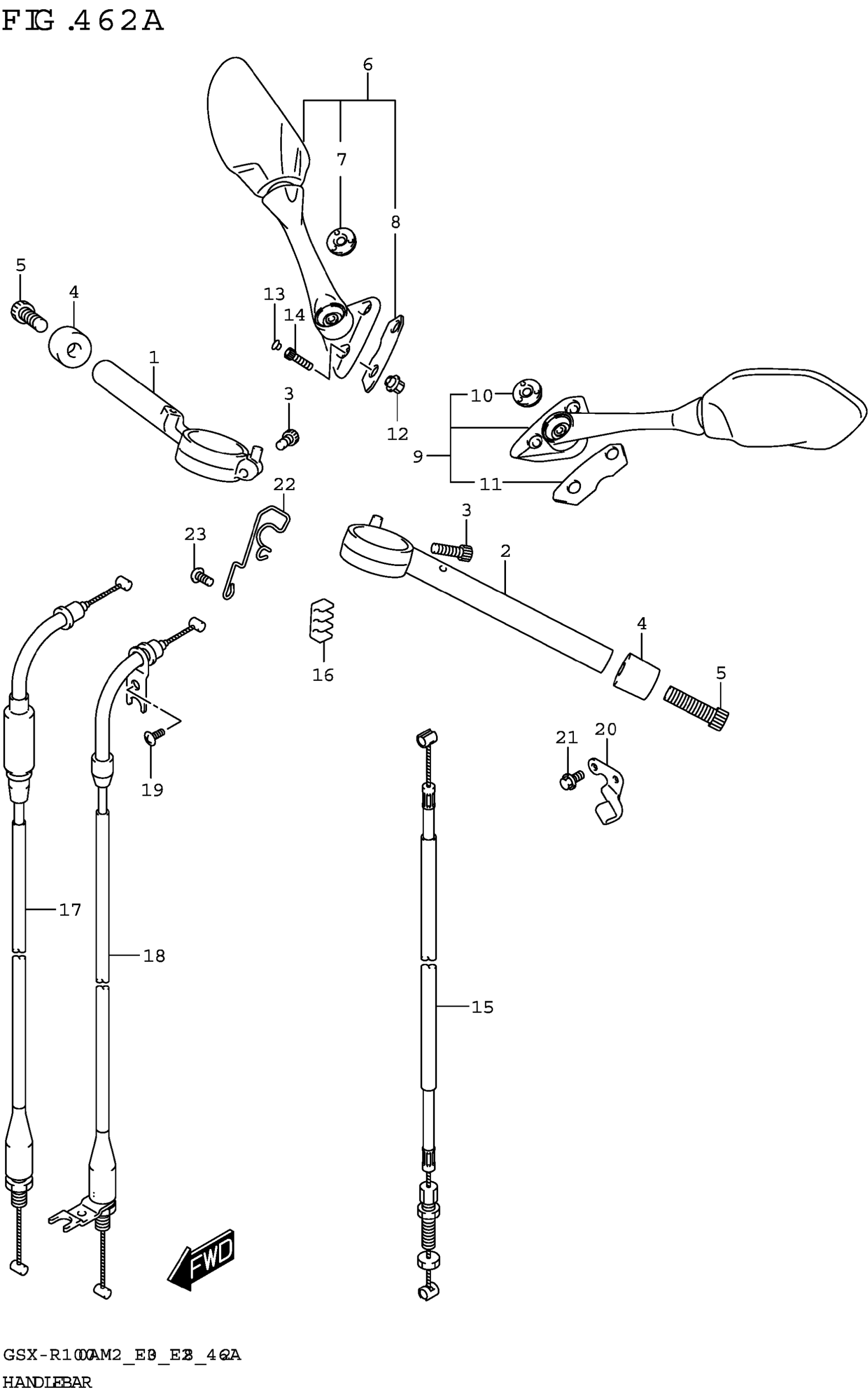

Suzuki GSX-R1000AM2 (2022) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR,R

56111-17K01

$94.72

2

HANDLEBAR,L

56151-17K01

$122.77

3

BOLT (8X32)

09106-08185

$2.80

4

BALANCER,HANDLEBAR

56278-17K00

$25.75

5

BOLT,HANDLE BALANCER

56277-17K00

$3.76

6

MIRROR ASSY,REAR VIEW,R

56500-17K00

$155.05

7

.CAP,MIRROR

56515-17K00

$4.77

8

.CUSHION,MIRROR

56525-17K00

$7.82

9

MIRROR ASSY,REAR VIEW,L

56600-17K00

$148.58

10

.CAP,MIRROR

56515-17K00

$4.77

11

.CUSHION,MIRROR

56525-17K00

$7.82

12

NUT,RR VIEW MIRROR

56619-41G01

$8.91

13

CAP (OD:10)

09250-05009

$2.17

14

BOLT

07130-0620B

$2.88

15

CABLE ASSY,CLUTCH

58200-17K01

$37.48

16

CLAMP

58285-17K00

$4.12

17

CABLE ASSY,THROTTLE NO.1

58300-17K01

$65.00

18

CABLE ASSY,THROTTLE NO.2

58300-17K11

$68.72

19

SCREW (5X10)

09125-05042

$2.04

20

STOPPER,CLUTCH CABLE

58635-17K00

$12.85

21

BOLT

01550-0616A

$2.01

22

GUIDE,CABLE

58621-17K01

Unavailable

23

SCREW (6X16)

09139-06214

$2.73
