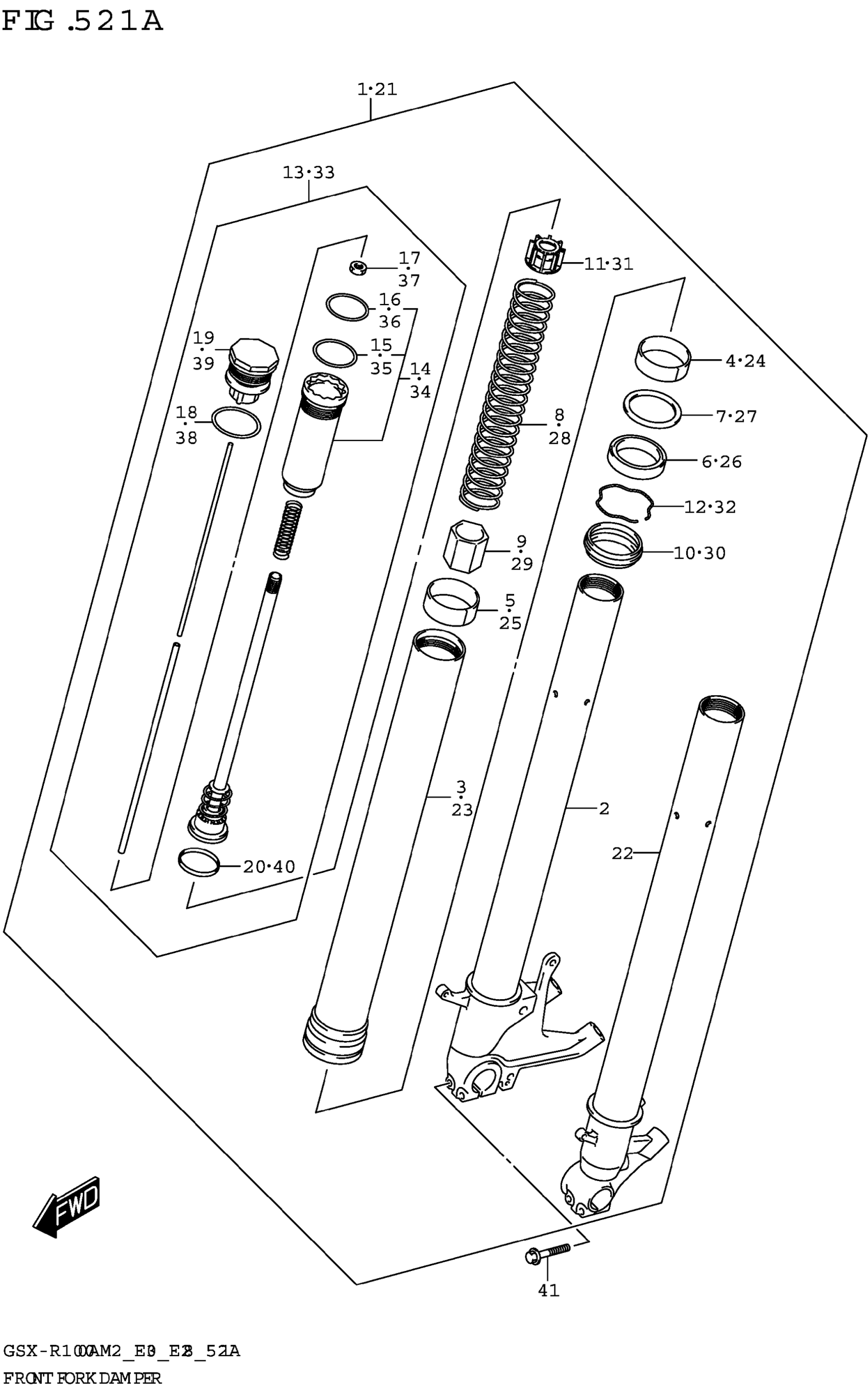

Suzuki GSX-R1000AM2 (2022) FRONT FORK DAMPER (GSX-R1000A) Diagram

#

Description
Price

1

DAMPER ASSY,FR,R

51103-17K01

$1,370.78

2

.TUBE,INNER,R

51110-17K00

$636.17

3

.TUBE,OUTER

51131-17K00

$552.17

4

.BUSH, GUIDE

51152-47H00

$13.01

5

.BUSH,SLIDE

51152-47H10

$13.90

6

.SEAL,OIL

51153-47H00

$24.63

7

.SPACER,SEAL

51168-29G00

$8.65

8

.SPRING

51171-47H20

Unavailable

9

.COLLAR,SPRING

51176-47H20

$73.82

10

.SEAL, DUST

51173-27G00

$24.34

11

.COLLAR,SPRING

51175-47H00

Unavailable

12

.RING,STOPPER

51556-38B00

$6.61

13

.ROD,PISTON

52110-17K00

Unavailable

14

..CASE,ROD GUIDE

51174-17K00

$126.22

15

...RING,PISTON

51118-47H00

$19.06

16

...O-RING

51187-47H10

$6.65

17

..NUT

51827-29G00

Unavailable

18

..O-RING

51187-47H00

$6.52

19

..BOLT

51189-17K00

$159.92

20

..RING,PISTON

51118-47H20

$14.55

21

DAMPER ASSY,FR,L

51104-17K01

$1,646.85

22

.TUBE,INNER,L

51120-17K00

$636.17

23

.TUBE,OUTER

51131-17K00

$552.17

24

.BUSH, GUIDE

51152-47H00

$13.01

25

.BUSH,SLIDE

51152-47H10

$13.90

26

.SEAL,OIL

51153-47H00

$24.63

27

.SPACER,SEAL

51168-29G00

$8.65

28

.SPRING

51171-47H20

Unavailable

29

.COLLAR,SPRING

51176-47H20

$73.82

30

.SEAL, DUST

51173-27G00

$24.34

31

.COLLAR,SPRING

51175-47H00

Unavailable

32

.RING,STOPPER

51556-38B00

$6.61

33

.ROD,PISTON

52110-17K00

Unavailable

34

..CASE,ROD GUIDE

51174-17K00

$126.22

35

...RING,PISTON

51118-47H00

$19.06

36

...O-RING

51187-47H10

$6.65

37

..NUT

51827-29G00

Unavailable

38

..O-RING

51187-47H00

$6.52

39

..BOLT

51189-17K00

$159.92

40

..RING,PISTON

51118-47H20

$14.55

41

BOLT

51321-36F00

$5.44
