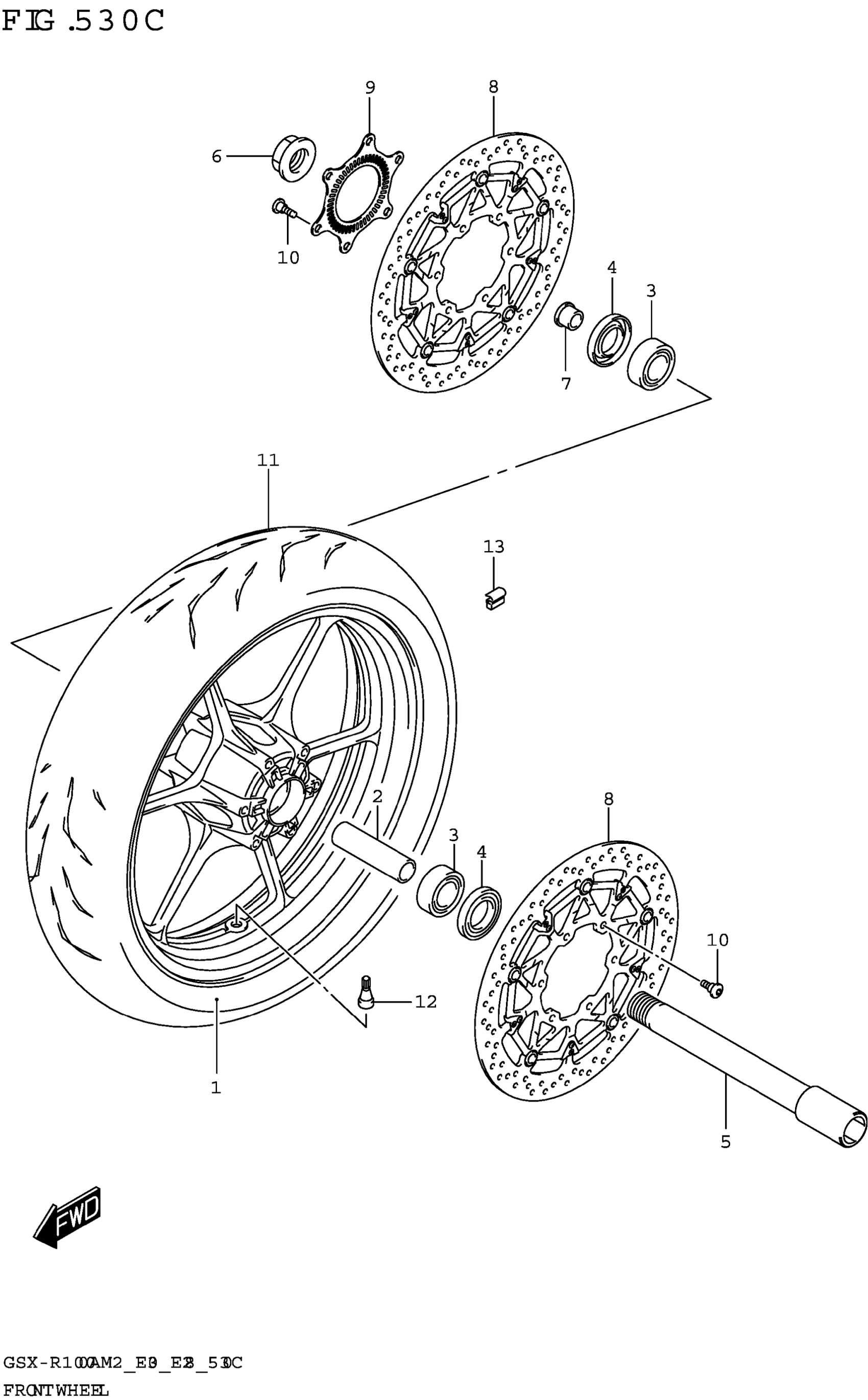

Suzuki GSX-R1000AM2 (2022) FRONT WHEEL (GSX-R1000A) Diagram

Description

Price

WHEEL,FRONT (17M/CXMT3.50,BLA | K)

54111-17K00-019

$831.88

SPACER,FR HUB BEARING

54731-35F10

$34.29

BEARING (25X52X15)

09262-25191

$21.91

.SEAL,OIL (32X52X7)

09285-32004

$7.20

AXLE,FR

54711-47H00

$174.26

NUT,FR AXLE

54712-47H00

$46.87

SPACER,FR AXLE,R

54751-41G10

$17.99

DISC,FRONT BRAKE

59210-17K01

$521.28

RING,SPEED SENSOR FR (48T)

54162-47H00

$128.85

BOLT (6X23)

09106-06134

$2.87

TIRE,FRONT (120/70ZR17M/C 58W This part replaces 55110-17K20.

55110-17K21

$199.83

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

13-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

13-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

13-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93
