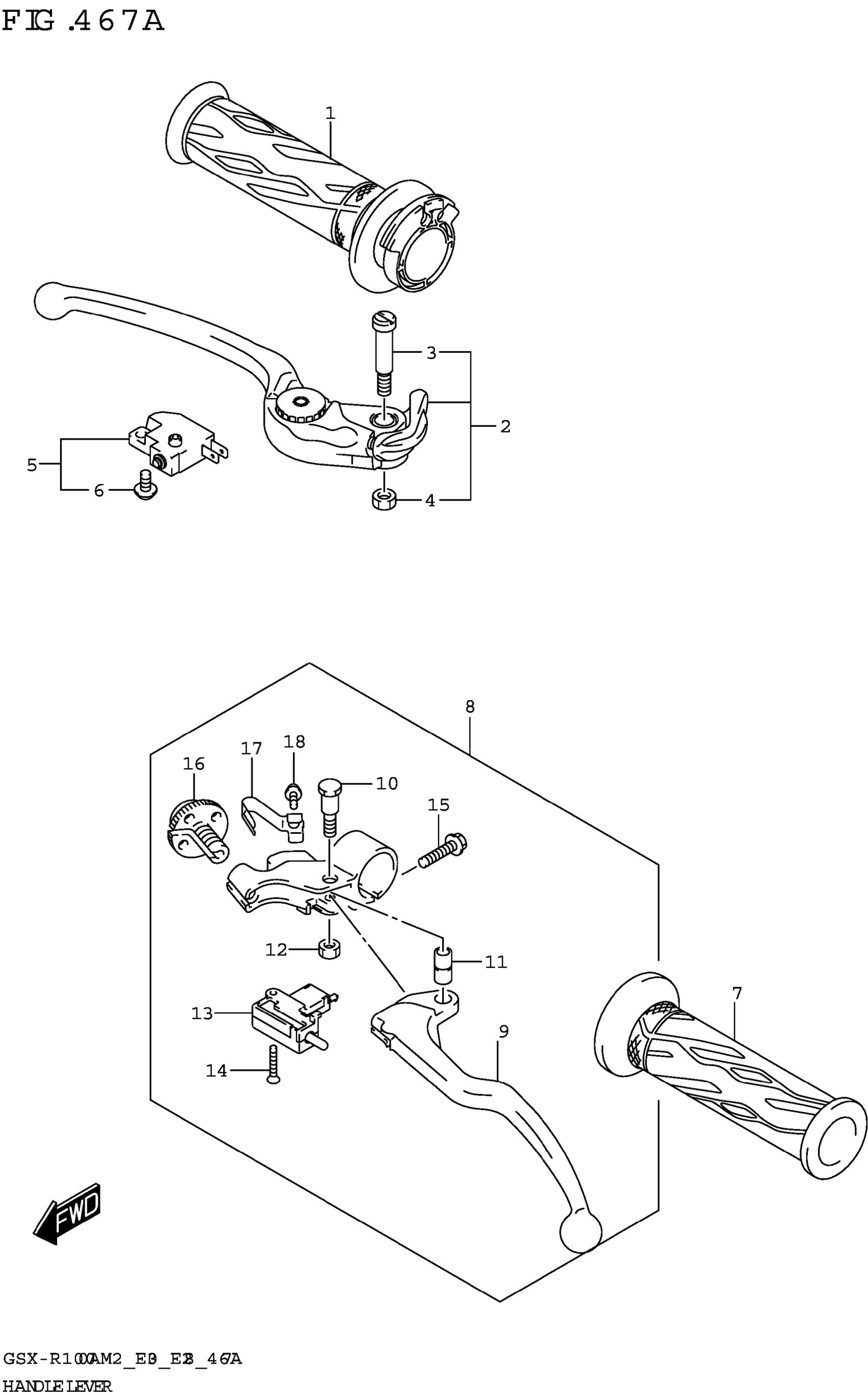

Suzuki GSX-R1000AM2 (2022) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

LEVER ASSY,BRAKE

57300-17K00

$65.69

3

.BOLT,LEVER PIVOT

57431-29G00

$8.52

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

SWITCH ASSY,FR BRAKE

57460-14J02

$35.21

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57211-21H01

$10.18

8

LEVER ASSY,CLUTCH

57500-41G70

$109.18

9

.LEVER,CLUTCH

57621-41G10

$31.29

10

.BOLT,LEVER PIVOT

57431-41G60

$11.78

11

.COLLAR

57532-41G00

$18.07

12

NUT

08319-3106B

$2.47

13

.SWITCH,CLUTCH

57560-41G20

$20.93

14

.SCREW,CLUTCH SWITCH

57562-41G21

$7.63

15

..BOLT

01547-0620B

$2.43

16

.NUT,ADJUSTER

57641-33E21

$46.38

17

.SPRING,ADJUST

57644-33E10

Unavailable

18

.SCREW,ADJUST

57642-33E10

Unavailable
