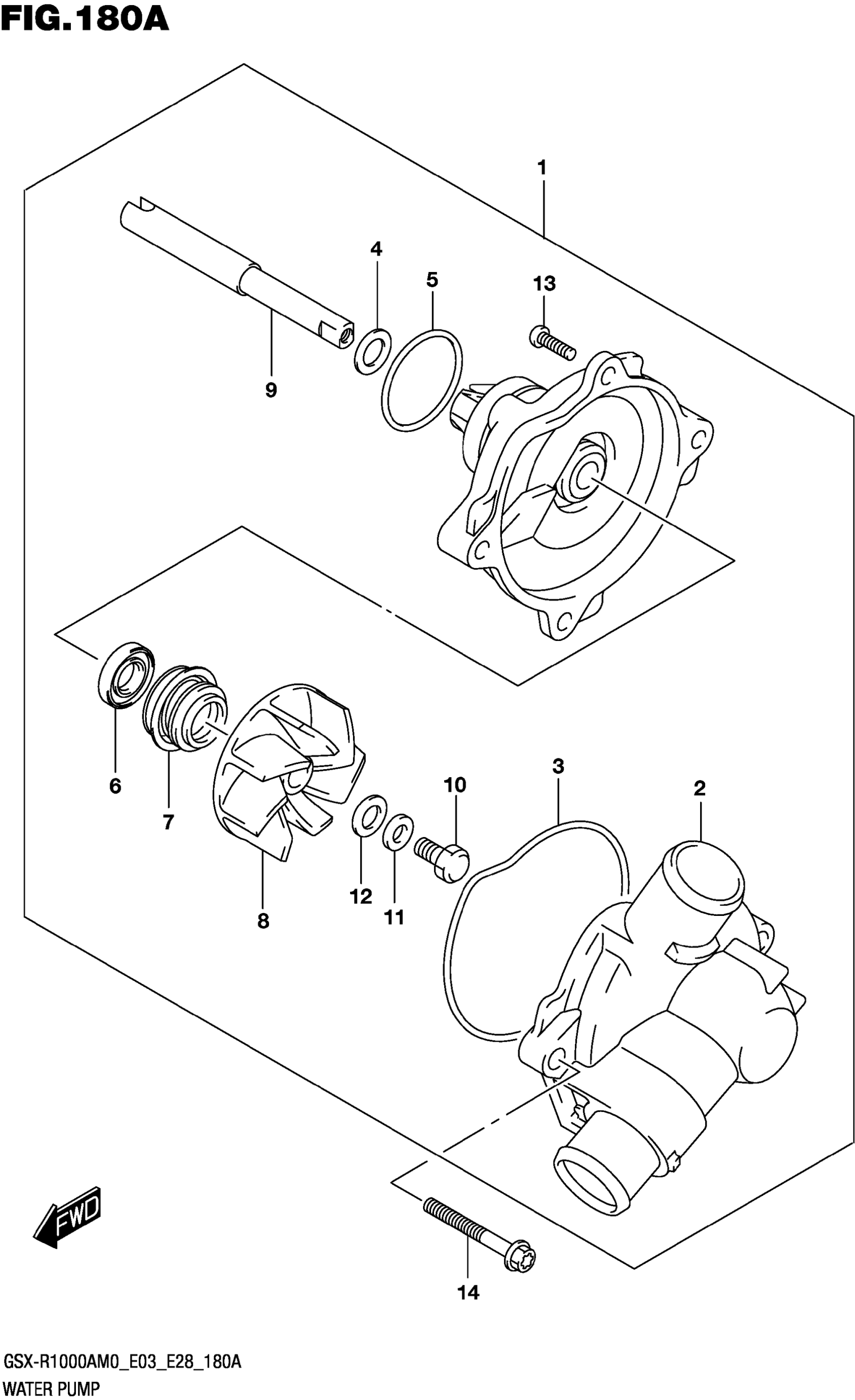

Suzuki GSX-R1000AM0 (2020) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-17K00.

17400-17K01

$302.52

2

.CASE

17410-17K00

$188.60

3

.O-RING This part replaces 17418-33400.

17418-33401

$4.09

4

.WASHER

17432-07G00

$2.61

5

.O-RING

17435-33400

$13.99

6

.SEAL,OIL

17461-01H00

$16.11

7

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

8

.IMPELLER

17491-17K00

Unavailable

9

.SHAFT

17511-47H00

Unavailable

10

.BOLT (6X13)

09100-06099

$2.08

11

.WASHER

09164-06006

$2.66

12

.GASKET (6X15X2.2)

09168-06025

$2.80

13

.SCREW

02112-0616A

$1.43

14

BOLT (L:35)

09103-06530

$1.68
