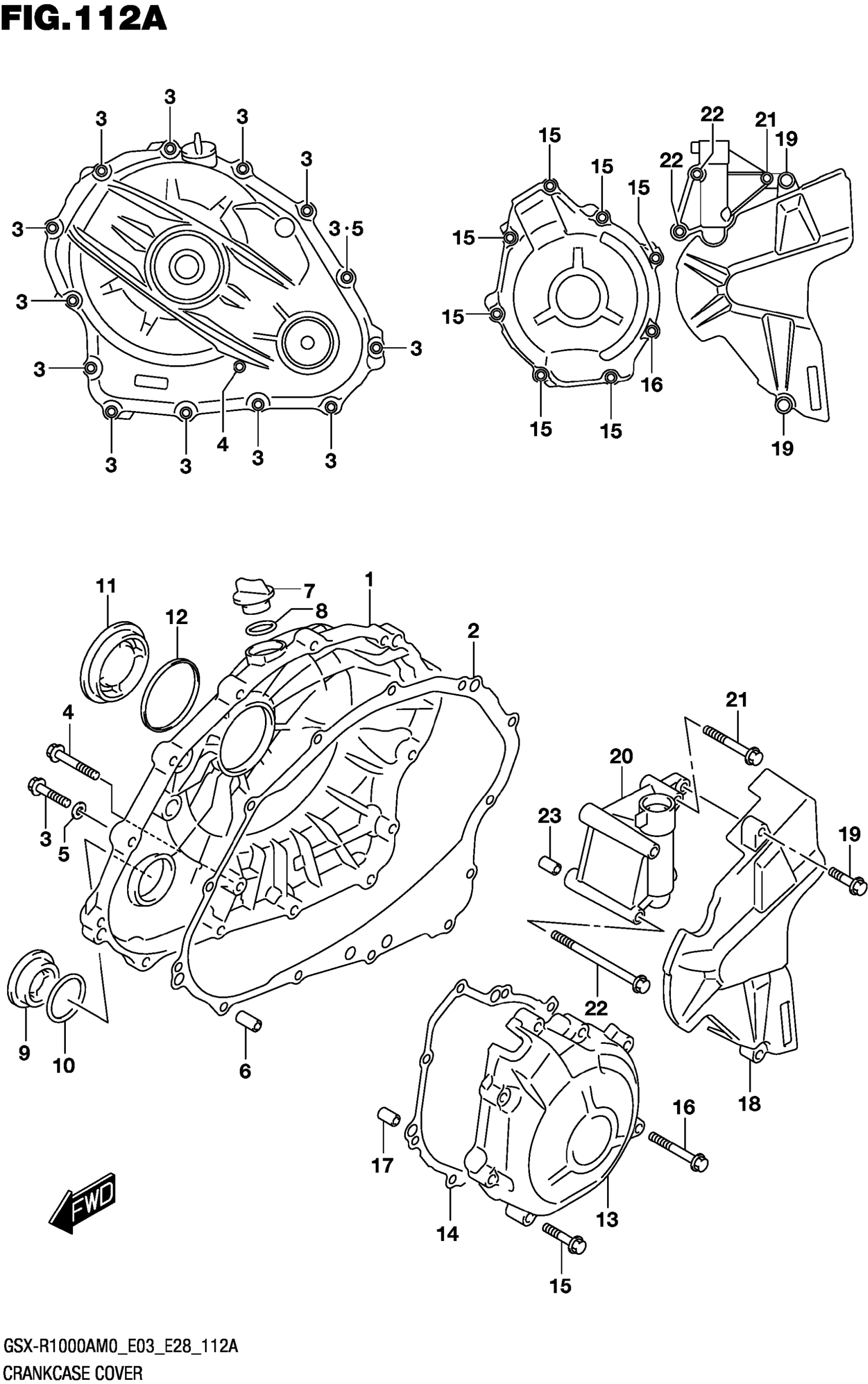

Suzuki GSX-R1000AM0 (2020) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-17K00

$252.32

2

.GASKET,CLUTCH COVER (NA)

11482-17K00

$14.58

3

BOLT (6X30)

09103-06529

$1.83

4

BOLT (6X40)

09103-06531

$2.58

5

GASKET (5.8X13X1.2)

09168-06023

$2.09

6

PIN

04211-09189

$1.70

7

PLUG,ENGINE OIL FILLER

11971-25D00

$4.89

8

O-RING (D:3.1,ID:16.8)

09280-17003

$1.70

9

PLUG (36X10)

09259-36021

$12.83

10

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

11

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$23.95

12

O-RING (D:2.4,ID:52.6)

31156-17E00

$4.40

13

COVER,MAGNETO

11351-17K01

$130.44

14

.GASKET,MAGNETO COVER (NA)

11483-17K00

$8.04

15

BOLT (6X30)

09103-06529

$1.83

16

BOLT (L:45)

09103-06532

$2.27

17

PIN (8.5X18X2.3)

04211-09149

$1.70

18

COVER,ENG SPROCKET

11360-17K00

$24.17

19

BOLT

01550-0625B

$2.53

20

HOLDER,CLUTCH RELEASE

11371-17K00

$142.62

21

BOLT (L:45)

09103-06532

$2.27

22

BOLT (L:90)

09103-06547

Unavailable

23

PIN (8.5X18X2.3)

04211-09149

$1.70
