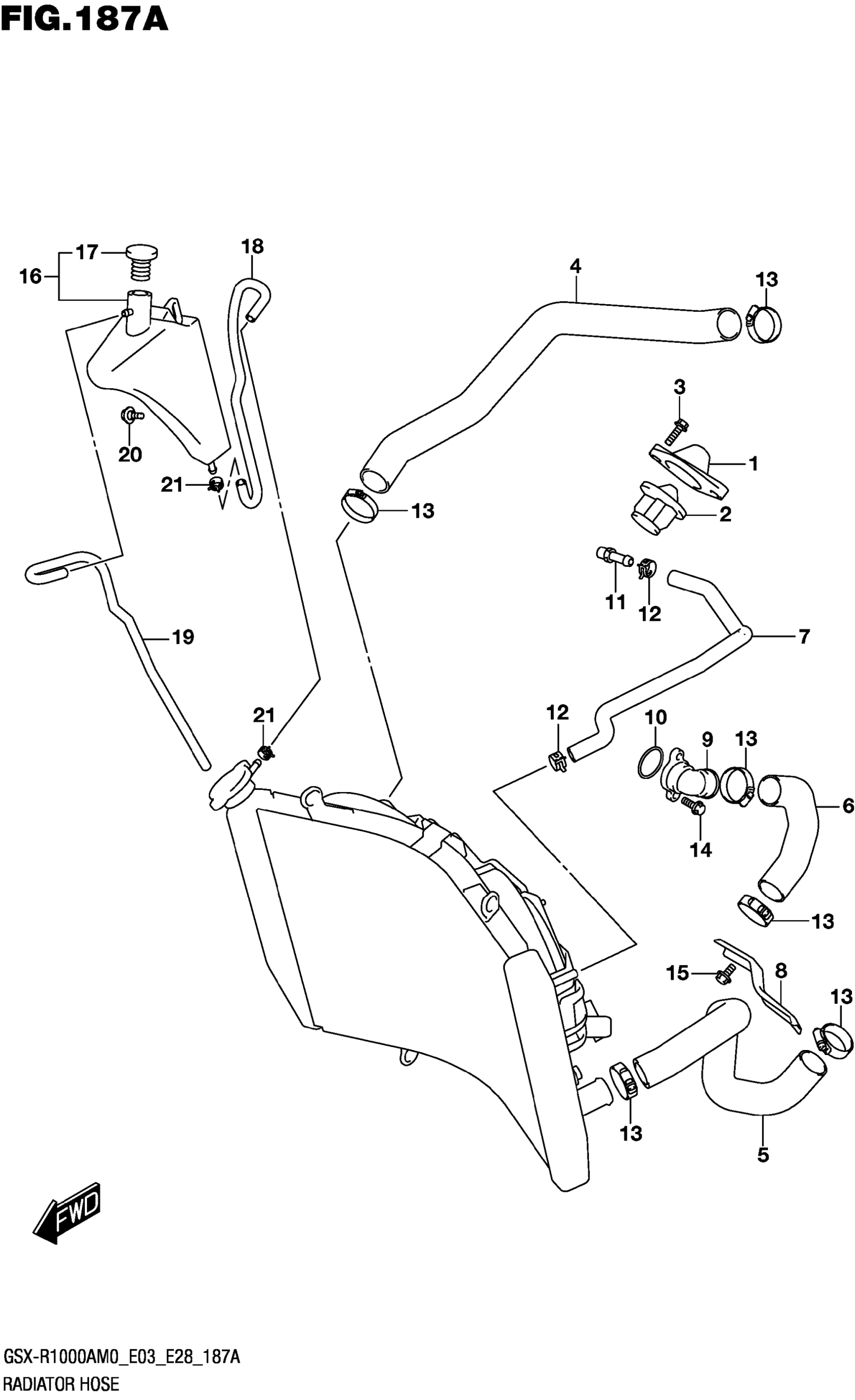

Suzuki GSX-R1000AM0 (2020) RADIATOR HOSE Diagram

#

Description
Price

1

COVER,THERMOSTAT

17661-37H00

$41.02

2

THERMOSTAT,WATER

17670-06G61

$23.59

3

BOLT

01547-0620A

$2.01

4

HOSE,RDTR INLET

17851-17K00

$38.53

5

HOSE,RDTR OUTLET

17852-17K00

$28.41

6

HOSE,CYLINDER INLET

17853-17K00

$17.53

7

HOSE,WATER BYPASS

17854-17K00

$31.13

8

BRACKET,HOSE GUIDE

17859-17K00

$30.55

9

CONNECTOR,CYL WATER INLET

17861-17K00

$49.77

10

O-RING (D:2.4,OD:27.7)

09280-28005

$2.49

11

UNION

09362-09011

$7.57

12

CLIP

09401-12414

$2.98

13

CLAMP

09402-35501

$6.68

14

BOLT

01547-0616A

$2.01

15

BOLT

01550-0612A

$1.97

16

TANK ASSY,RESERVOIR

17910-17K00

$87.33

17

.CAP,WATER RESERVOIR TANK

17931-31J00

$8.13

18

HOSE,RESERVOIR TANK INLET

17981-17K00

$16.77

19

HOSE,RSVR TANK OVFL

17982-47H10

$14.93

20

BOLT (6X12)

09111-06085

$4.16

21

CLIP (ID:8.6)

09401-08411

$1.77
