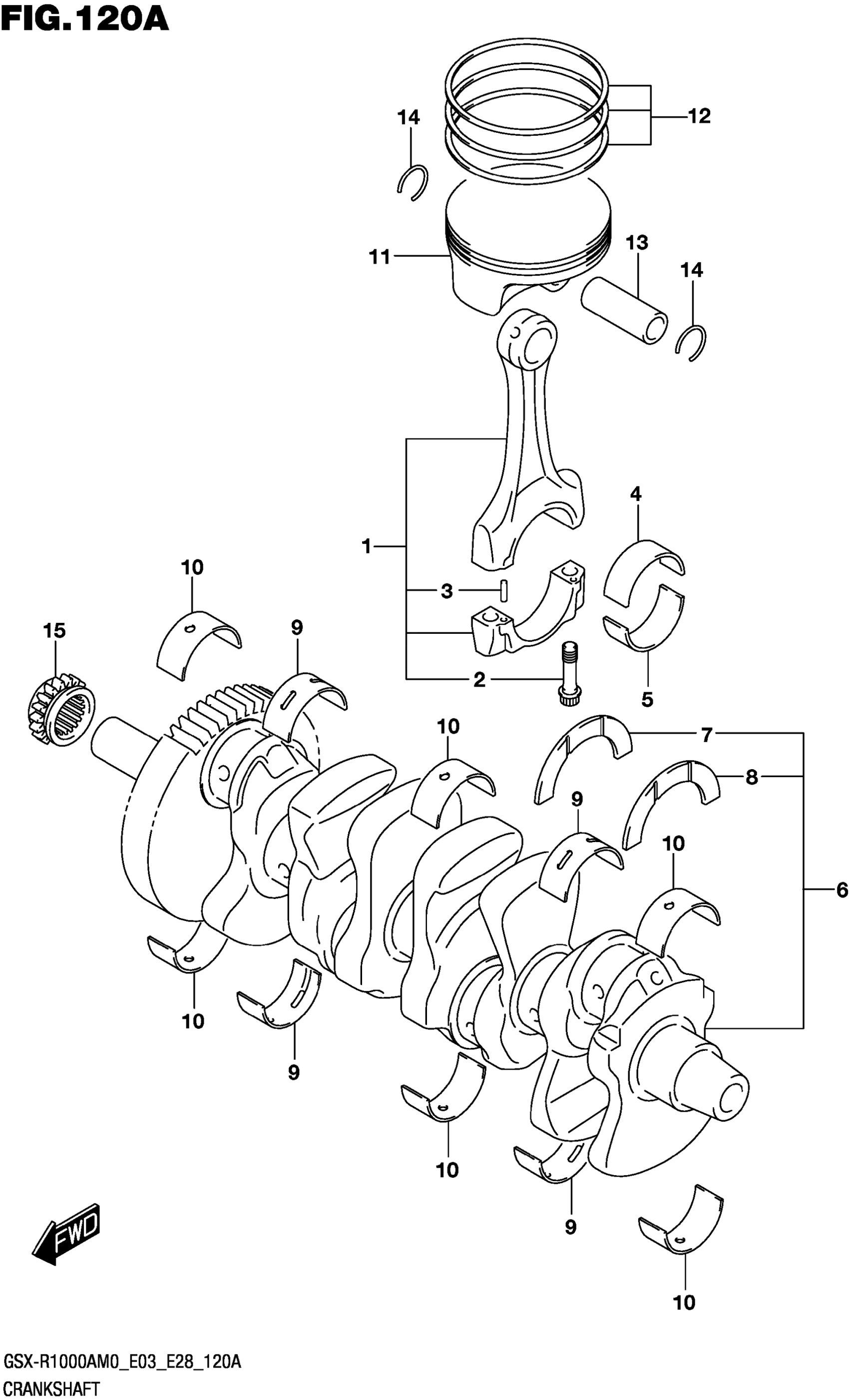

Suzuki GSX-R1000AM0 (2020) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-17K00

$212.77

2

.BOLT,CONNROD

12163-17K00

$11.77

3

.PIN

04221-03059

$1.87

4-1

BEARING,CRANK PIN UPPER | GREEN

12164-17K00-0A0

$16.65

4-2

BEARING,CRANK PIN UPPER | BLACK

12164-17K00-0B0

$16.25

4-3

BEARING,CRANK PIN UPPER | BROWN

12164-17K00-0C0

$16.03

4-4

BEARING,CRANK PIN UPPER | YELLOW

12164-17K00-0D0

$24.13

5-1

BEARING,CRANK PIN LOWER

12164-17K10-0A0

$23.02

5-2

BEARING,CRANK PIN LOWER

12164-17K10-0B0

$16.56

5-3

BEARING,CRANK PIN LOWER

12164-17K10-0C0

$16.56

5-4

BEARING,CRANK PIN LOWER

12164-17K10-0D0

$17.45

6

CRANKSHAFT SET This part replaces 12000-17870.

12000-17880

$1,531.95

7

.BEARING,CRANK THRUST

12228-48B00-0B0

$13.05

8-1

.BEARING,CRANK THRUST

12228-48B00-0C0

$12.82

8-2

.BEARING,CRANK THRUST

12228-48B00-0D0

$13.30

8-3

.BEARING,CRANK THRUST

12228-48B00-0E0

$8.80

8-4

.BEARING,CRANK THRUST

12228-48B00-0F0

$13.30

8-5

.BEARING,CRANK THRUST

12228-48B00-0G0

$13.30

8-6

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.09

8-7

.BEARING,CRANK THRUST

12228-48B00-0E0

$8.80

9-1

BEARING,CRANKSHAFT

12229-17K00-0A0

$25.35

9-2

BEARING,CRANKSHAFT

12229-17K00-0B0

$25.35

9-3

BEARING,CRANKSHAFT

12229-17K00-0C0

$17.49

9-4

BEARING,CRANKSHAFT

12229-17K00-0D0

$17.40

9-5

BEARING,CRANKSHAFT

12229-17K00-0E0

$25.35

10-1

BEARING,CRANKSHAFT

12229-17K10-0A0

$24.98

10-2

BEARING,CRANKSHAFT

12229-17K10-0B0

$25.23

10-3

BEARING,CRANKSHAFT

12229-17K10-0C0

$24.65

10-4

BEARING,CRANKSHAFT

12229-17K10-0D0

$17.40

10-5

BEARING,CRANKSHAFT

12229-17K10-0E0

$25.35

11

PISTON This part replaces 12111-17K00-0F0.

12111-17K02-0F0

$164.22

12

RING SET,PISTON

12140-17K00

$64.80

13

PIN,PISTON

12151-17K00

$43.80

14

CIRCLIP,PISTON PIN This part replaces 12152-17K01.

12152-17K02

$8.02

15

SPROCKET,CAM CHAIN DRIVE (NT: | 7)

12731-47H00

$129.13
