2008 Suzuki GSX-R1000 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

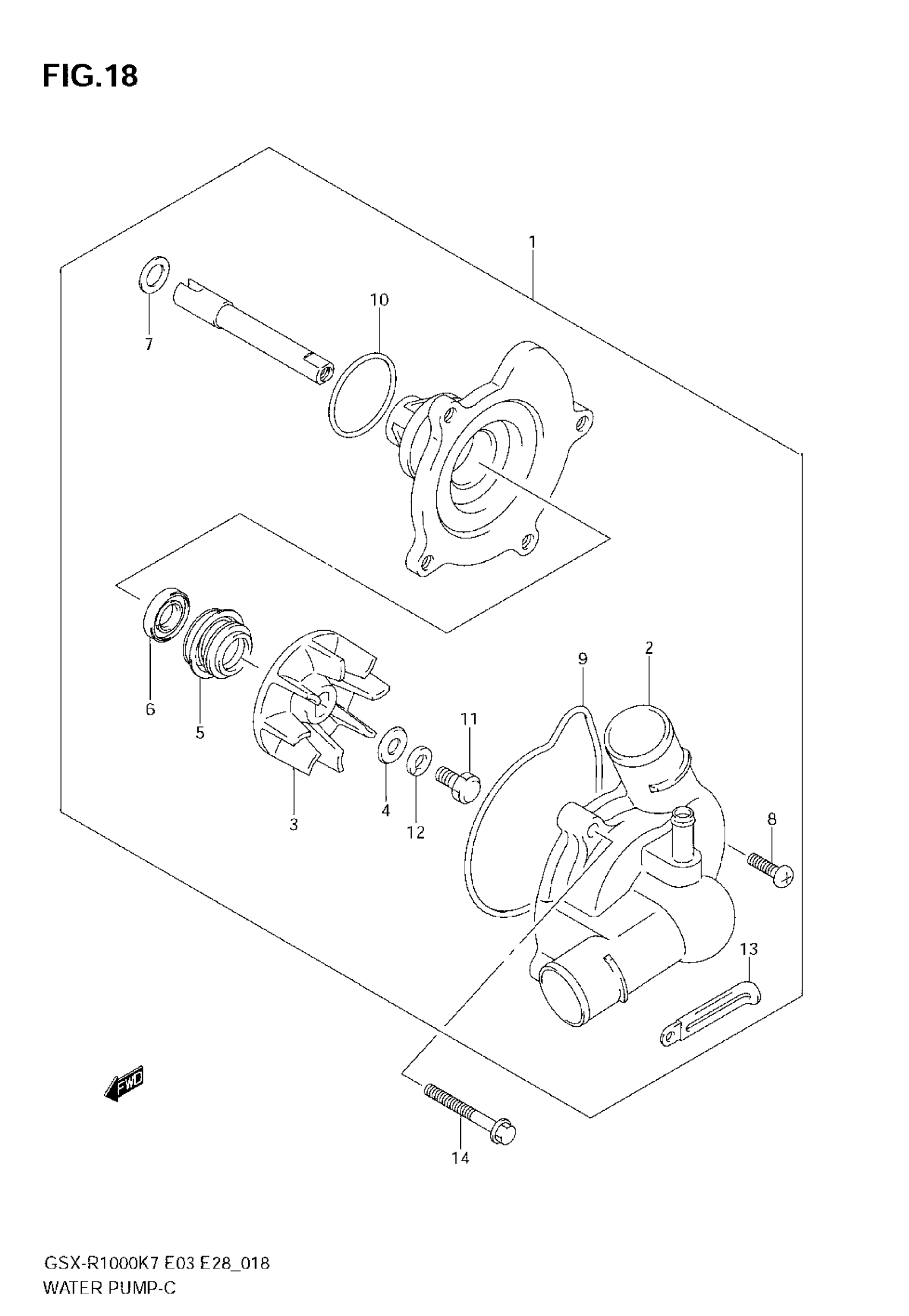

2008 Suzuki GSX-R1000 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

CASE, WATER PUMP

17410-21H00

1

$169.10

In stock

3

IMPELLER

17491-17E01

1

$27.45

In stock

4

GASKET

09168-06025

1

$2.92

In stock

5

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

6

.SEAL,OIL (10X21X5)

17461-48G00

1
Out of stock

7

WASHER

17432-07G00

1
Out of stock

8

SCREW

02112-0616A

2
Out of stock

9

1

$4.46

In stock

10

.O-RING

17435-33400

1
Out of stock

11

BOLT (6X13)

09100-06099

1

$2.41

In stock

12

LOCK WASHER

09164-06006

1

$2.78

In stock

13

CLAMP (L:45)

09404-06429

1
Out of stock

14

BOLT

01547-0635A

2
Out of stock
