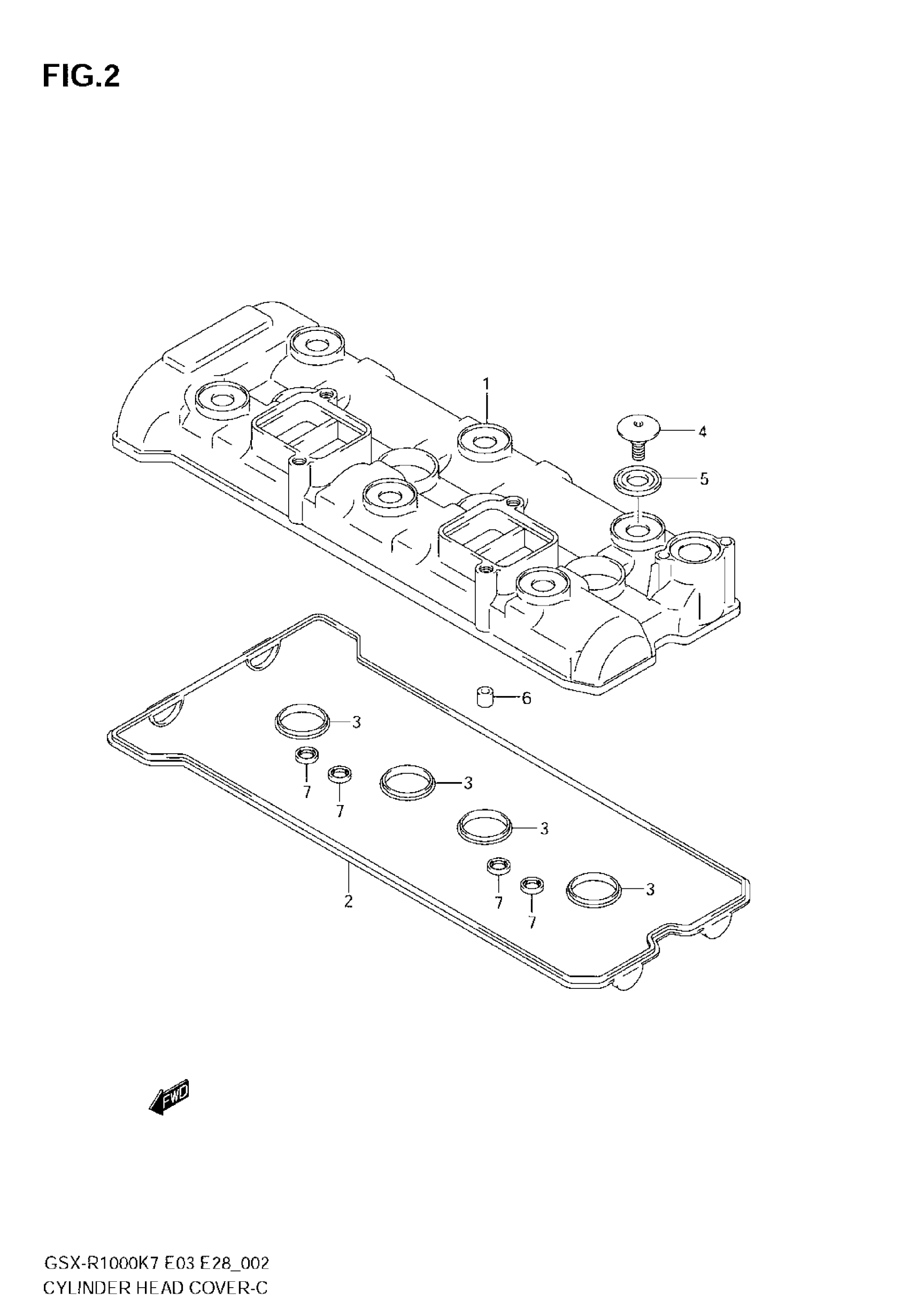

Suzuki GSX-R1000 (2008) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-35F10

Unavailable

2

GASKET, HEAD COVER NO.1

11173-35F00

$45.38

3

GASKET, HEAD COVER NO.2

11178-33E00

$5.67

4

BOLT (7X17.5)

09106-07021

$4.07

5

WASHER

11191-27E00

$3.72

6

PIN (8.2X10X13)

09206-10016

$7.36

7

GASKET, 2ND AIR PASSAGE

11182-35F10

$4.11
