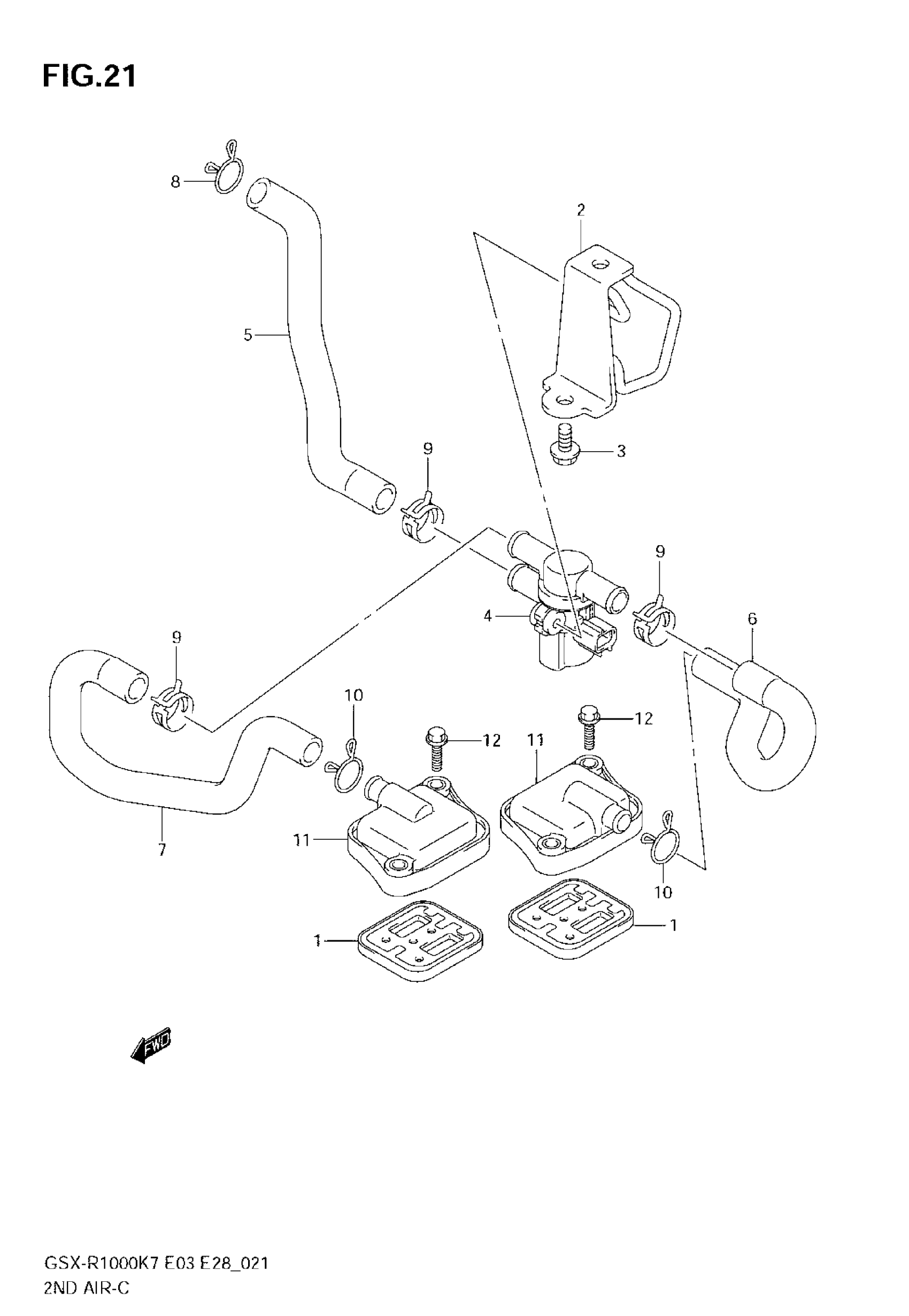

Suzuki GSX-R1000 (2008) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED

18450-35F11

$112.45

2

BRACKET, 2ND AIR VALVE

18610-21H00

Unavailable

3

BOLT

01550-0612A

$1.97

4

VALVE ASSY,AIR This part replaces 18510-29G00.

18510-29G01

$111.50

5

HOSE, 2ND AIR CLEANER

18711-21H00

Unavailable

6

HOSE, 2ND AIR VALVE, L

18461-21H00

Unavailable

7

HOSE, 2ND AIR VALVE, R

18471-21H00

Unavailable

8

CLIP

09401-17201

$3.42

9

CLIP

09401-17401

$1.01

10

CLIP This part replaces 09401-18301.

09401-18304-A05

$3.08

11

COVER, 2ND AIR REED VALVE

18531-35F20

Unavailable

12

BOLT

09103-06201

$2.54
