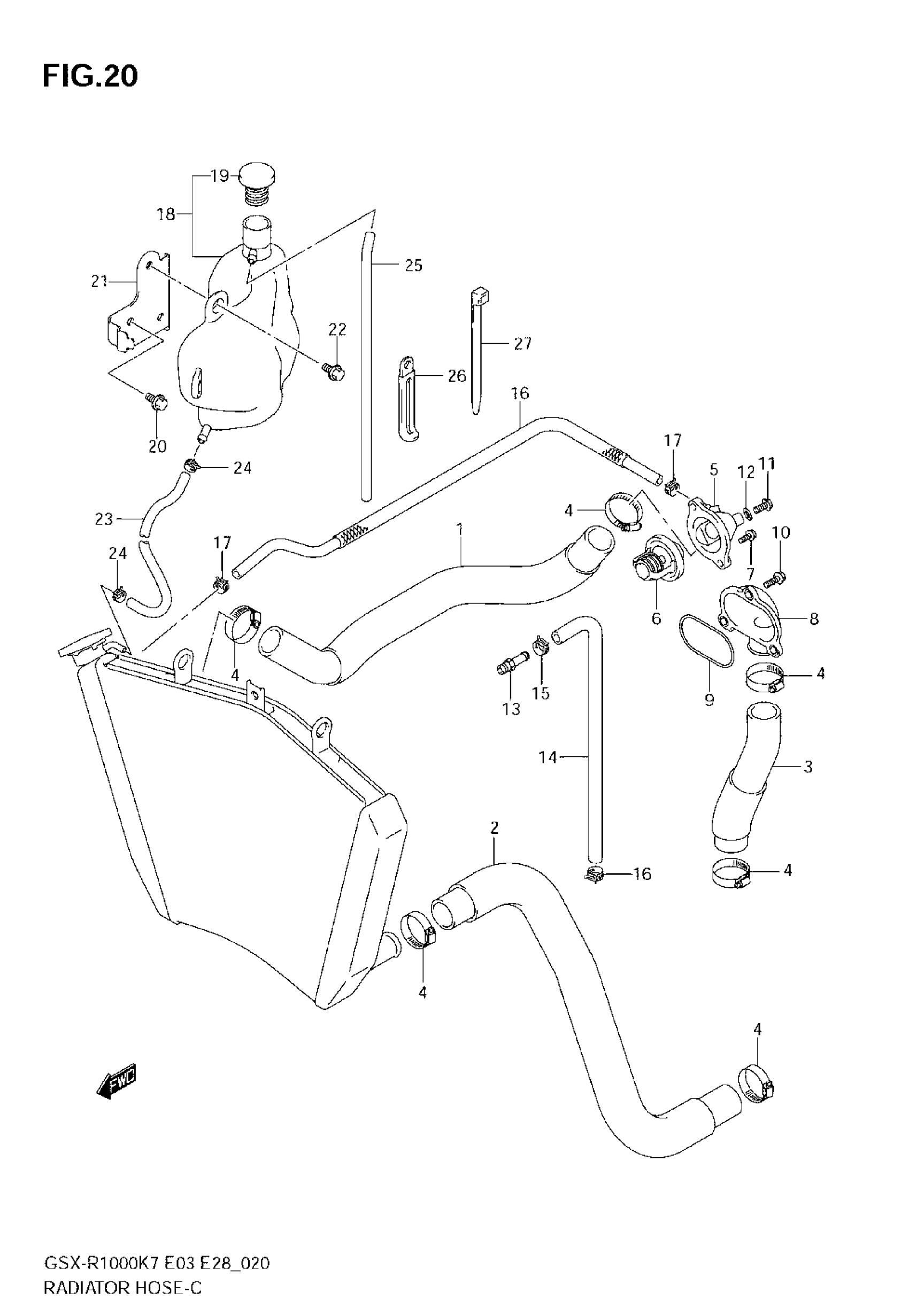

Suzuki GSX-R1000 (2008) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-41G00

$65.10

2

HOSE, RADIATOR OUTLET

17852-41G00

$53.48

3

HOSE, CYLINDER INLET

17853-40F10

$22.99

4

CLAMP

09402-38512

$11.11

5

COVER, THERMOSTAT

17661-35F00

$57.22

6

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$24.64

7

BOLT

01547-0620A

$2.10

8

CONNECTOR, CYLINDER JOINT

17861-33E20

$21.58

9

O RING

17863-33E00

$3.86

10

BOLT

01547-0620A

$2.10

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$6.32

12

GASKET (6.4X11.5X0.8)

09168-06026

$2.88

13

UNION, BYPASS

09362-09011

$7.84

14

HOSE, WATER BYPASS

17854-41G00

$27.03

15

CLIP This part replaces 09401-12409.

09401-12414

$3.09

16

HOSE, WATER AIR BLEED

17857-21H00

$27.67

17

CLIP (ID:10.5,H:8)

09401-10409

$2.37

18

TANK ASSY, RESERVOIR | Includes Item(s) 19

17910-21H00

$85.65

19

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

20

BOLT

09111-06085

$4.28

21

BRACKET, TANK

17920-21H00

$10.62

22

BOLT

01550-0612A

$2.01

23

HOSE, RESERVOIR TANK INLET

17981-21H00

$38.53

24

CLIP

09401-08411

$1.82

25

HOSE, OVER FLOW | L:2000!550

09352-50901-00B

$34.43

26

CLAMP

09404-06429

$1.88

27

CLAMP

09407-11401

$2.87
