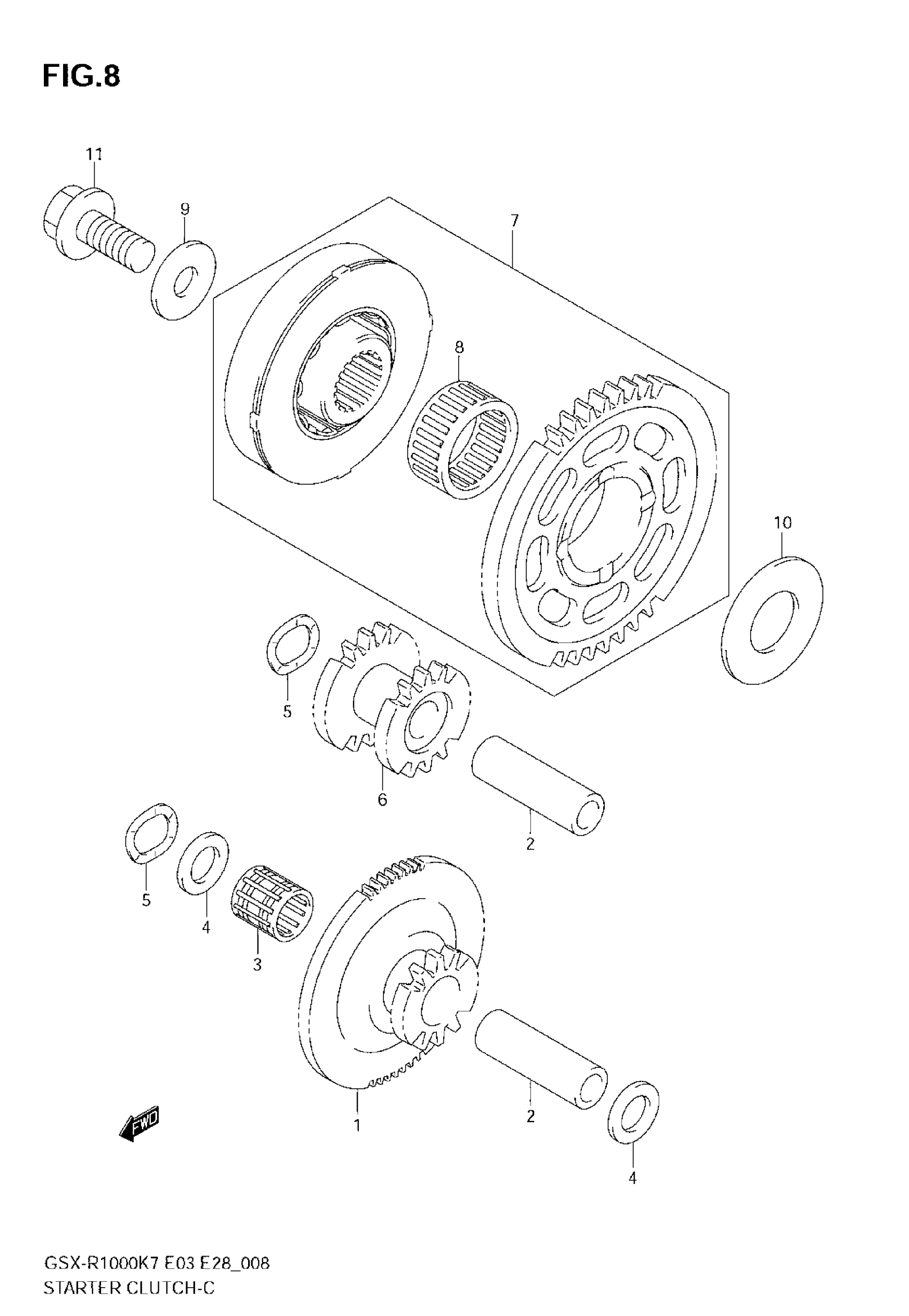

Suzuki GSX-R1000 (2008) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-40F00

$119.75

2

PIN

12151-09204

$9.73

3

BEARING

09263-12023

$9.47

4

WASHER, STARTER IDLE NO.1

09181-12167

$2.31

5

WASHER

09164-12021

$2.09

6

GEAR, STARTER IDLE NO.2

12612-40F00

$85.42

7

CLUTCH SET, STARTER | Includes Item(s) 8

12600-40831

$421.02

8

BEARING

09263-26035

$77.93

9

WASHER

08211-10285

$3.32

10

WASHER

08211-20403

$4.09

11

BOLT (10X23)

09103-10189

$3.83
