2008 Suzuki GSX-R1000 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

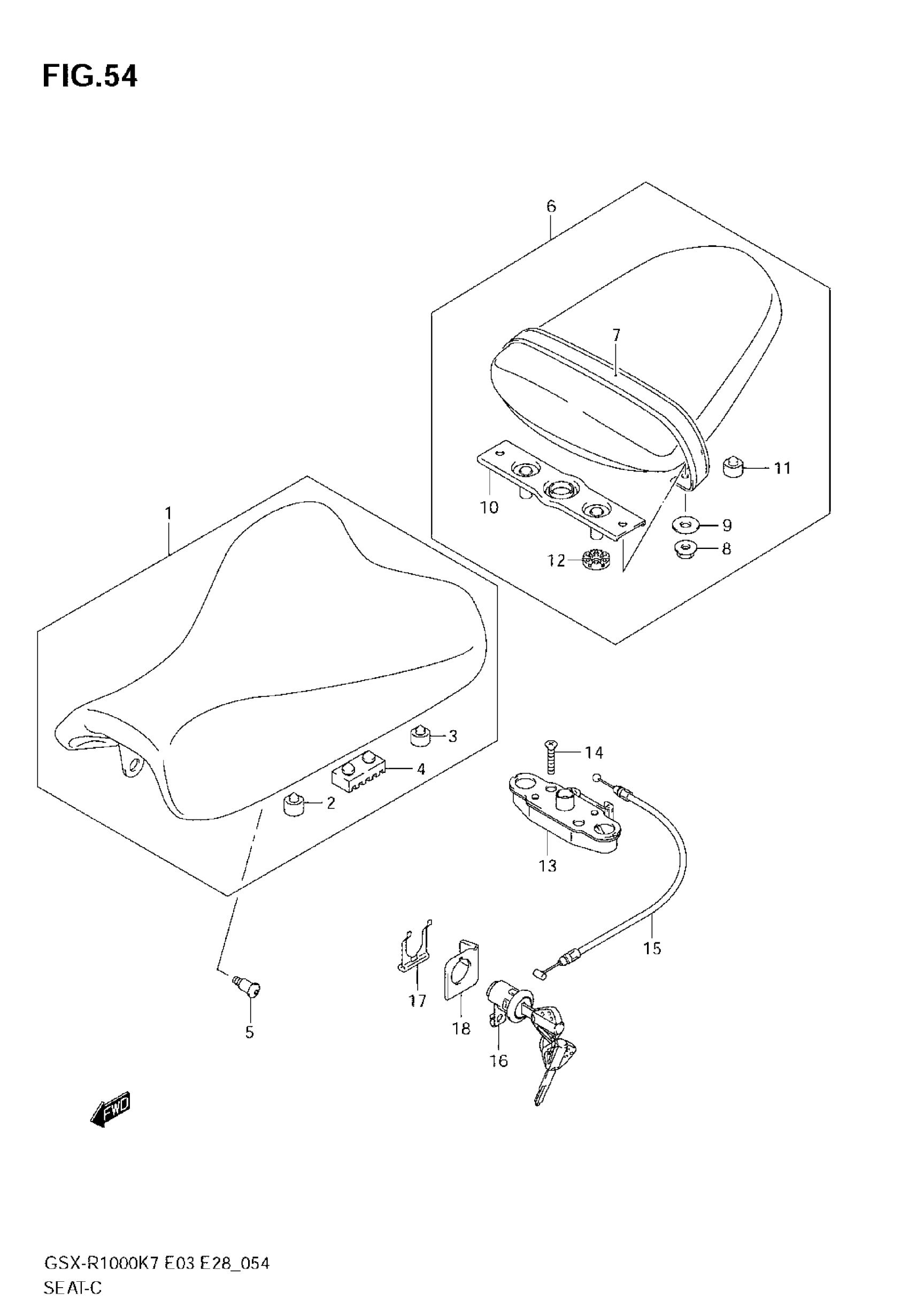

2008 Suzuki GSX-R1000 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | Includes Item(s) 2 - 4 This part replaces 45100-21H00-6BY.

45100-21H01-6BY

1
Out of stock

2

CUSHION, FRONT

09321-10039

2
Out of stock

3

CUSHION

09321-10011

2
Out of stock

4

CUSHION

45149-19D00

2
Out of stock

5

SCREW, SEAT

09139-06146

2

$2.92

In stock

6

SEAT ASSY,PILLI | Includes Item(s) 7 - 12 This part replaces 45300-21H00-6BY.

45300-21H01-6BY

1
Out of stock

7

BAND ASSY, SEAT

45180-21H00

1
Out of stock

8

NUT

08319-3106A

2
Out of stock

9

WASHER

09160-06066

2
Out of stock

10

STRIKER,SEAT LO This part replaces 45290-18G00.

45290-18G01

1
Out of stock

11

CUSHION

09321-10011

2
Out of stock

12

CUSHION

45213-31300

2
Out of stock

13

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

14

SCREW, REAR

02122-0630A

2
Out of stock

15

CABLE, SEAT LOCK

45280-13A01

1
Out of stock

16

LOCK SET, SEAT

95700-14810

1
Out of stock

17

PLATE, SEAT LOCK ASSY

45289-11F00

1
Out of stock

18

GUIDE, SEAT LOCK CABLE

45288-14F00

1
Out of stock
