2008 Suzuki GSX-R1000 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

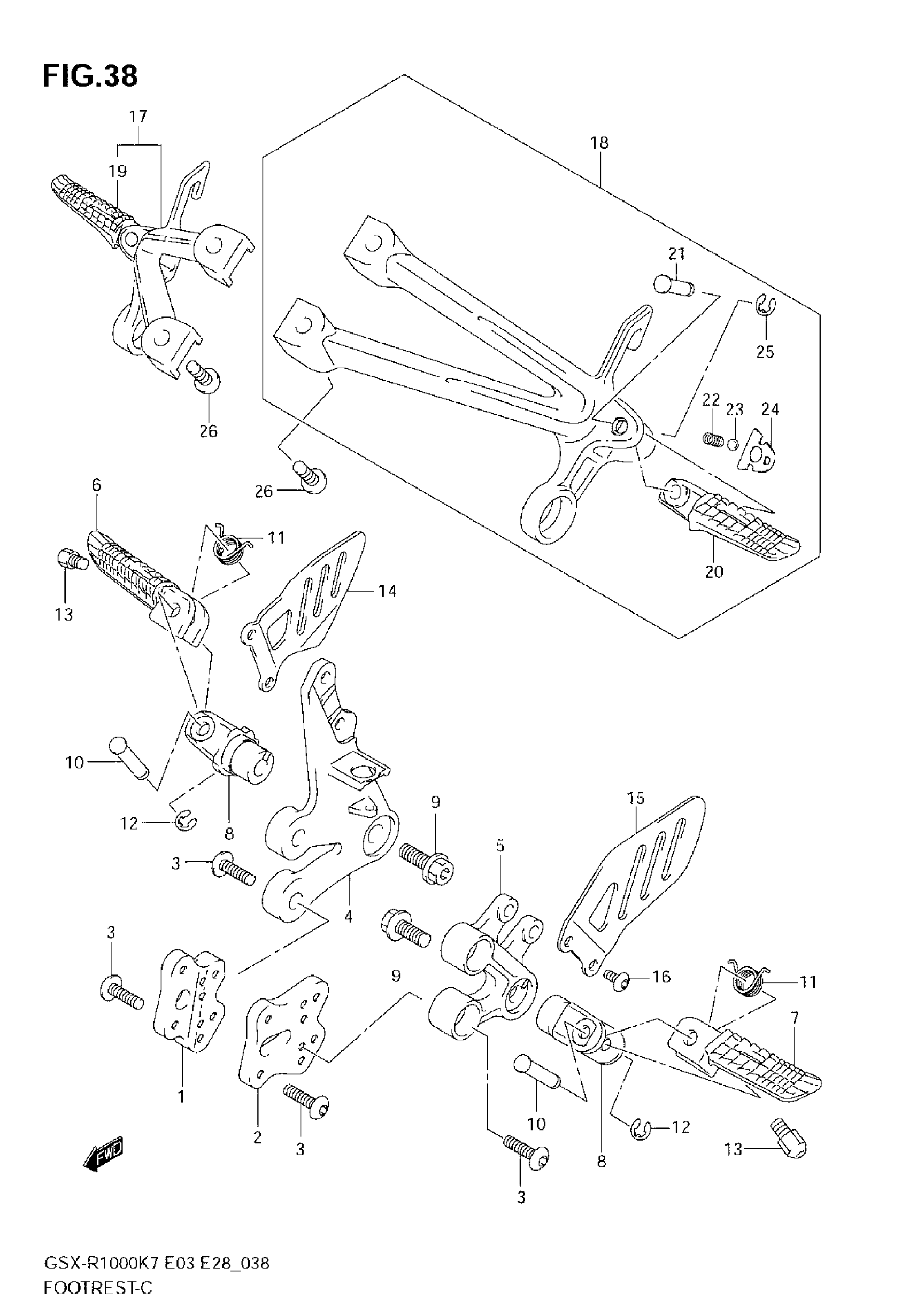

2008 Suzuki GSX-R1000 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT NO.1 RH

43541-21H00

1
Out of stock

2

1

$156.15

In stock

3

BOLT

09106-08181

8
Out of stock

4

BRACKET, FRONT NO.2 RH

43511-21H00

1
Out of stock

5

BRACKET, FRONT NO.2 LH

43521-41G10

1
Out of stock

6

BAR, FOOTREST RH

43516-41G00

1
Out of stock

7

BAR, FOOTREST LH

43526-41G00

1
Out of stock

8

HOLDER, FOOTREST This part replaces 43531-41G00.

43531-41G10

1
Out of stock

9

BOLT, RH

09106-10064

1
Out of stock

10

PIN

09208-08010

2
Out of stock

11

SPRING

09448-14037

2
Out of stock

12

E RING

08332-1106A

2
Out of stock

13

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

14

1

$75.56

In stock

15

1

$71.55

In stock

17

1

$321.47

In stock

18

1

$321.47

In stock

19

BAR, RH

43611-41G00

1

$72.20

In stock

20

BAR, LH

43621-41G00

1

$72.20

In stock

21

PIN

09208-08011

2
Out of stock

22

SPRING

09440-05005

2
Out of stock

23

BALL

06111-07004

2
Out of stock

24

2

$6.63

In stock

25

E RING

08332-1106A

2
Out of stock

26

BOLT

09106-08181

4
Out of stock
