2008 Suzuki GSX-R1000 Frame Side Cover Diagram

← All diagrams

Find the part on the Frame Side Cover diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

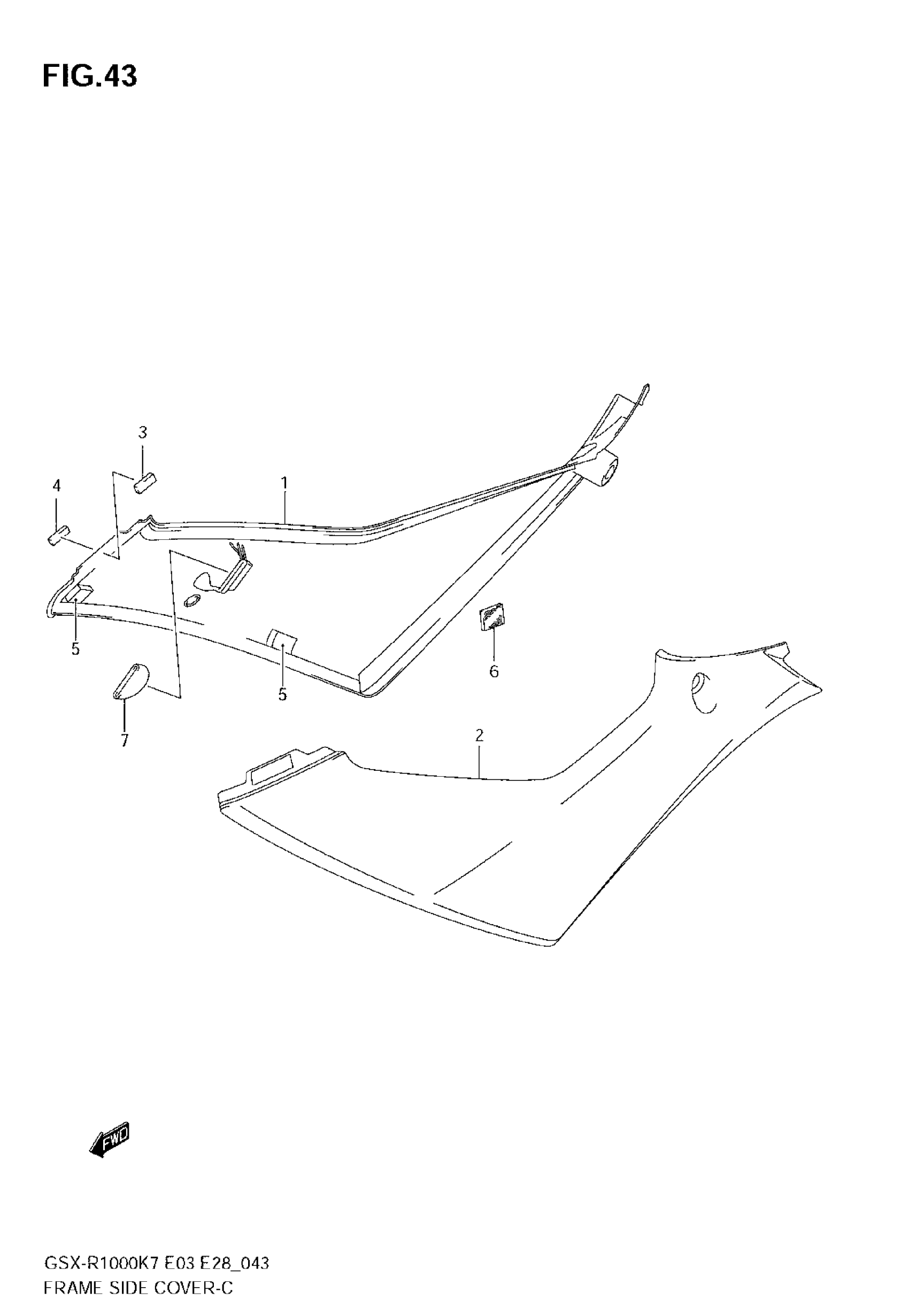

2008 Suzuki GSX-R1000 Frame Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE RH (BLACK)

47410-21H00-291

1
Out of stock

2

COVER, SIDE LH (BLACK) | Includes Item(s) 3 - 6

47510-21H00-291

1
Out of stock

3

CUSHION (10X30X2)

44894-24A00

2
Out of stock

4

PROTECTOR

94461-08C00

2
Out of stock

5

CUSHION, LOWER

33652-20C00

2
Out of stock

6

FASTENER

44572-13G00

2
Out of stock

7

CUSHION

09321-10037

2
Out of stock
