2008 Suzuki GSX-R1000 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

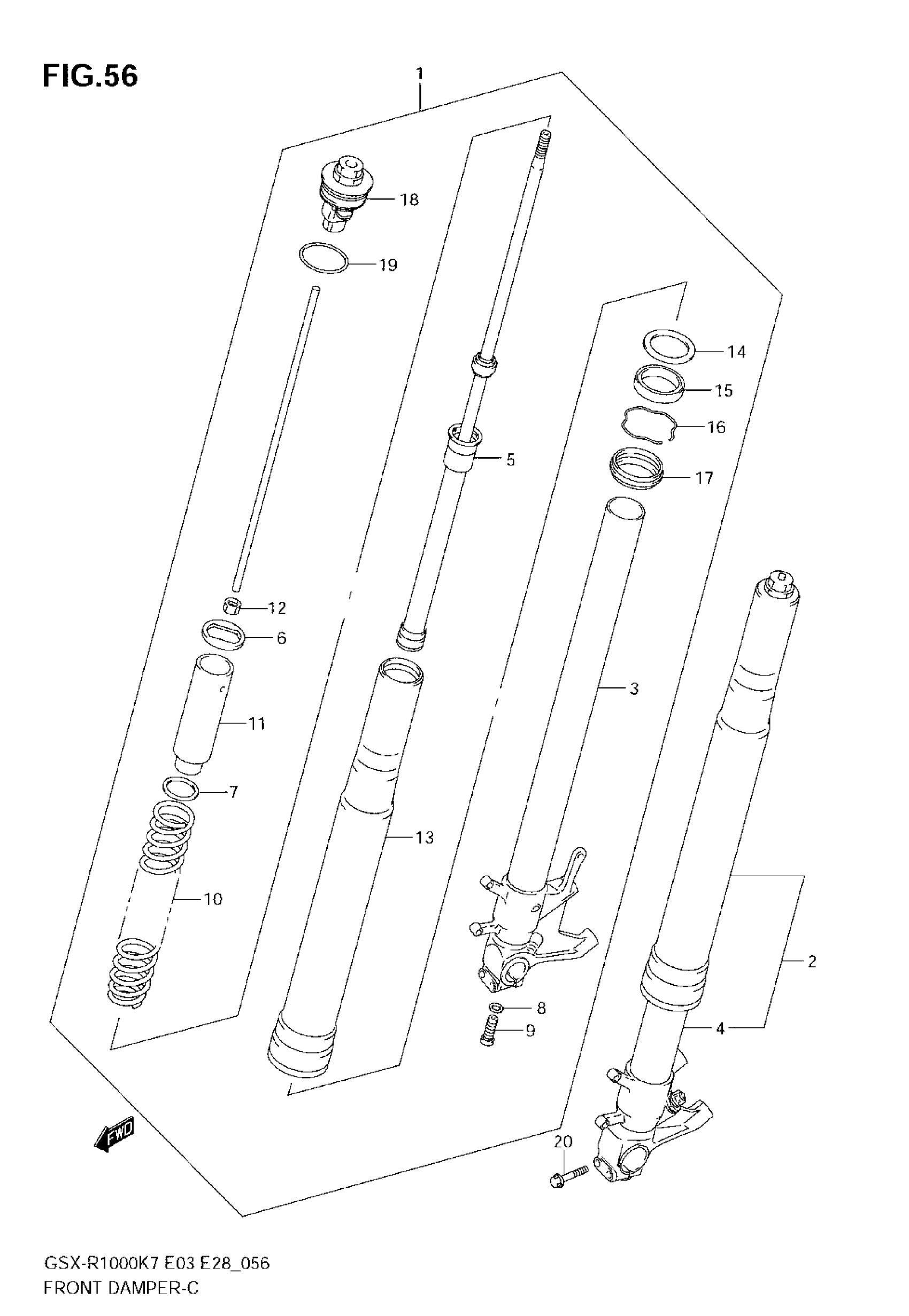

2008 Suzuki GSX-R1000 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-21H00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 19

51104-21H00

1
Out of stock

3

TUBE,INNER,R This part replaces 51110-21H00.

51110-21H01

1
Out of stock

4

TUBE, INNER LH

51120-21H00

1
Out of stock

5

CYLINDER

51146-21H00

2
Out of stock

6

WASHER, SPACER

51158-40F30

2
Out of stock

7

WASHER

51158-41G00

2
Out of stock

8

GASKET

51148-41310

2
Out of stock

9

BOLT

51147-05H00

2
Out of stock

10

SPRING

51171-21H00

2
Out of stock

11

SPACER, SPRING

51176-21H00

2

$30.92

In stock

12

NUT

51129-21H00

2
Out of stock

13

TUBE, OUTER

51130-21H00

2
Out of stock

14

SPACER, SEAL

51158-14200

2
Out of stock

15

SEAL, OIL

51153-41G00

2
Out of stock

16

RING, STOPPER

51156-14200

2
Out of stock

17

SEAL, DUST

51173-41G00

2
Out of stock

18

BOLT, FORK

51351-21H00

2
Out of stock

19

..O RING

62278-14100

2
Out of stock

20

BOLT

51166-24F50

4
Out of stock
