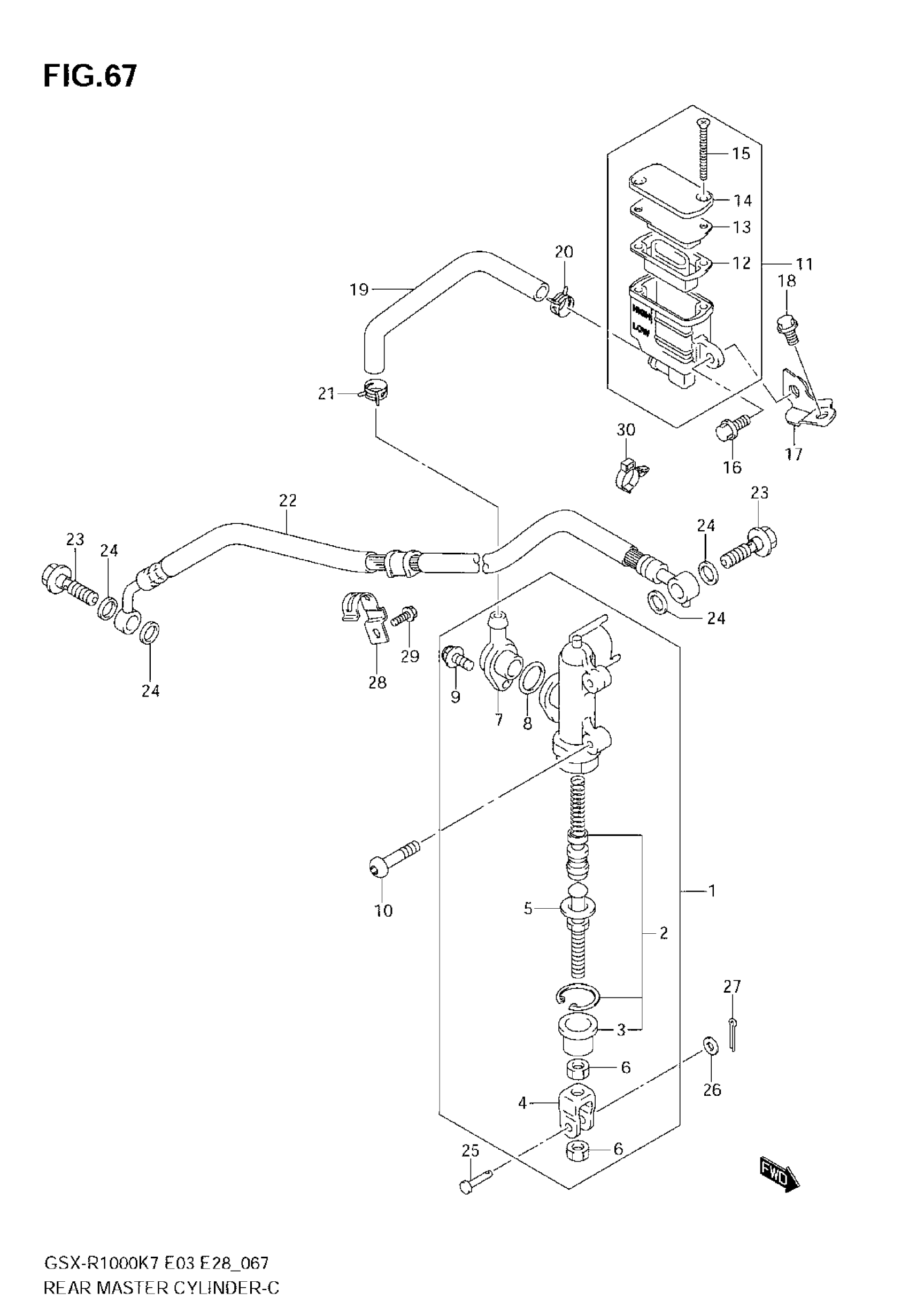

Suzuki GSX-R1000 (2008) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-16G00

$215.02

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-27A30

$13.02

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.23

8

O RING

69686-34200

$2.80

9

SCREW

02112-7412A

$2.67

10

BOLT

09139-06125

$2.80

11

TANK ASSY,RESERVOIR | Includes Item(s) 12 - 15 This part replaces 69740-01H00.

69740-18K00

$25.72

12

DIAPHRAGM

69667-01H00

$7.12

13

PLATE, DIAPHRAGM

69668-01H00

$6.75

14

CAP

69669-01H00

Unavailable

15

SCREW

69689-01H00

$5.02

16

BOLT

01547-0612A

$2.01

17

BRACKET, RR RESERVOIR TANK

69750-21H00

Unavailable

18

BOLT

01547-0612A

$2.01

19

HOSE, RESERVOIR TANK

69731-21H00

Unavailable

20

CLAMP

09401-12404

$2.37

21

CLAMP

09401-13417

$2.24

22

HOSE,RR BRAKE This part replaces 69480-21H00.

69480-21H01

$124.47

23

BOLT (10X1.25X22)

09360-10062

$5.81

24

WASHER (10X15X1.5)

09161-10009

$1.83

25

PIN

09200-06068

$3.71

26

WASHER

08322-0106A

$1.83

27

PIN, COTTER

04111-2015A

$1.22

28

CLAMP,RR BRAKE HOSE

69268-21H00

$8.73

29

BOLT

01547-0612A

$2.01

30

GUIDE, RR BRAKE HOSE NO.2

09403-17306

$2.64
