2008 Suzuki GSX-R1000 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2008 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

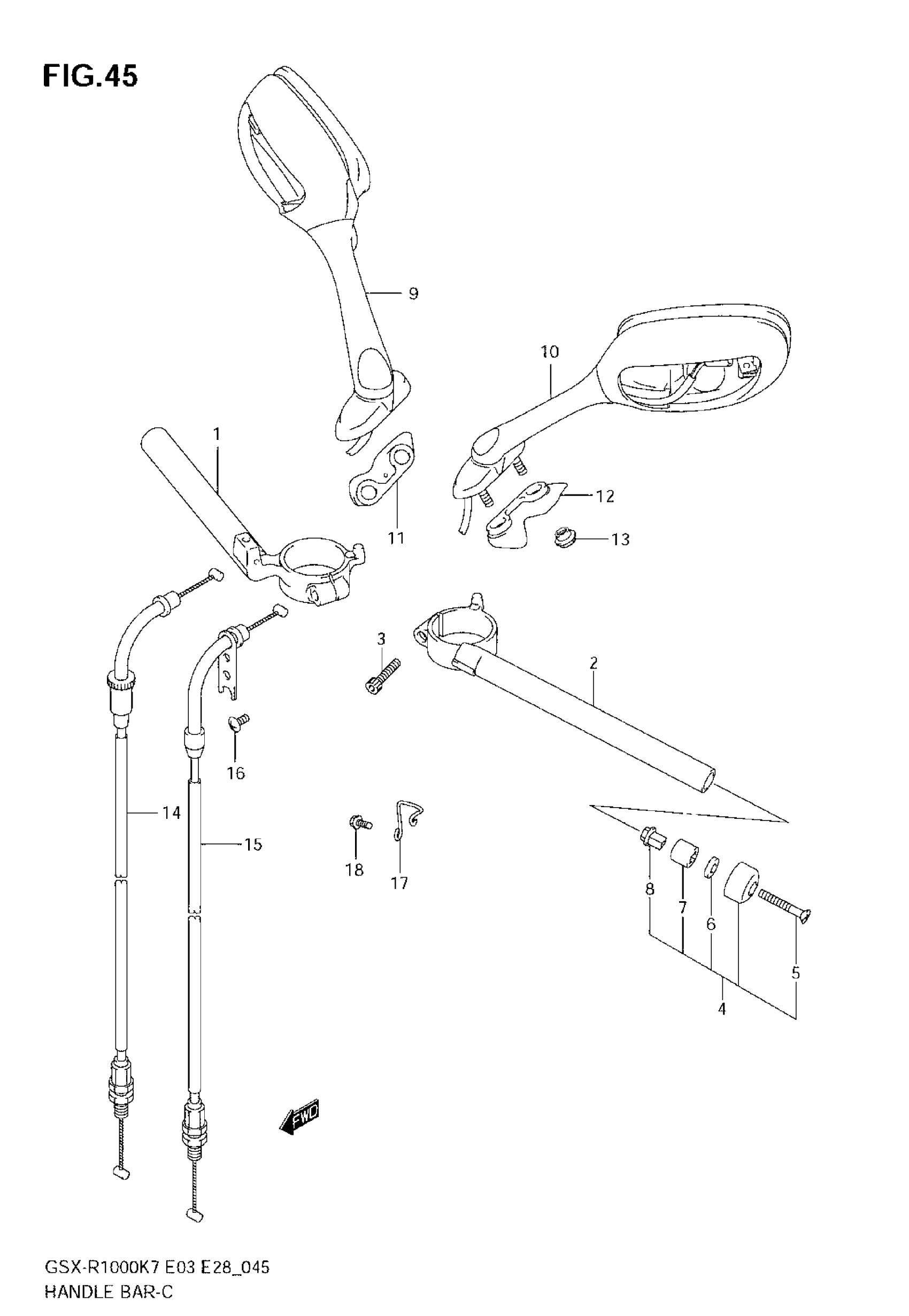

2008 Suzuki GSX-R1000 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56111-21H00

1
Out of stock

2

HANDLEBAR, LH

56151-21H00

1
Out of stock

3

BOLT

09106-08170

2
Out of stock

4

BALANCER SET,HANDLEBAR | Includes Item(s) 5 - 8 This part replaces 56200-41821.

56200-41823

2
Out of stock

5

SCREW

02122-0640B

2
Out of stock

6

WASHER

09160-06131

2
Out of stock

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

8

NUT

56273-10G10

2
Out of stock

9

MIRROR ASSY, REAR VIEW RH This part replaces 56500-41G20.

56500-41G21

1
Out of stock

10

MIRROR ASSY, REAR VIEW LH This part replaces 56600-41G20.

56600-41G21

1
Out of stock

11

CUSHION, RH

94575-21H00

1
Out of stock

12

CUSHION, LH

94576-21H00

1
Out of stock

13

NUT,RR VIEW MIRROR

56619-41G01

4
Out of stock

14

CABLE ASSY, THROTTLE NO.1

58300-21H00

1
Out of stock

15

CABLE ASSY, THROTTLE NO.2

58300-21H10

1
Out of stock

16

SCREW This part replaces 02142-0510A.

02142-0510B

1
Out of stock

17

GUIDE, THROTTLE CABLE

58621-21H00

1
Out of stock

18

BOLTG

01547-0612A

1
Out of stock
