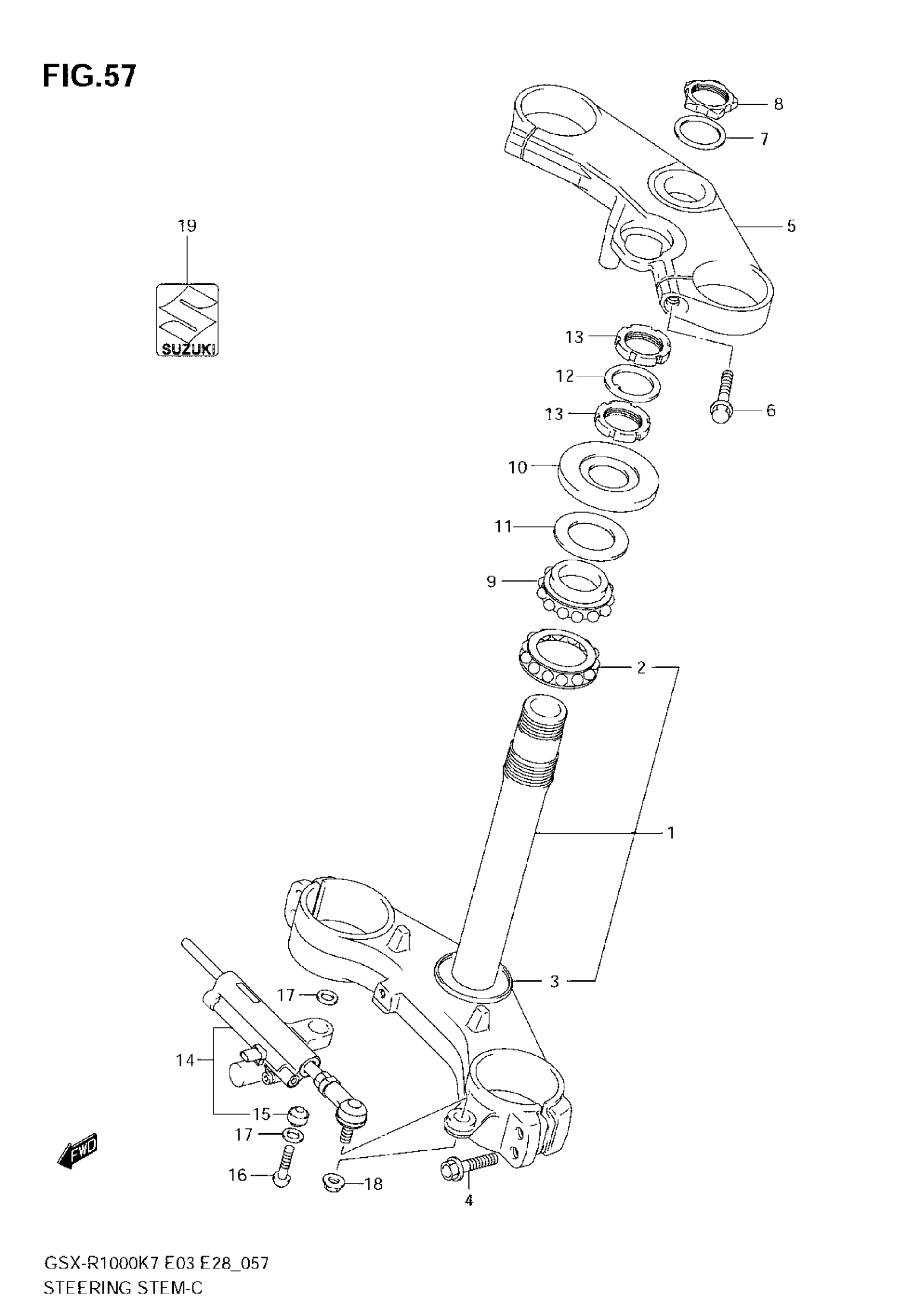

Suzuki GSX-R1000 (2008) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-21H00

Unavailable

2

BEARING (30X55X17)

09267-30010

$43.41

3

SEAL, STEM LOWER

51644-12C00

$8.65

4

BOLT

51381-48E10

$7.81

5

HEAD, STEERING STEM

51311-21H00

Unavailable

6

BOLT This part replaces 51328-21H00.

51328-21H10

$10.15

7

WASHER

51356-21H00

$7.67

8

NUT

51353-40F30

$51.20

9

BEARING (30X55X17)

09267-30010

$43.41

10

SEAL, STEM UPPER DUST

51643-41G00

$8.20

11

SEAL, UPPER DUST

51644-12C00

$8.65

12

WASHER, STEM

51641-33E00

$5.67

13

NUT, STEM

51631-33E00

$21.64

14

DAMPER ASSY, STEERING | Includes Item(s) 15

51750-21H00

$1,629.73

15

BEARING (8X17.5X11)

09269-08003

$46.80

16

BOLT

09106-08130

$4.07

17

SEAL, DUST

64339-14101

$7.49

18

NUT

08319-3108A

$2.31

19

EMBLEM, "S"

68281-35F00

$15.48
