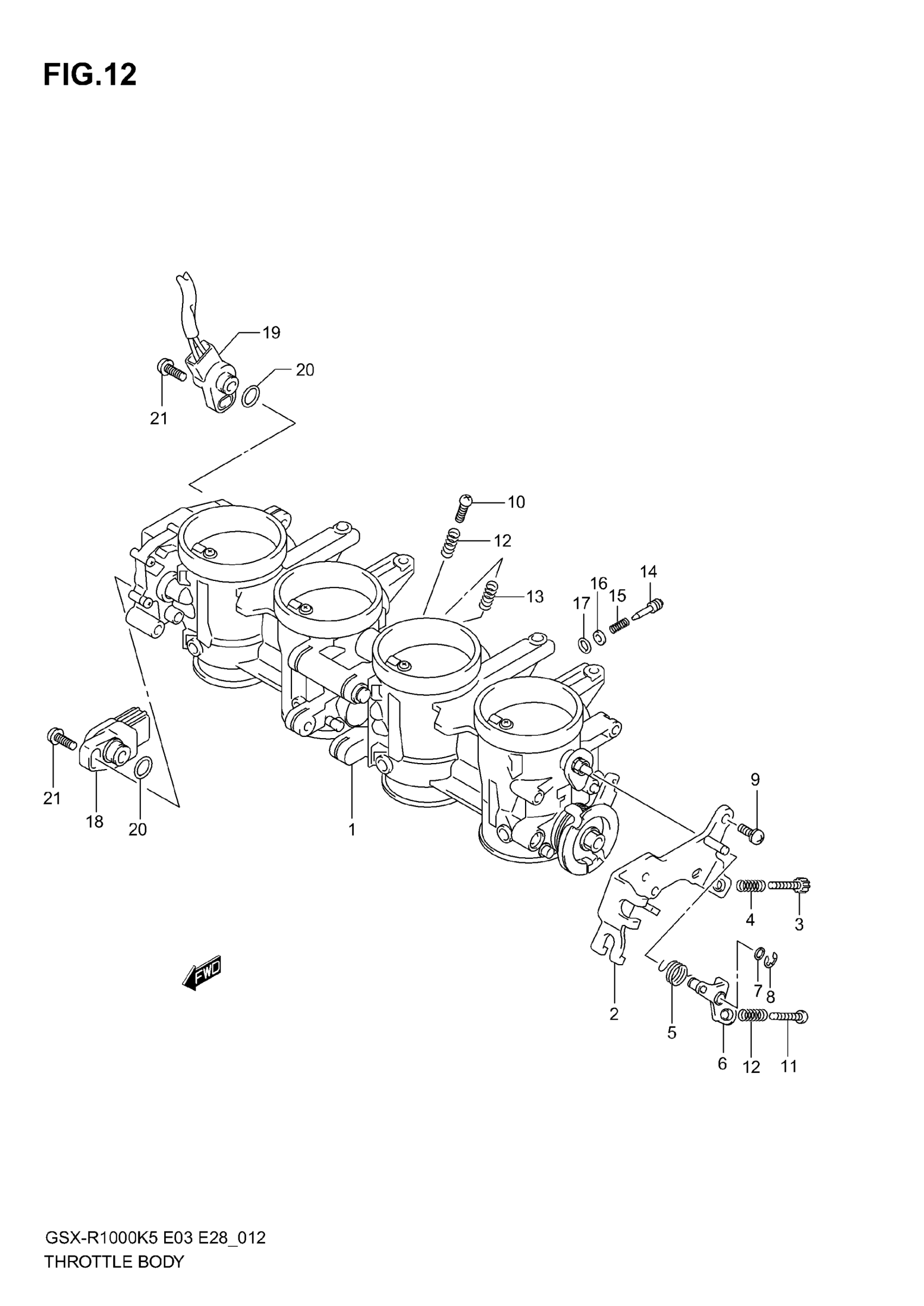

Suzuki GSX-R1000 (2006) THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY | E3,E28

13405-41G00

Unavailable

1

THROTTLE BODY | E33

13405-41G10

Unavailable

2

PLATE, STAY

13565-41G00

Unavailable

3

SCREW, STOP

13267-35F00

$35.23

4

SPRING

13268-35F00

$5.17

5

SPRING

13426-35F10

Unavailable

6

LEVER, LINK

13413-41G00

Unavailable

7

WASHER

13427-35F10

Unavailable

8

E CLIP

13424-35F10

$4.28

9

SCREW

15153-24F00

$2.80

10

SCREW, STOP

13423-35F00

$9.60

11

STOP SCREW

13602-10F20

Unavailable

12

SPRING

13543-24F00

Unavailable

13

SPRING

13268-03F50

Unavailable

14

SCREW, AIR ADJUST

13269-18G00

$13.35

15

SPRING, AIR SCREW

13271-43E00

Unavailable

16

WASHER

13291-26E00

$2.80

17

O RING

13295-26E00

$3.97

18

SENSOR ASSY, THROTTLE MAIN

13580-18G00

$191.97

19

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

$197.79

20

O RING

13575-40F00

$3.85

21

SCREW

13605-40F00

$3.50
