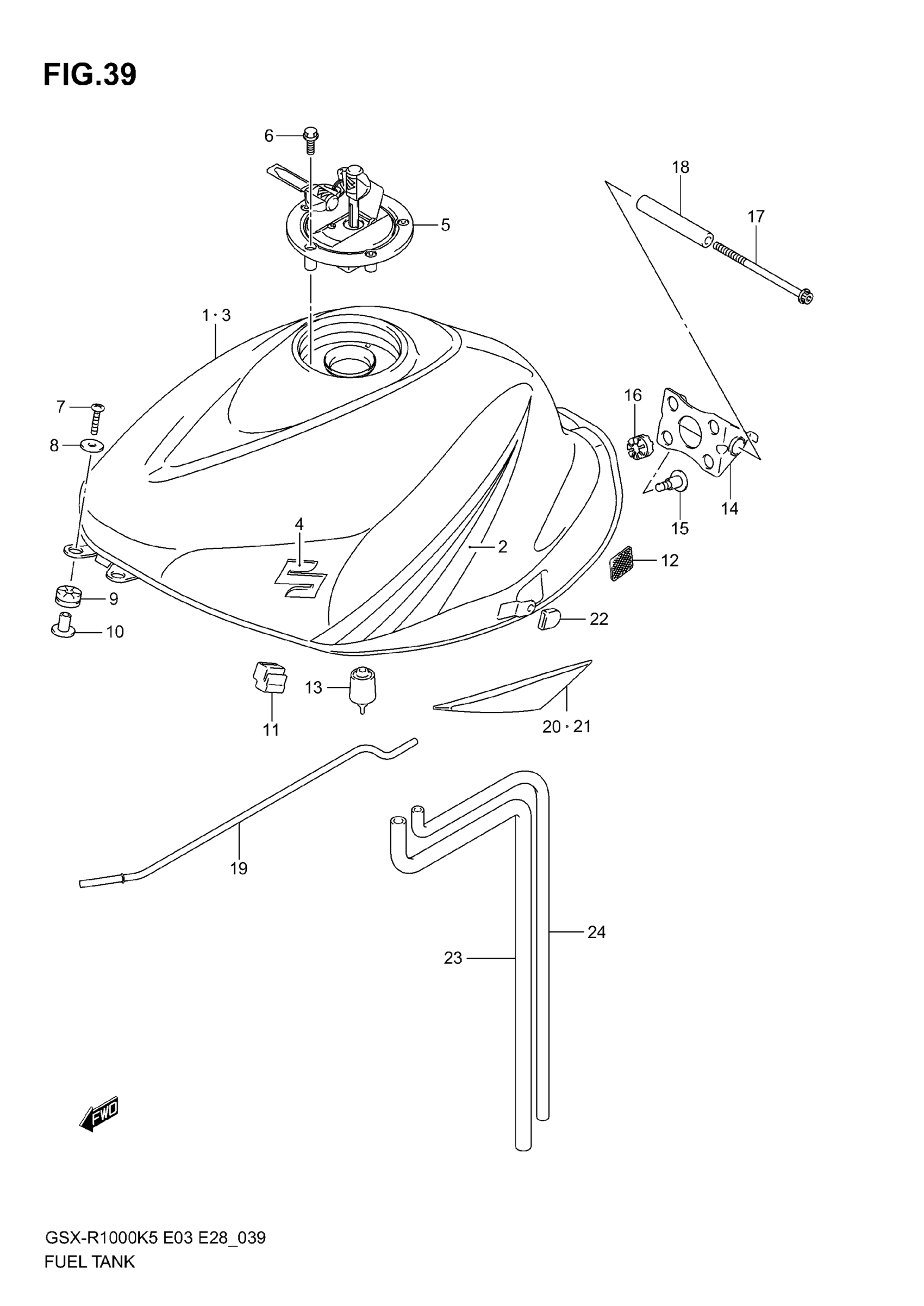

Suzuki GSX-R1000 (2006) FUEL TANK (MODEL K5) Diagram

TANK ASSY, FUEL (BLUE) | E3,E28 FOR LR5

44100-41G00-YBA

Unavailable

TANK ASSY,FUEL( | E3,E28 FOR ATG This part replaces 44100-41G00-019.

44110-41G00-13L

Unavailable

TANK ASSY,FUEL( | E3,E28 FOR CAD This part replaces 44100-41G00-1PX.

44110-41G00-13L

Unavailable

TANK ASSY,FUEL( | E33 FOR LR5 This part replaces 44100-41G20-YBA.

44110-41G20-13L

Unavailable

TANK ASSY, FUEL (BLACK) | E33 FOR ATG

44100-41G20-019

Unavailable

TANK ASSY, FUEL (BLACK) | E33 FOR CAD; Includes Item(s) 2 - 2

44100-41G20-1PX

Unavailable

TAPE SET | FOR YBA

68110-41G00-CCE

Unavailable

TAPE SET | FOR 019

68110-41G00-CCF

Unavailable

TAPE SET | FOR 1PX

68110-41G00-CCG

Unavailable

TANK ASSY, FUEL (BLACK) | E3,E28 FOR CDF

44100-41GA0-019

Unavailable

TANK ASSY, FUEL (BLACK) | E33 FOR CDF

44100-41GC0-019

Unavailable

EMBLEM

68111-18G20

$30.90

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$112.54

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$270.23

BOLT

09106-05017

$2.80

SCREW, FRONT

09139-06029

$4.99

WASHER

09160-06054

$1.66

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.94

SPACER

44512-16G00

$7.11

CUSHION, FUEL TANK SIDE

44541-41G00

$5.71

FASTENER

44572-13G00

$10.59

CUSHION,FUEL TANK RR

44542-41G00

$7.36

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$3.79

CUSHION

09320-08071

$3.16

BOLT, JOINT

09106-06103

$4.27

SPACER

44561-18G00

$16.22

STAY, FUEL TANK

44574-35F00

$14.51

COVER, FUEL TANK RH (BLACK)

44171-41G00-291

$45.53

COVER, FUEL TANK LH (BLACK)

44181-41G00-291

$45.53

CUSHION

09329-18001

$1.97

HOSE,TANK WATER This part replaces 44423-41G00.

44423-41G01

$16.55

HOSE,TANK BREAT This part replaces 44424-41G00.

44424-41G01

$18.24
