2006 Suzuki GSX-R1000 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2006 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

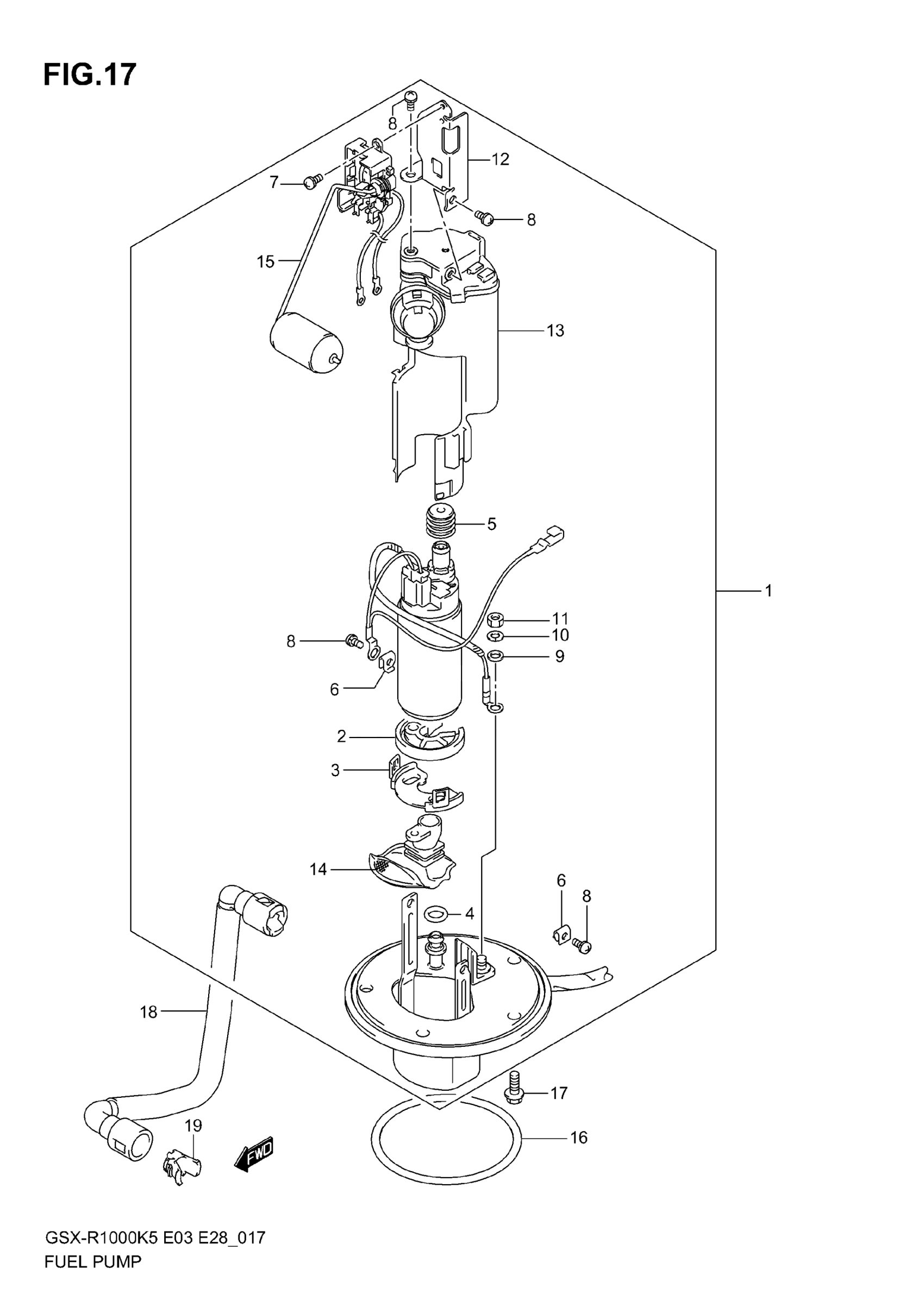

2006 Suzuki GSX-R1000 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,306.17

In stock

2

CUSHION, FUEL PUMP

15111-35F00

1

$9.49

In stock

3

HOLDER, FUEL PUMP

15112-42F00

1

$19.08

In stock

4

O RING

15113-35F00

1

$8.88

In stock

5

BUSH, FUEL PUMP

15114-35F00

1

$15.61

In stock

6

NUT

15115-35F00

2

$10.61

In stock

7

SCREW

15116-06G10

1

$8.13

In stock

8

SCREW

15116-35F10

4

$6.47

In stock

9

WASHER

15171-35F00

2

$8.13

In stock

10

SPRING WASHER

15172-35F00

2

$8.13

In stock

11

NUT

15173-35F00

2
Out of stock

12

BRACKET, FUEL GAUGE

15181-41G00

1
Out of stock

13

FILTER, FUEL

15410-41G00

1

$461.25

In stock

14

STRAINER, FUEL PUMP

15420-24FB0

1

$109.12

In stock

15

1

$235.87

In stock

16

O-RING

15201-35F00

1

$27.52

In stock

17

5

$3.00

In stock

18

1

$62.95

In stock

19

RETAINER

15815-35F00

2

$7.81

In stock
