2004 Suzuki GSX-R1000 Throttle Body Diagram

← All diagrams

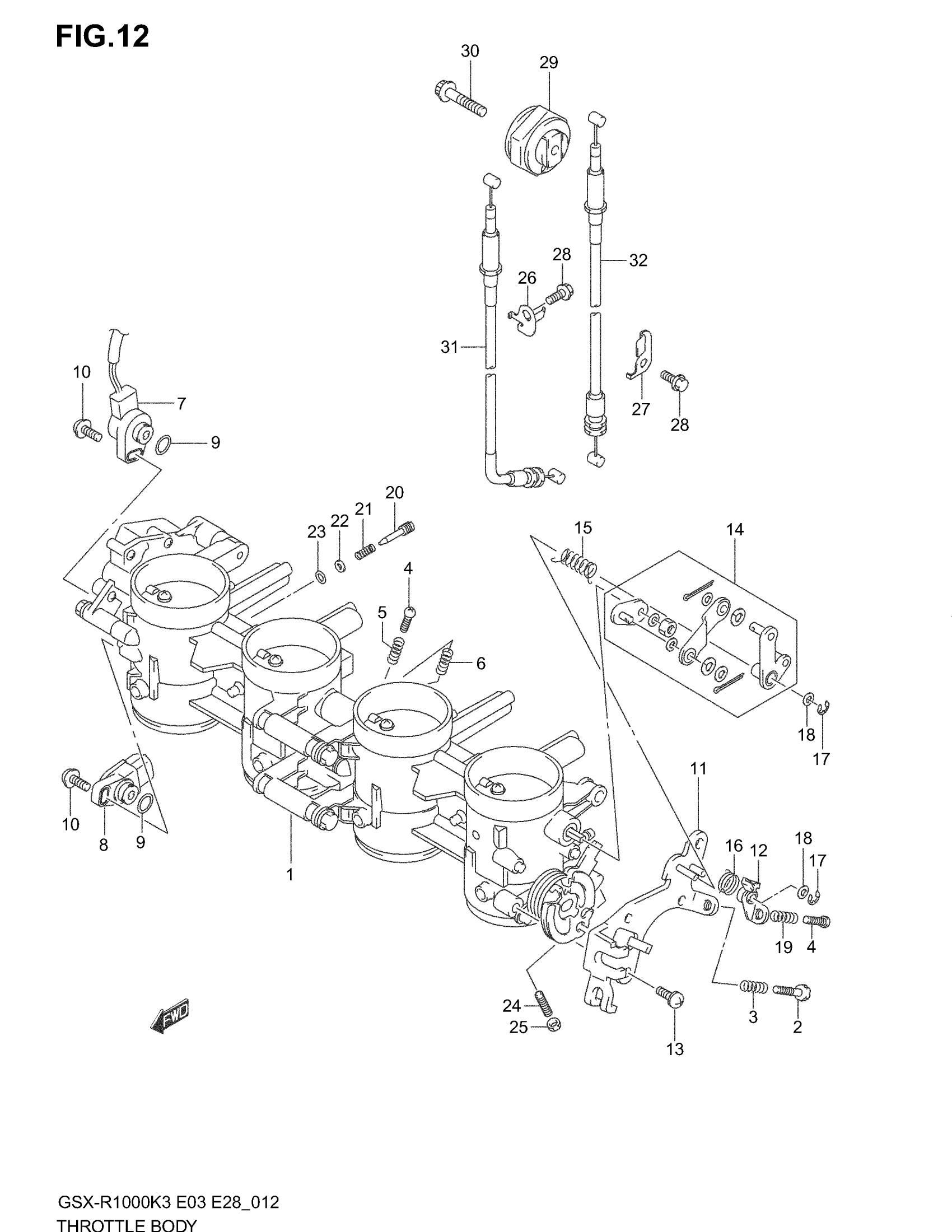

Find the part on the Throttle Body diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki GSX-R1000 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY | E3,E28

13405-40F40

1
Out of stock

1

THROTTLE BODY | E33

13405-40F50

1
Out of stock

2

SCREW, STOP

13267-35F00

1
Out of stock

3

SPRING

13268-35F00

1

$5.17

In stock

4

SCREW, STOP

13423-35F00

2

$9.60

In stock

5

SPRING

13543-24F00

1
Out of stock

6

SPRING

13268-03F50

1
Out of stock

8

SENSOR ASSY, MAIN

13580-18G00

1

$208.06

In stock

9

O RING

13575-40F00

2
Out of stock

10

SCREW

13605-40F00

2
Out of stock

11

PLATE, STAY

13565-18G00

1
Out of stock

12

LEVER, LINK

13414-40F00

1
Out of stock

13

SCREW

15153-24F00

2

$2.92

In stock

14

LEVER, LINK

13420-40F20

1
Out of stock

15

SPRING

13426-40F00

1
Out of stock

16

SPRING

13426-35F10

1
Out of stock

17

E CLIP

13424-35F10

2
Out of stock

18

WASHER

13427-35F10

2
Out of stock

19

SPRING

13271-26E10

1
Out of stock

20

SCREW, AIR ADJUSTMENT

13269-18G00

4

$13.35

In stock

21

SPRING

13271-43E00

4
Out of stock

22

WASHER

13291-26E00

4

$2.92

In stock

23

O RING

13295-26E00

4

$4.33

In stock

24

SCREW

13267-18G00

2
Out of stock

25

NUT

13661-10G00

2
Out of stock

26

BRACKET, EXHAUST VALVE CABLE

11258-18G00

1
Out of stock

27

1

$4.37

In stock

28

2

$1.31

In stock

29

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

1
Out of stock

30

1

$2.82

In stock

31

CABLE, EXHAUST VALVE OPEN

11276-18G00

1
Out of stock

32

CABLE, EXHAUST VALVE CLOSE

11277-18G00

1
Out of stock
