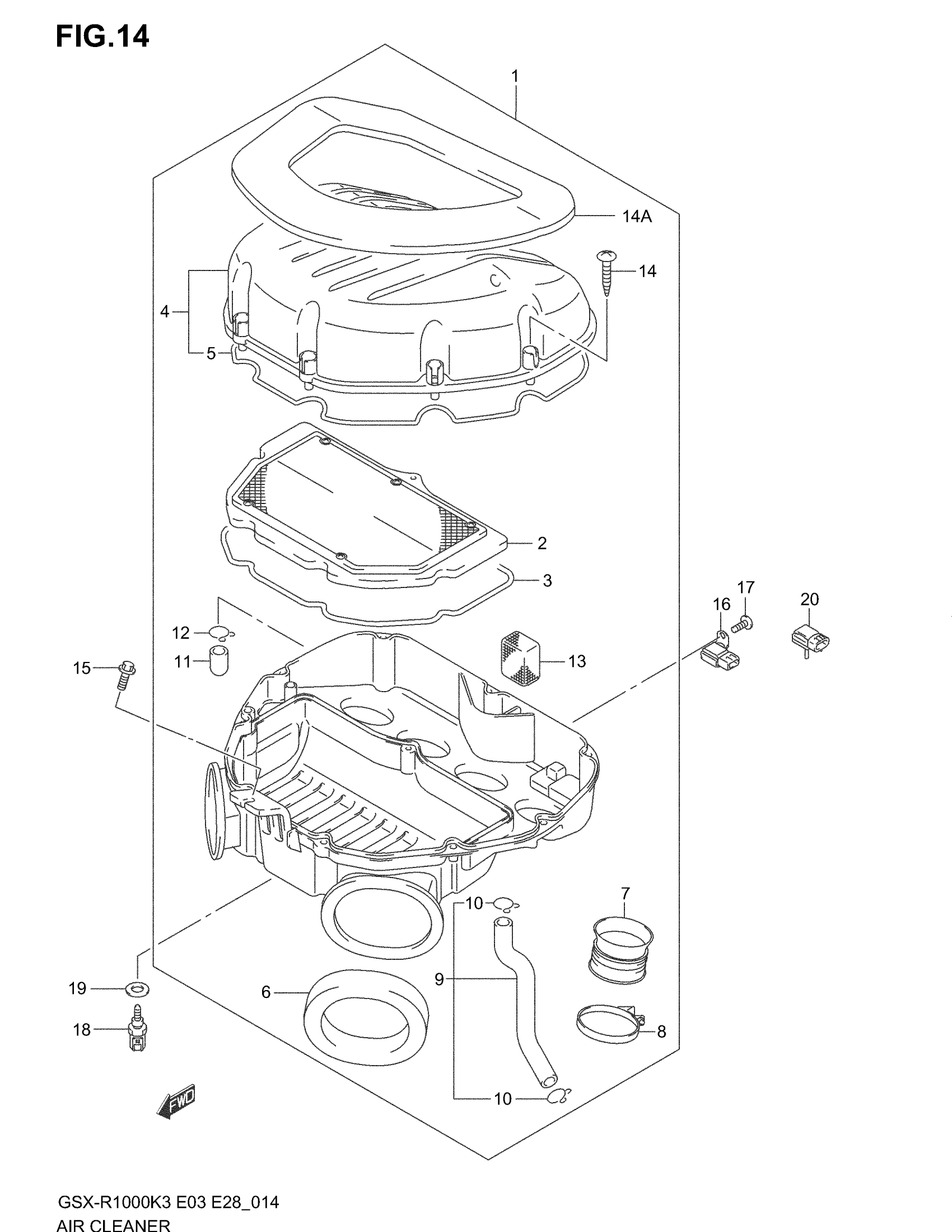

Suzuki GSX-R1000 (2004) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14A

13700-40F20

Unavailable

2

FILTER ASSY

13780-35F00

$34.10

3

GASKET, CASE

13756-35F00

$4.68

4

CAP, AIR CLEANER

13740-35F00

Unavailable

5

GASKET, CAP

13746-35F00

$8.58

6

.CUSHION, DUCT This part replaces 13736-24F01.

13736-01H00

$8.95

7

TUBE, OUTLET

13881-40F00

Unavailable

8

..CLAMP

09402-60208

$4.62

9

TUBE,BREATHER This part replaces 13850-35F00.

13850-35F01

Unavailable

10

CLIP

09401-14301

$2.17

11

.PLUG

13859-41B10

$6.94

12

CLIP

09401-14301

$2.17

13

FILTER, BREATHER

13788-24F00

$8.91

14

.SCREW

13831-35F00

$2.51

14A

NO DESCRIPTION AVAILABLE This part replaces 13748-40F20.

13749-40F21

Unavailable

15

BOLT

09116-06130

$2.19

16

SENSOR, BOOST

15620-35F00

Unavailable

17

SCREW This part replaces 03541-06103.

03541-0610B

$2.45

18

SENSOR, AIR TEMPERATURE

13650-61B00

$122.53

19

GASKET

09168-12017

$1.97

20

SENSOR, AIR PRESSURE

15620-10G00

$250.95
