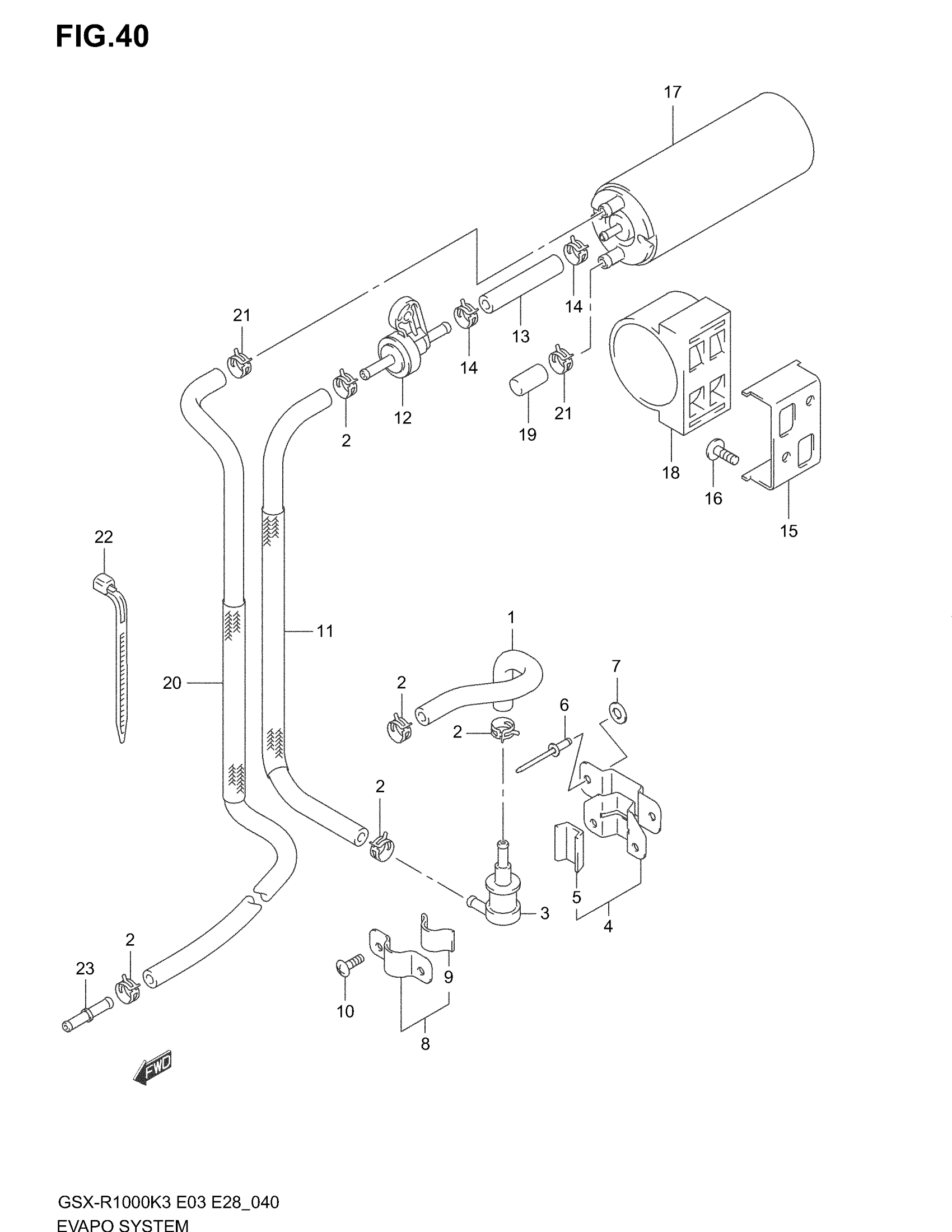

Find the part on the Evapo System diagram for your 2004 Suzuki GSX-R1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki GSX-R1000 Evapo System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & BREATHER VALVE

44434-18G00

1
Out of stock

2

CLIP

09401-11413

5
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

PLATE, BREATHER VALVE | Includes Item(s) 5

44890-18G00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

RIVET

09229-04038

2
Out of stock

7

WASHER This part replaces 08322-01043.

08322-0104A

2
Out of stock

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

1
Out of stock

9

CUSHION (10X30X2)

44894-24A00

1
Out of stock

10

2

$1.79

In stock

11

HOSE, VALVE & 2 WAY

44435-18G00

1
Out of stock

12

VALVE, 2 WAY

44240-24F00

1
Out of stock

13

HOSE | L:600!60

09355-54116-600

1
Out of stock

14

CLIP

09401-11413

2
Out of stock

15

BRACKET, CANISTER

44881-18G00

1
Out of stock

16

SCREW

09139-06030

2
Out of stock

17

CANISTER ASSY CHARCOAL

17210-26E00

1
Out of stock

18

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

1
Out of stock

19

CAP

09251-07003

1
Out of stock

20

HOSE, CANISTER PURGE

44436-18G00

1
Out of stock

21

CLIP

09401-12404

2
Out of stock

22

CLAMP This part replaces 09407-14408.

09407-17402

1
Out of stock

23

JOINT, PURGE HOSE

09364-06005

1
Out of stock
