1999 Suzuki GSF600S-Bandit Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

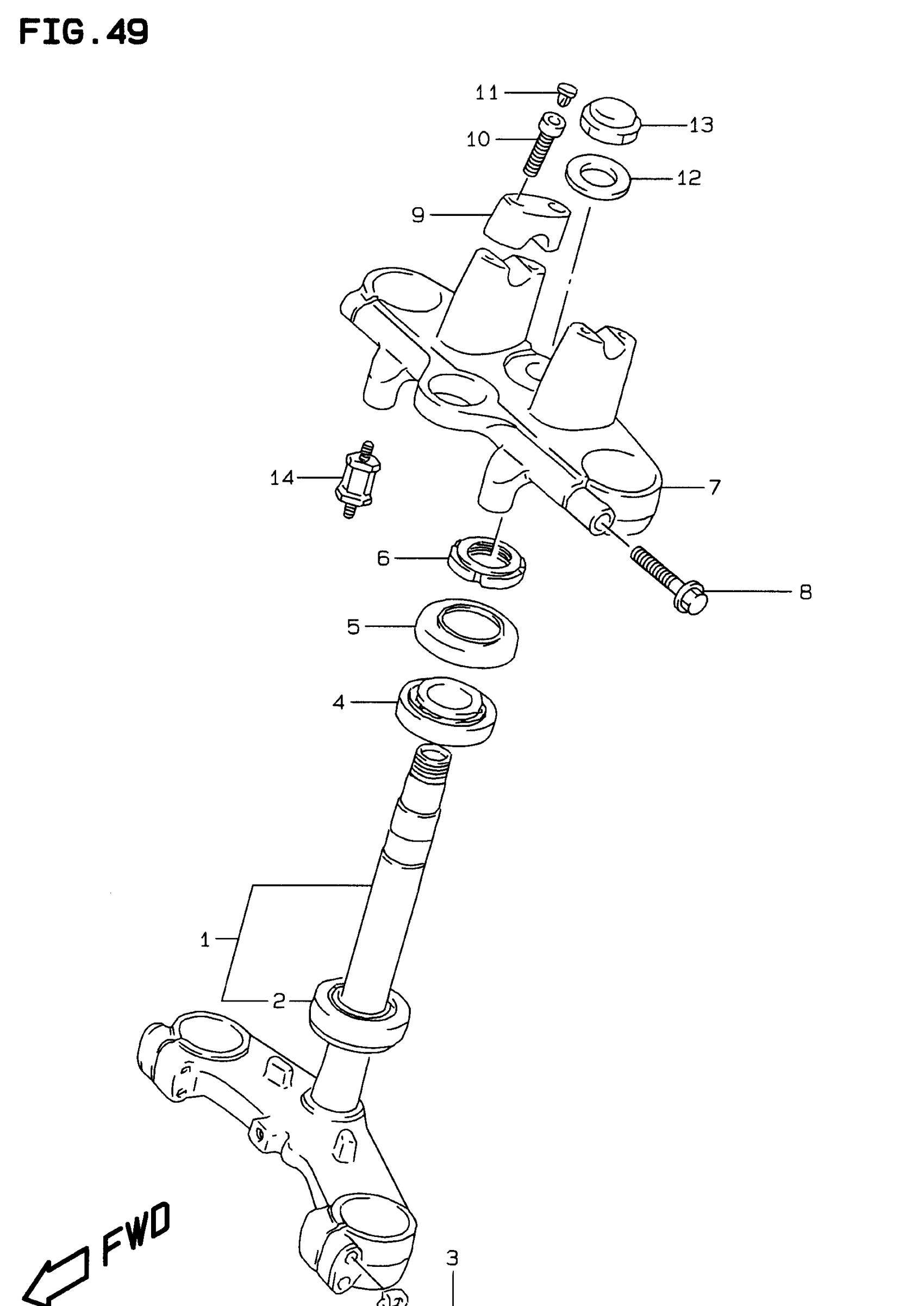

1999 Suzuki GSF600S-Bandit Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2

51410-26E00

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

1
Out of stock

3

BOLT

01550-08407

2
Out of stock

4

BEARING (25X47X15)

09265-25019

1
Out of stock

5

DUST SEAL

51643-49002

1
Out of stock

6

NUT, STEERING STEM

51631-28000

1
Out of stock

7

HEAD, STEERING STEM

51311-26E00

1
Out of stock

8

BOLT

01550-08407

4
Out of stock

9

HOLDER, HANDLE (SILVER)

56211-11D10-0FP

2
Out of stock

10

BOLT

07130-08307

4
Out of stock

11

CAP

09250-06011

4
Out of stock

12

WASHER

51356-10D03

1

$8.47

In stock

13

NUT, CAP

51353-24B00

1

$34.62

In stock

14

STOPPER, METER CUSHION

17788-10D00

2
Out of stock

15

GUIDE, SPEEDOMETER CABLE

34938-26E20

1
Out of stock
