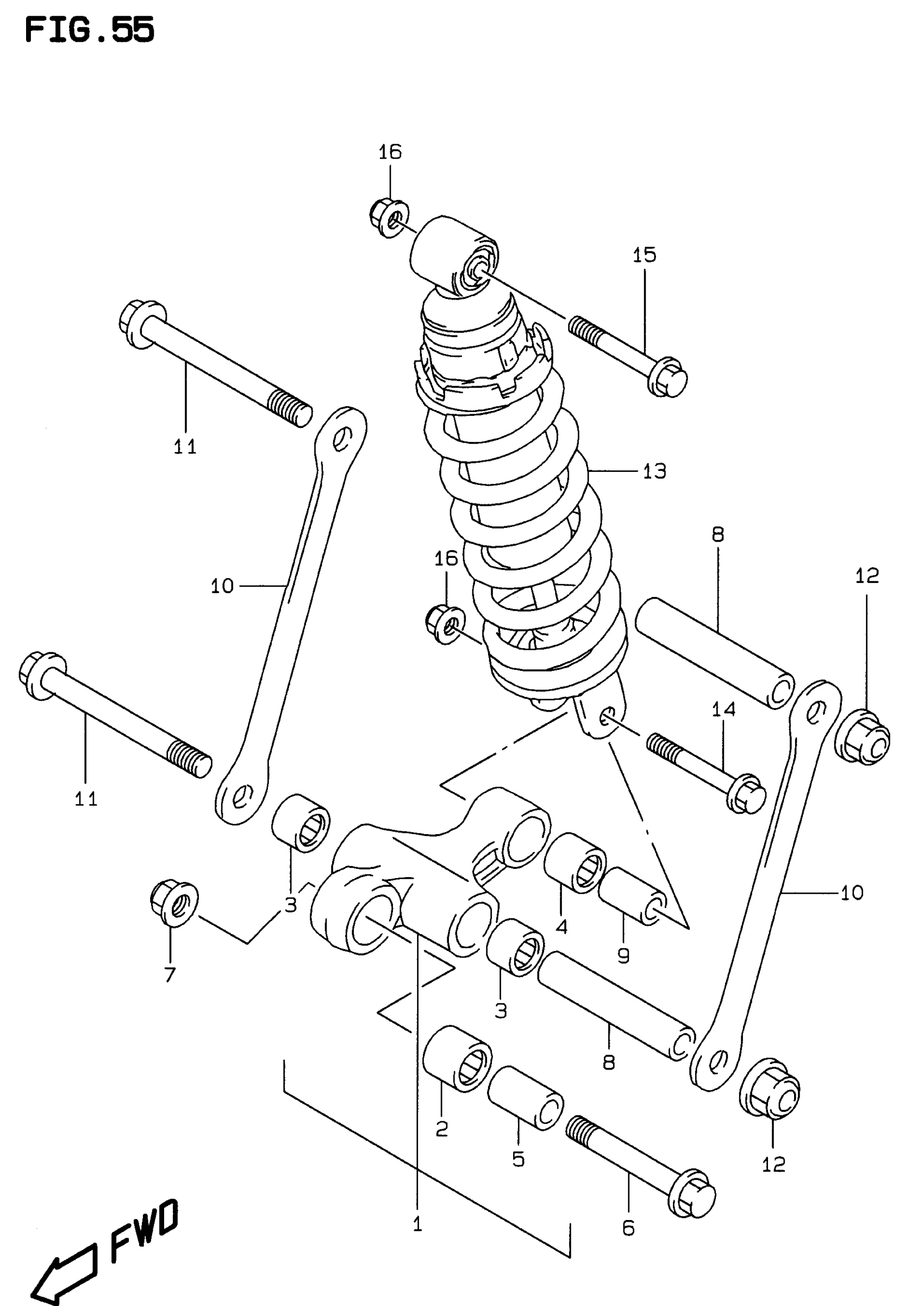

Suzuki GSF600S-BANDIT (1999) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-33871

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$28.70

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

5

SPACER, LEVER FRONT

62684-01D00

$21.87

6

BOLT, LEVER FRONT

62668-42A02

$12.03

7

NUT This part replaces 08319-31128.

08319-3112A

$3.38

8

SPACER (12X17X85)

09180-12122

$25.05

9

SPACER, LEVER REAR

62684-40A10

$11.44

10

ROD, REAR CUSHION LEVER

62641-12C01

Unavailable

11

BOLT (12X115)

09103-12037

$14.72

12

NUT This part replaces 08319-31128.

08319-3112A

$3.38

13

ABSORBER ASSY, REAR SHOCK | MODEL T/V/W

62100-26E10

Unavailable

13

ABSORBER ASSY, REAR SHOCK | MODEL X

62100-26E60

Unavailable

14

BOLT, LOWER (10X54)

09103-10101

$4.35

15

BOLT, UPPER (10X50)

09103-10064

$4.29

16

NUT

08319-31107

$2.73
