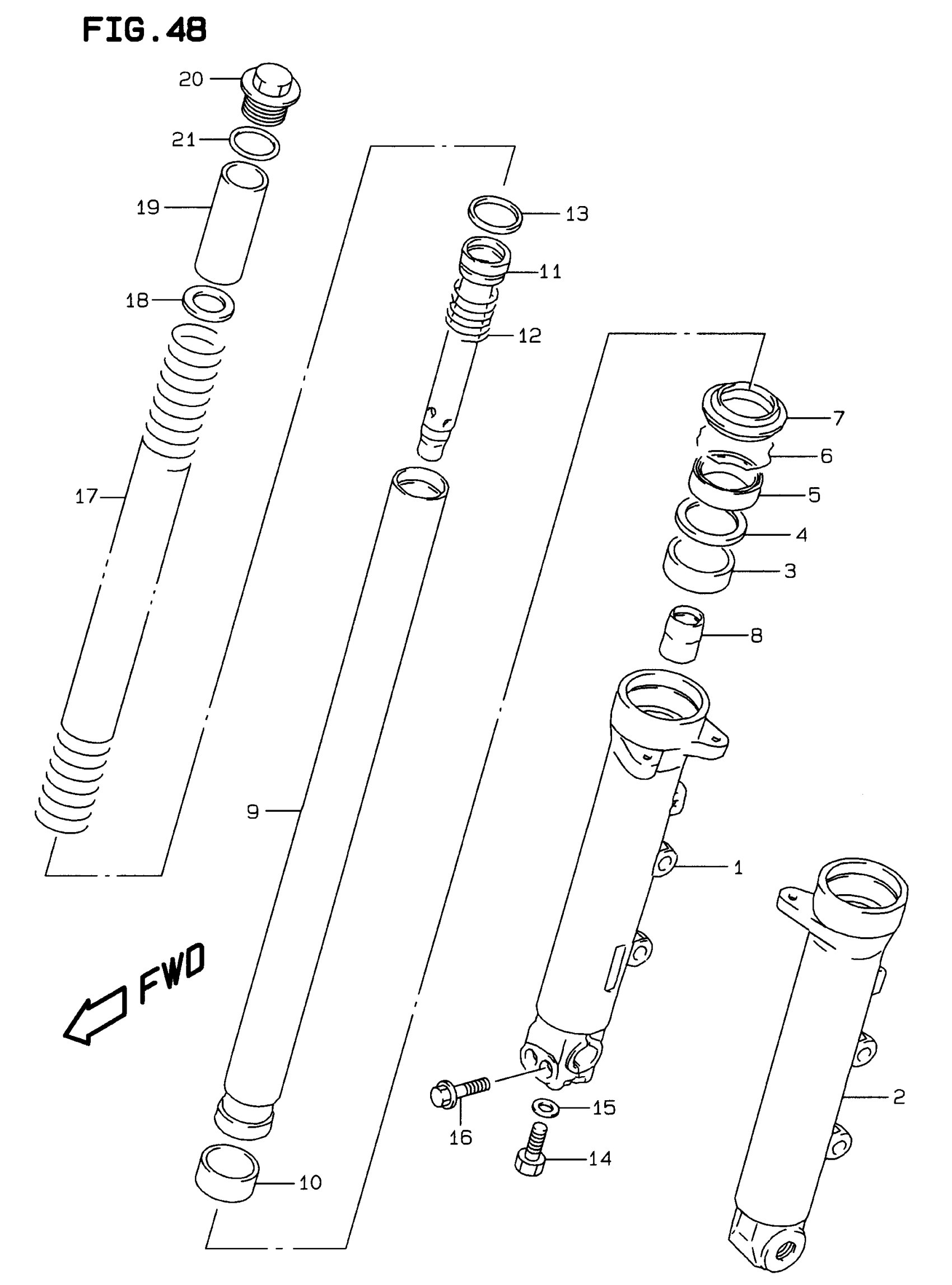

Suzuki GSF600S-BANDIT (1999) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-26E11

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 21

51104-26E11

Unavailable

1

TUBE, OUTER RH

51130-26E00

Unavailable

2

TUBE, OUTER LH

51140-26E00

Unavailable

3

METAL, SLIDE

51167-26E10

$23.09

4

WASHER

51158-05A00

$5.34

5

SEAL, OIL | MODEL T/V/W

51153-27C20

$12.48

5

SEAL, OIL | MODEL X

51153-14F00

$19.48

6

RING, STOPPER

51156-49440

$4.75

7

SEAL, DUST | MODEL T/V/W

51173-46E00

$21.72

7

SEAL, DUST | MODEL X

51173-14F00

$21.12

8

PIECE, OIL LOCK

51195-06C00

$15.78

9

TUBE, INNER

51110-26E11

Unavailable

10

PISTON

51121-26E10

$28.44

11

CYLINDER

51146-26E10

Unavailable

12

SPRING, REBOUND

51177-06C00

$14.73

13

RING, PISTON

51196-06C00

Unavailable

14

BOLT, CYLINDER

51147-16510

$4.09

15

GASKET

51148-41310

$2.14

16

BOLT, RH

01550-08457

$2.63

17

SPRING, FRONT

51171-26E00

Unavailable

18

WASHER, LOWER

51356-10D03

$8.47

19

SPACER

51176-10D40

Unavailable

20

CAP, FORK

51351-10D00

$61.78

21

O RING

09280-32001

$2.07
