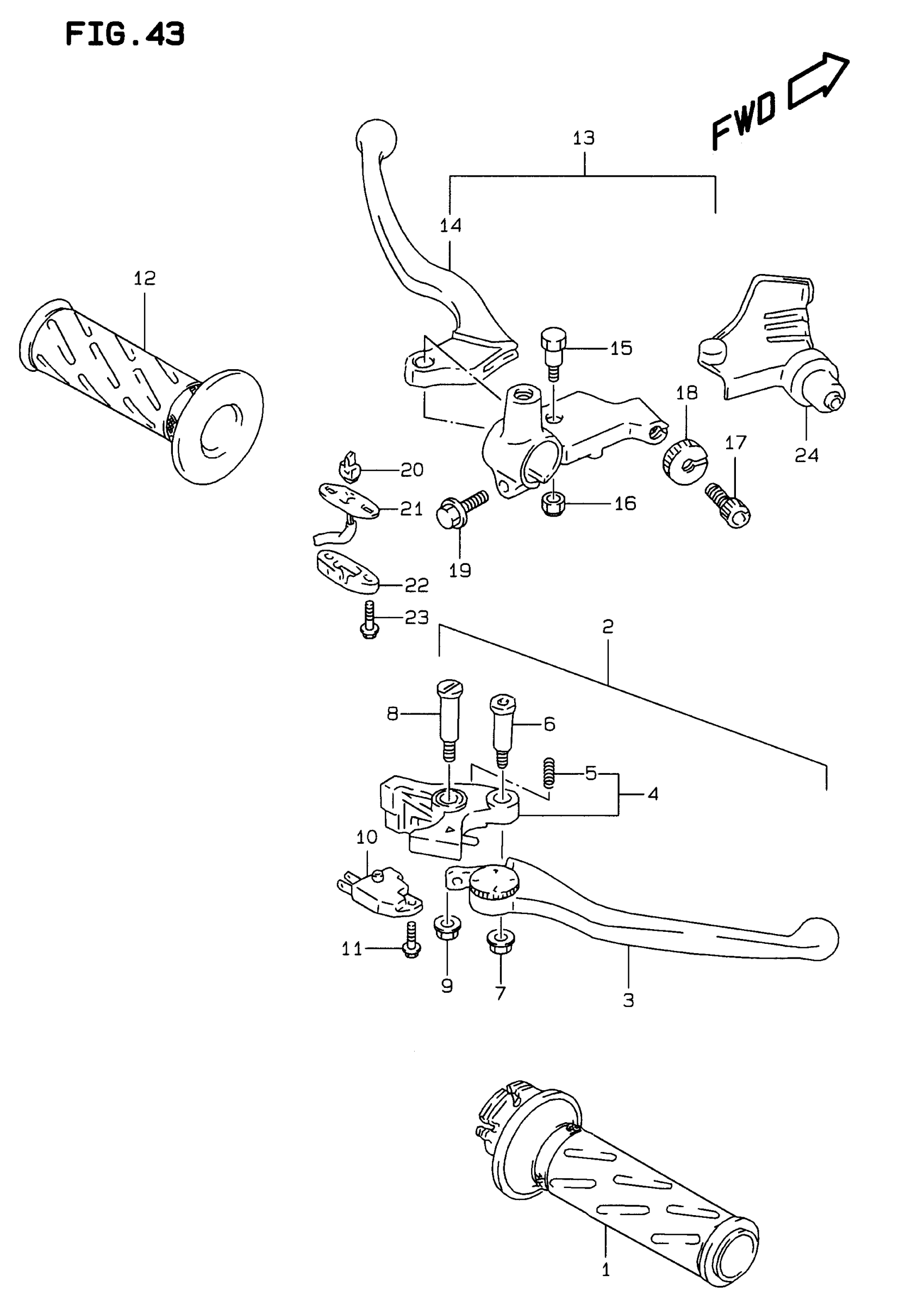

Suzuki GSF600S-BANDIT (1999) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE | MODEL T This part replaces 57110-46E00.

57110-46E02

$26.60

1

GRIP,THROTTLE | MODEL V/W/X This part replaces 57110-46E01.

57110-46E02

$26.60

2

LEVER ASSY, BRAKE | MODEL T/V This part replaces 57300-40C01.

57300-40C10

$84.38

2

LEVER ASSY, BRAKE | MODEL W/X; Includes Item(s) 3 - 9

57300-40C10

$84.38

3

LEVER, ADJUST

57420-32C00

$26.47

4

KNOCKER | MODEL T/V/W This part replaces 57430-40C00.

57430-40C10

$66.87

4

KNOCKER | MODEL X

57430-40C10

$66.87

5

SPRING

57438-32C00

$6.40

6

BOLT, LEVER

57437-32C01

$9.70

7

NUT This part replaces 08319-31063.

08319-3106A

$2.01

8

BOLT, KNOCKER

57431-17C00

$6.51

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$35.21

11

SCREW

57465-17C00

$2.37

12

GRIP, LH (BLACK) | MODEL T This part replaces 57211-22D00.

57211-22D02-291

$13.32

12

GRIP, LH (BLACK) | MODEL V/W/X This part replaces 57211-22D01.

57211-22D02-291

$13.32

13

LEVER ASSY, CLUTCH | MODEL T

57500-01D11

Unavailable

13

LEVER ASSY,CLUT | MODEL V/W/X; Includes Item(s) 14 - 23 This part replaces 57500-01D01.

57500-29B10

Unavailable

14

LEVER, CLUTCH

57620-01D00

Unavailable

15

BOLT

57531-14A00

$7.03

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.31

17

ADJUSTER

57441-11010

$5.14

18

NUT

57442-11010

$2.80

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

20

CONTACT, SWITCH | MODEL T

57465-18601

$3.97

21

WIRE,HARNESS | MODEL T

57541-49100

$11.20

22

COVER | MODEL T

57481-33010

$5.50

23

SCREW | MODEL T

57484-49110

$2.25

24

COVER, CLUTCH LEVER

57661-33400

$9.17
