1999 Suzuki GSF600S-Bandit Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

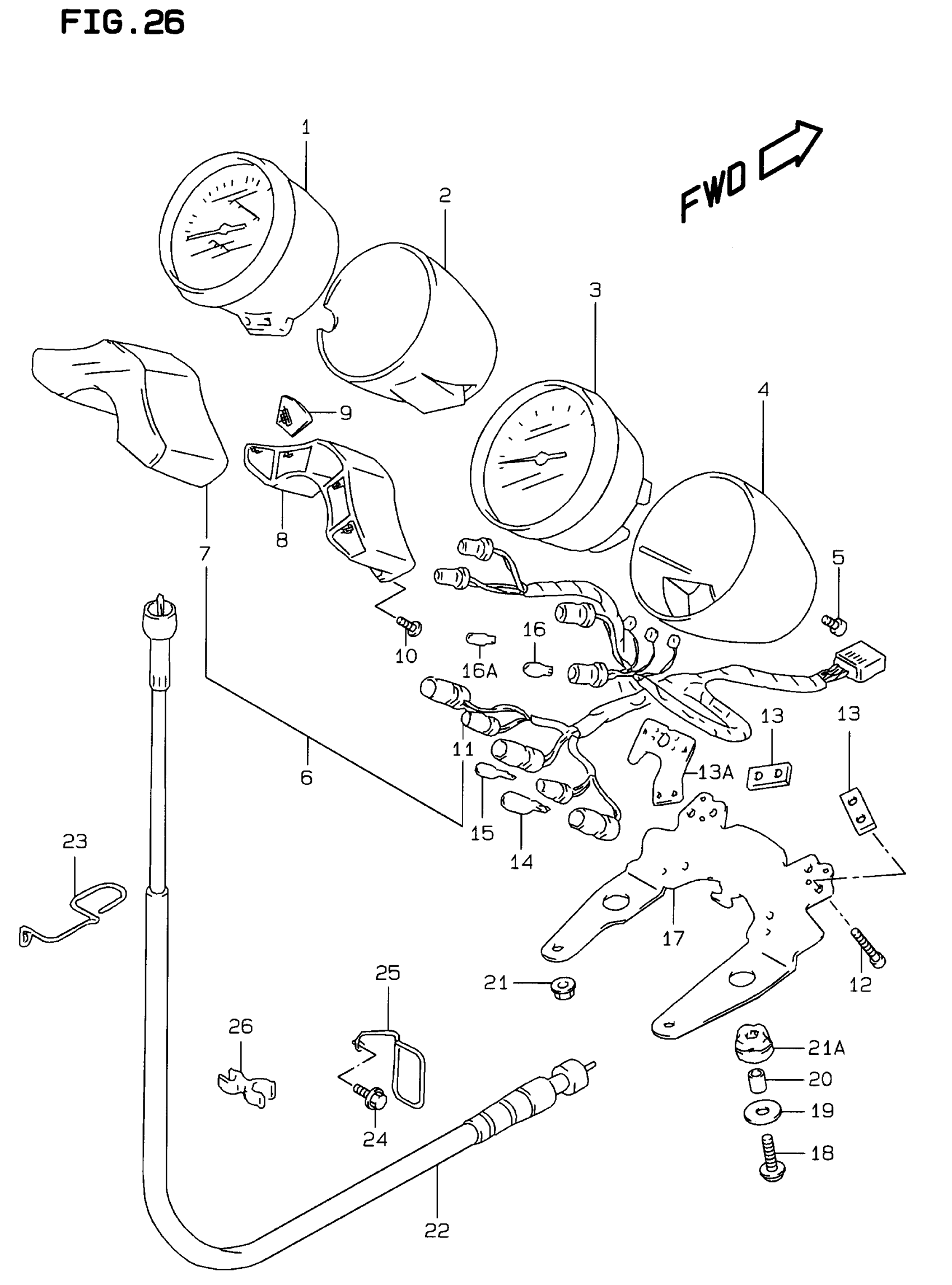

1999 Suzuki GSF600S-Bandit Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER | MODEL T This part replaces 34110-26E20.

34110-26E21

1
Out of stock

1

SPEEDOMETER | MODEL V/W/X

34110-26E21

1
Out of stock

1

SPEEDOMETER | MODEL T E28 This part replaces 34110-26E10.

34110-26E11

1
Out of stock

1

SPEEDOMETER | MODEL V E28

34110-26E21

1
Out of stock

1

SPEEDOMETER | MODEL W/X E28

34110-26E11

1
Out of stock

2

CASE, SPEEDOMETER

34111-23E00

1
Out of stock

3

TACHOMETER | MODEL T This part replaces 34210-26E10.

34210-26E90

1
Out of stock

3

TACHOMETER | MODEL V/W This part replaces 34210-26E11.

34210-26E90

1
Out of stock

3

TACHOMETER | MODEL X This part replaces 34210-26E12.

34210-26E90

1
Out of stock

4

CASE, TACHOMETER | MODEL T This part replaces 34211-23E00.

34211-23E01

1
Out of stock

4

CASE, TACHOMETER | MODEL V/W/X

34211-23E01

1
Out of stock

5

SCREW, METER

34183-10D10

2
Out of stock

6

BOX, PILOT This part replaces 36380-26E40.

36380-26E30

1
Out of stock

6

BOX, PILOT | E28; Includes Item(s) 7 - 11

36380-26E30

1
Out of stock

7

CASE, UPPER

36393-26E10

1
Out of stock

8

CASE, INNER

36381-10D00

1
Out of stock

9

LENS SET, PILOT This part replaces 36300-10850.

36300-10870

1
Out of stock

9

LENS SET, PILOT | MODEL W/X E28

36300-10870

1
Out of stock

10

SCREW This part replaces 03112-04123.

03111-0412A

3
Out of stock

11

SOCKET | MODEL T/V/W This part replaces 34170-26E30.

34170-26E31

1
Out of stock

11

SOCKET | MODEL X

34170-26E31

1
Out of stock

12

BOLT This part replaces 07130-05203.

07130-0520B

4
Out of stock

13

PLATE

34118-10D00

2
Out of stock

13A

PLATE

34113-26E00

1
Out of stock

14

BULB (12V,3.4W)

09471-12082

3
Out of stock

15

BULB (12V,3W)

09471-12085

1
Out of stock

16

BULB (12V,1.7W) | MODEL TMODEL V/W/X

09471-12100

5
Out of stock

16A

BULB (12V,0.84W) | MODEL V/W/X

09471-12189

4
Out of stock

17

BRACKET, METER

34950-26E11

1
Out of stock

18

BOLT This part replaces 01550-06303.

01550-0630A

2
Out of stock

19

WASHER (6.5X20X1.6)

09160-06066

2
Out of stock

20

SPACER (6.5X9X15.5) | MODEL T This part replaces 09180-06087.

09180-06269

2
Out of stock

20

SPACER (6.5X9X15.5) | MODEL V/W/X

09180-06269

2
Out of stock

21

NUT | ~F.NO.102089 This part replaces 08319-31053.

08319-3105B

2
Out of stock

21

NUT | F.NO.102090~ This part replaces 09159-05026.

09159-05043

2
Out of stock

21A

GROMMET

09320-09040

2
Out of stock

22

CABLE ASSY,SPEE | MODEL T/V/W This part replaces 34910-23E00.

34910-23E02

1
Out of stock

22

CABLE ASSY,SPEE | MODEL X This part replaces 34910-23E01.

34910-23E02

1
Out of stock

23

CLAMP, NO.2 CABLE

34938-26E00

1
Out of stock

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

25

CLAMP, CABLE NO.3

34938-21E20

1
Out of stock

26

CLIP

09408-00056

1
Out of stock
