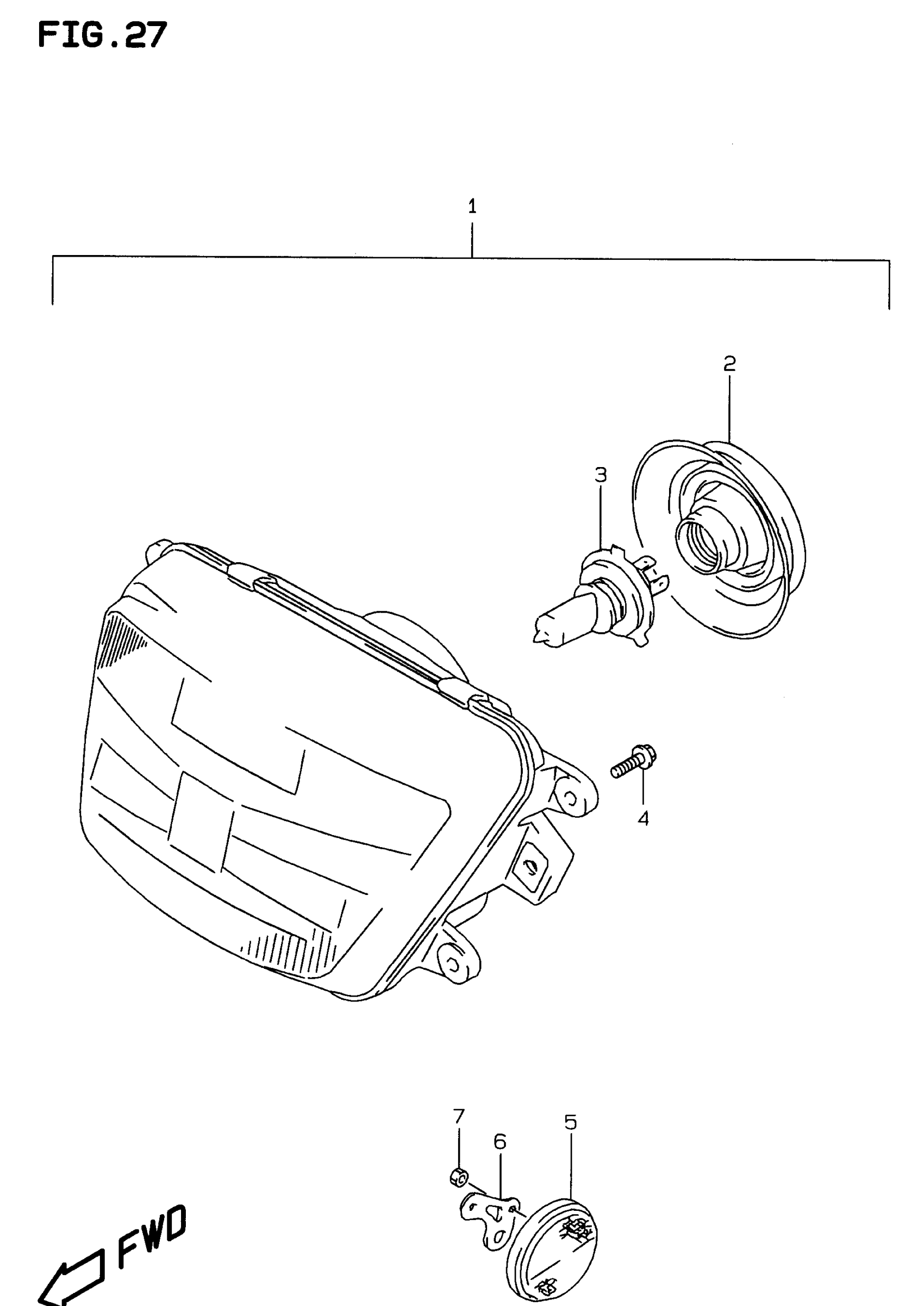

Suzuki GSF600S-BANDIT (1999) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | MODEL T/V This part replaces 35100-19D10.

35100-19D11

Unavailable

1

HEADLAMP ASSY | MODEL W/X; Includes Item(s) 2 - 3

35100-19D11

Unavailable

2

COVER, SOCKET

35173-26B20

Unavailable

3

BULB (12V,60/55W)

09471-12060

$23.37

4

SCREW This part replaces 02142-05163.

02142-0516A

$1.46

5

REFLECTOR, FRONT SIDE

35950-14A00

$16.66

6

BRACKET

35956-21E00

Unavailable

7

NUT This part replaces 08310-00053.

08310-0005A

$1.90
