1999 Suzuki GSF600S-Bandit Electrical Diagram

← All diagrams

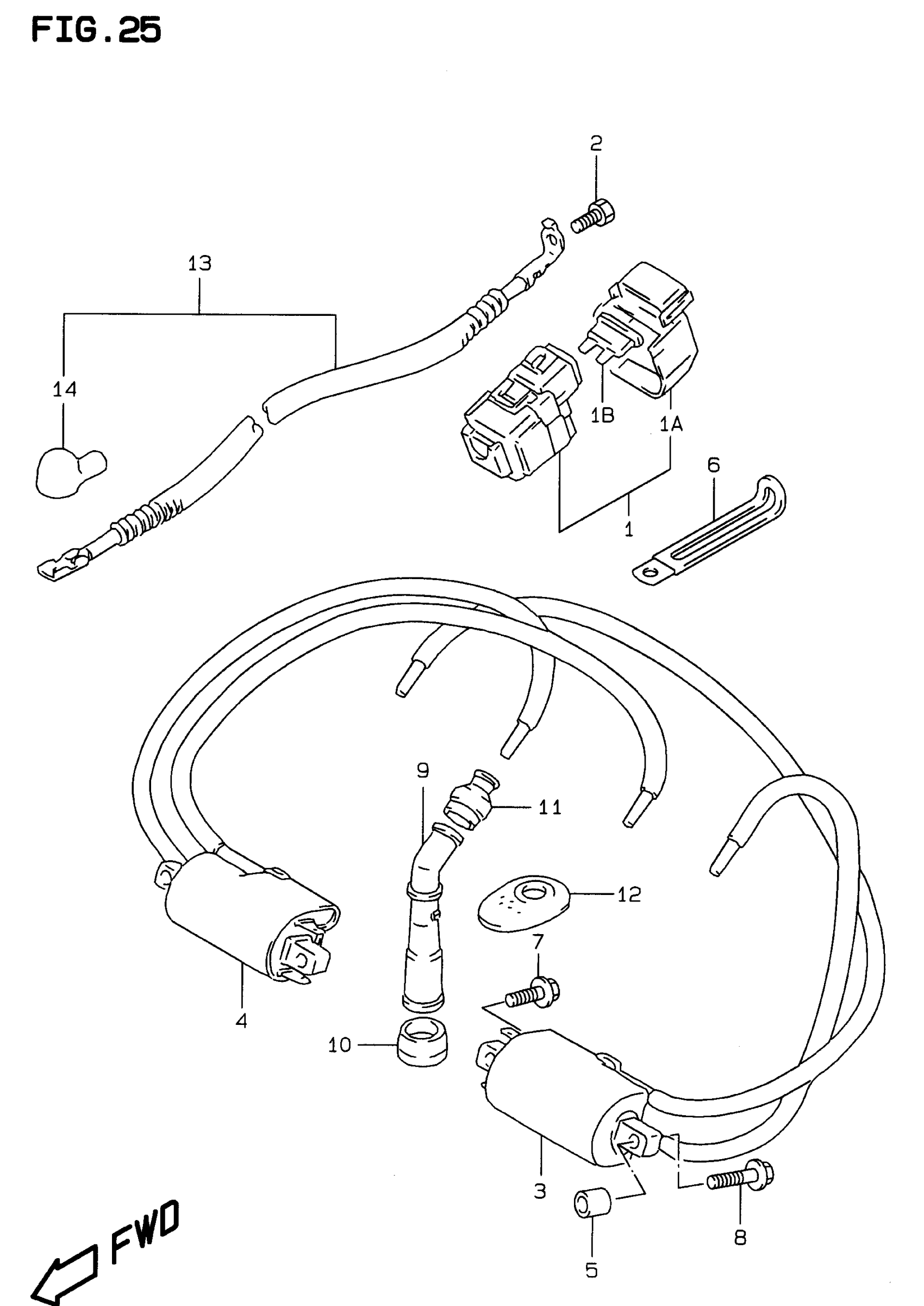

Find the part on the Electrical diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Suzuki GSF600S-Bandit Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY, STARTING | Includes Item(s) 1A - 1B

31800-26E00

1
Out of stock

1A

COVER

31861-26E00

1
Out of stock

1B

FUSE (30A)

09481-30101

2
Out of stock

2

BOLT, STARTING MOTOR (6X8)

09128-06013

2
Out of stock

3

COIL ASSY, IGNITION NO.1 | MODEL T This part replaces 33410-26E00.

33410-26E01

1
Out of stock

3

COIL ASSY, IGNITION | MODEL V/W

33410-26E01

1
Out of stock

4

COIL ASSY, IGNITION | MODEL T This part replaces 33420-26E00.

33420-26E01

1
Out of stock

4

COIL ASSY, IGNITION | MODEL V/W

33420-26E01

1
Out of stock

5

SPACER (6X12X10)

09180-06095

2
Out of stock

6

CLAMP This part replaces 09404-06431.

09404-06039

1
Out of stock

7

BOLT | MODEL T/V This part replaces 01550-06203.

01550-0620A

2
Out of stock

8

BOLT | MODEL T/VMODEL W/X This part replaces 01550-06253.

01550-0625A

2
Out of stock

9

CAP, SPARK PLUG

33510-48B10

4

$31.68

In stock

10

SEAL, SPARK PLUG

33541-23E01

4
Out of stock

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

4
Out of stock

12

COVER, SPARK PLUG CAP

33543-48B00

4
Out of stock

13

WIRE, STARTING MOTOR | Includes Item(s) 14

33810-26E00

1
Out of stock

14

CAP, STARTING MOTOR

31861-06C00

1
Out of stock
