1999 Suzuki GSF600S-Bandit Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

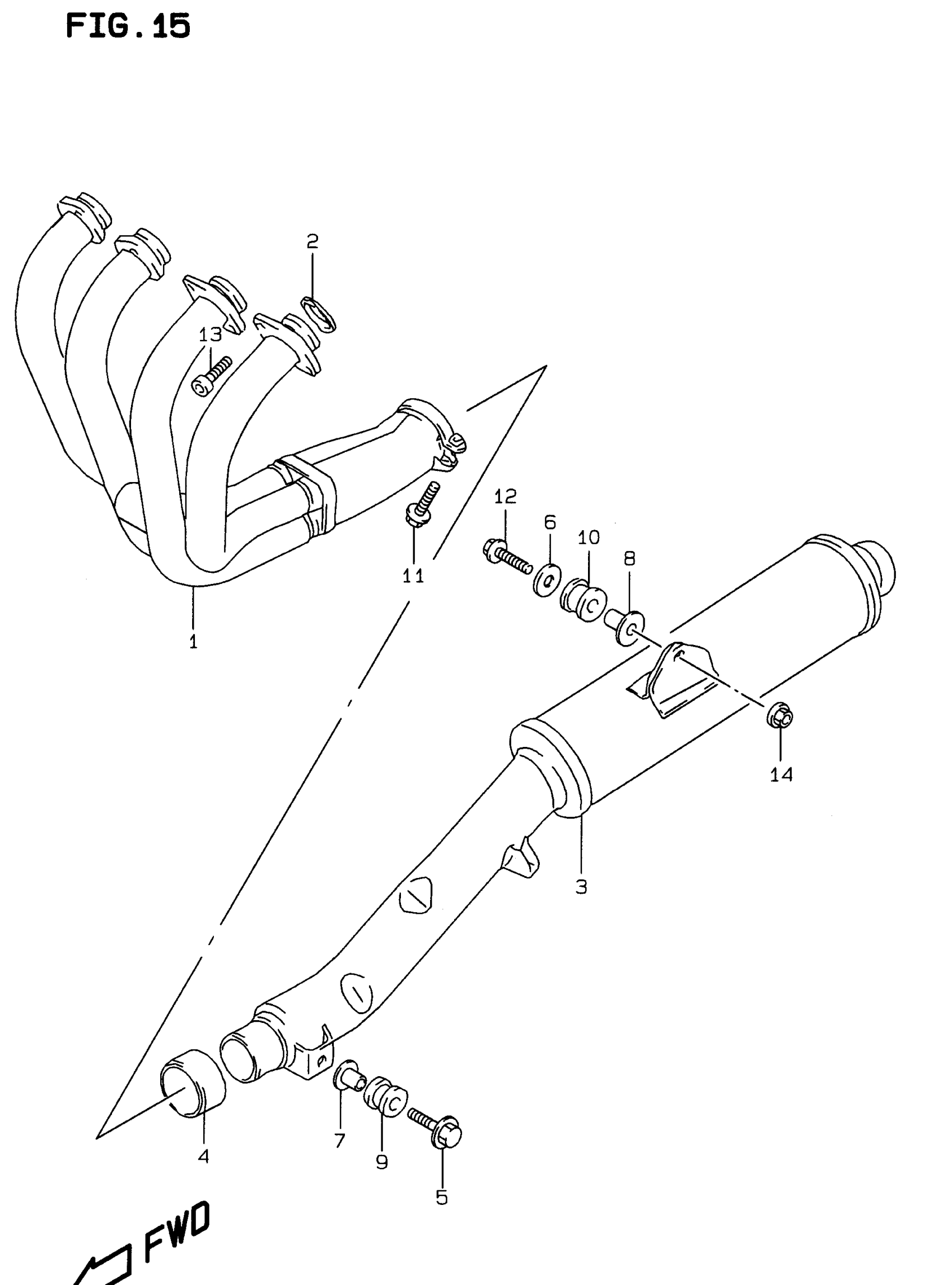

1999 Suzuki GSF600S-Bandit Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST This part replaces 14100-26E00.

14100-31F00

1
Out of stock

2

.GASKET,EXHAUST

14181-18C00

4
Out of stock

3

BODY, MUFFLER

14310-26E00-H01

1
Out of stock

4

CONNECTOR, MUFFLER

14771-27E00

1

$47.45

In stock

5

1

$7.03

In stock

6

WASHER (8.5X33X1.5) | MODEL T/V This part replaces 09160-08106.

09160-08146

1
Out of stock

6

WASHER (8.5X33X1.5) | MODEL W/X This part replaces 09160-08140.

09160-08146

1
Out of stock

7

SPACER, MUF SPRT,FR (L:24.2)

09180-08152

1
Out of stock

8

SPACER, MUF SPRT,RR (L:25.5)

09180-08156

1
Out of stock

9

CUSHION, MUF SPRT,FR

09320-12048

1
Out of stock

10

CUSHION, MUF SPRT,RR

09320-12049

1
Out of stock

11

1

$2.96

In stock

12

BOLT, MUF SPRT,RR

01550-08457

1
Out of stock

13

BOLT, EXHAUST PIPE

07130-08257

8

$3.39

In stock

14

NUT | GREEN This part replaces 08361-25083.

08361-2508A

1
Out of stock

14

NUT | WHITE This part replaces 08361-25088.

08361-2508A

1
Out of stock
