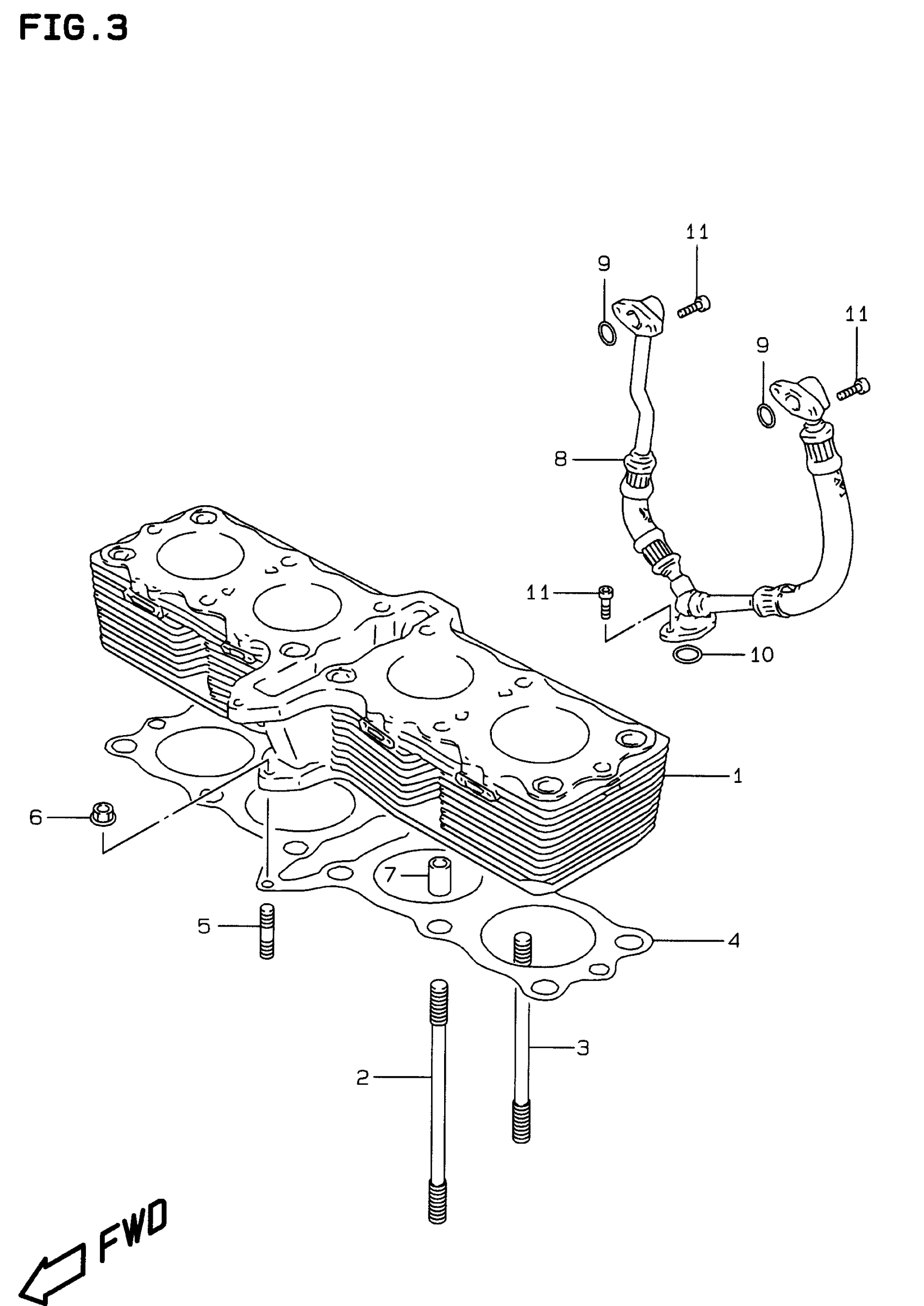

Suzuki GSF600S-BANDIT (1999) CYLINDER Diagram

#

Description
Price

1

CYLINDER This part replaces 11210-26E00.

11210-26E00-0F0

Unavailable

1

CYLINDER | E33 This part replaces 11210-26E10.

11210-26E10-0F0

Unavailable

2

STUD BOLT (10X150) This part replaces 09108-10109.

09108-10144

$10.45

3

STUD BOLT (10X143)

09108-10073

$12.75

4

GASKET, CYLINDER | ~E.NO.122930 This part replaces 11241-27A03.

11241-27A04

$16.35

4

GASKET, CYLINDER | E.NO.122931~

11241-27A04

$16.35

5

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.89

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

PIN | MODEL T This part replaces 09206-13006.

09206-13017

$6.86

7

PIN | MODEL V/W/X

09206-13017

$6.86

8

HOSE, OIL HEAD COOLER

11328-27A04

Unavailable

9

O RING (D:2.5,ID:13.8)

09280-14011

$4.30

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.38
