1999 Suzuki GSF600S-Bandit Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1999 Suzuki GSF600S-Bandit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

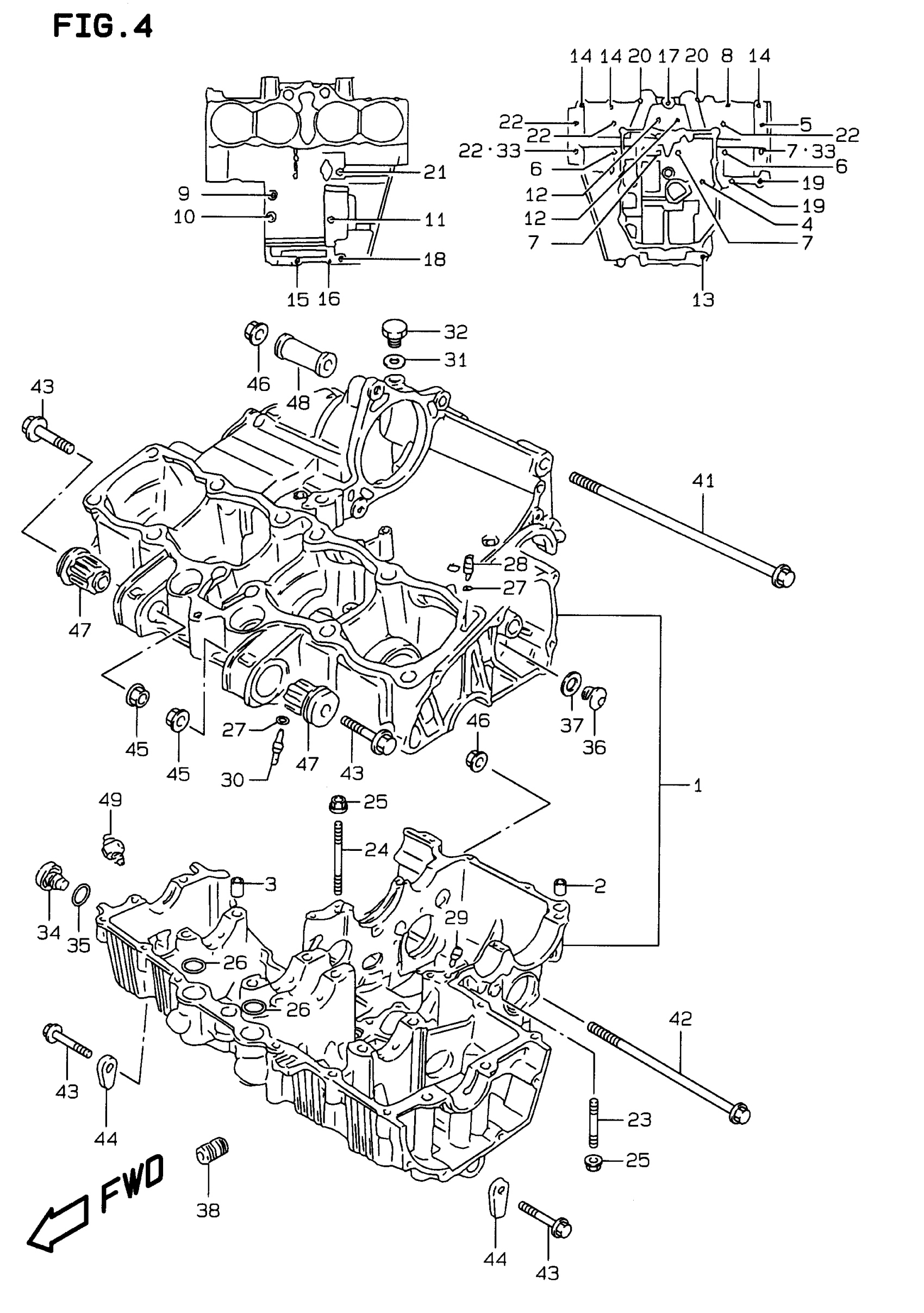

1999 Suzuki GSF600S-Bandit Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET | MODEL T This part replaces 11301-26871.

11301-26873

1
Out of stock

1

CRANKCASE SET | MODEL V This part replaces 11301-26872.

11301-26873

1
Out of stock

1

CRANKCASE SET | MODEL W/X; Includes Item(s) 2 - 40

11301-26873

1
Out of stock

2

PIN

09206-13004

2
Out of stock

3

PIN (11X20) | MODEL T This part replaces 09206-11005.

09206-11017

2
Out of stock

3

PIN | MODEL V/W/X

09206-11017

2
Out of stock

4

BOLT (6X105)

09103-06163

1
Out of stock

5

BOLT (8X105)

09103-08097

1
Out of stock

6

BOLT (8X125)

09103-08182

2
Out of stock

7

BOLT (8X115)

09103-08098

3
Out of stock

8

BOLT This part replaces 01550-06353.

01550-0635A

1
Out of stock

9

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

1
Out of stock

10

BOLT This part replaces 07130-06503.

07130-0650B

1
Out of stock

11

BOLT This part replaces 07130-06653.

07130-0665B

1
Out of stock

12

BOLT This part replaces 07130-08653.

07130-0865B

2
Out of stock

13

BOLT This part replaces 01550-08603.

01550-0860A

1
Out of stock

14

BOLT This part replaces 01550-06353.

01550-0635A

3
Out of stock

15

BOLT | MODEL T/V This part replaces 01550-06403.

01550-0640A

1
Out of stock

15

BOLT | MODEL W/X

01550-06407

1
Out of stock

16

BOLT

01550-06407

1
Out of stock

17

BOLT This part replaces 01550-06503.

01550-0650A

1
Out of stock

18

BOLT This part replaces 01550-06603.

01550-0660A

1
Out of stock

19

BOLT This part replaces 01550-06553.

01550-0655B

2
Out of stock

20

BOLT This part replaces 01550-06703.

01550-0670B

2
Out of stock

21

BOLT This part replaces 01550-06803.

01550-0680B

1
Out of stock

22

BOLT (8X95) | MODEL T/V

09103-08105

4
Out of stock

22

BOLT (8X95) | MODEL W/X

09103-08066

4
Out of stock

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

1
Out of stock

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

1
Out of stock

25

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

26

O RING (D:2.5,ID:21)

09280-21008

2
Out of stock

27

O RING (D:1.2,ID:4.0)

09280-04004

6
Out of stock

28

JET, OIL GALY HEAD

09493-14002

2
Out of stock

29

JET, OIL GALY GEAR SHIFT

09493-24010

2
Out of stock

30

JET, OIL GALY PISTON

09493-80008

4
Out of stock

31

GASKET, HOLE PLUG

09168-12002

1
Out of stock

32

PLUG, HOLE

09247-12103

1
Out of stock

33

GASKET

09168-08021

2
Out of stock

34

PLUG This part replaces 09248-16003.

09248-16007

1
Out of stock

35

O RING (D:2.4,ID:16.8)

09280-17002

1
Out of stock

36

PLUG, SHAFT | MODEL T This part replaces 09248-14005.

09248-14011

1
Out of stock

36

PLUG, OIL GALLERY | MODEL V/W/X

09248-14010

1
Out of stock

37

GASKET

09168-14002

1
Out of stock

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

1
Out of stock

39

BEARING, THRUST RH (GREEN) | MODEL T/VSEE ILLUSTRATION ONFIG.8(B-10) This part replaces 12228-19C00.

12228-43414

1
Out of stock

39

BEARING, THRUST RH (GREEN) | MODEL W/XSEE ILLUSTRATION ONFIG.8(B-10)

12228-43414

1
Out of stock

40

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.8(B-10)

12228-43411

1
Out of stock

40

BEARING, THRUST LH (BLACK)

12228-43412

1
Out of stock

40

BEARING, THRUST LH (BLUE)

12228-43413

1
Out of stock

40

BEARING, THRUST LH (GREEN)

12228-43414

1
Out of stock

40

BEARING, THRUST LH (YELLOW)

12228-43415

1
Out of stock

40

BEARING, THRUST LH (WHITE)

12228-43416

1
Out of stock

41

BOLT (10X180)

09103-10136

1
Out of stock

42

BOLT (10X130)

09103-10122

1
Out of stock

43

BOLT This part replaces 01580-10553.

01580-1055B

4
Out of stock

44

NUT

09159-10020

2
Out of stock

45

NUT This part replaces 08316-10103.

08316-1010B

2
Out of stock

46

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

47

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

2
Out of stock

48

SPACER (L:27)

11610-20C00

1
Out of stock

49

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

1
Out of stock
