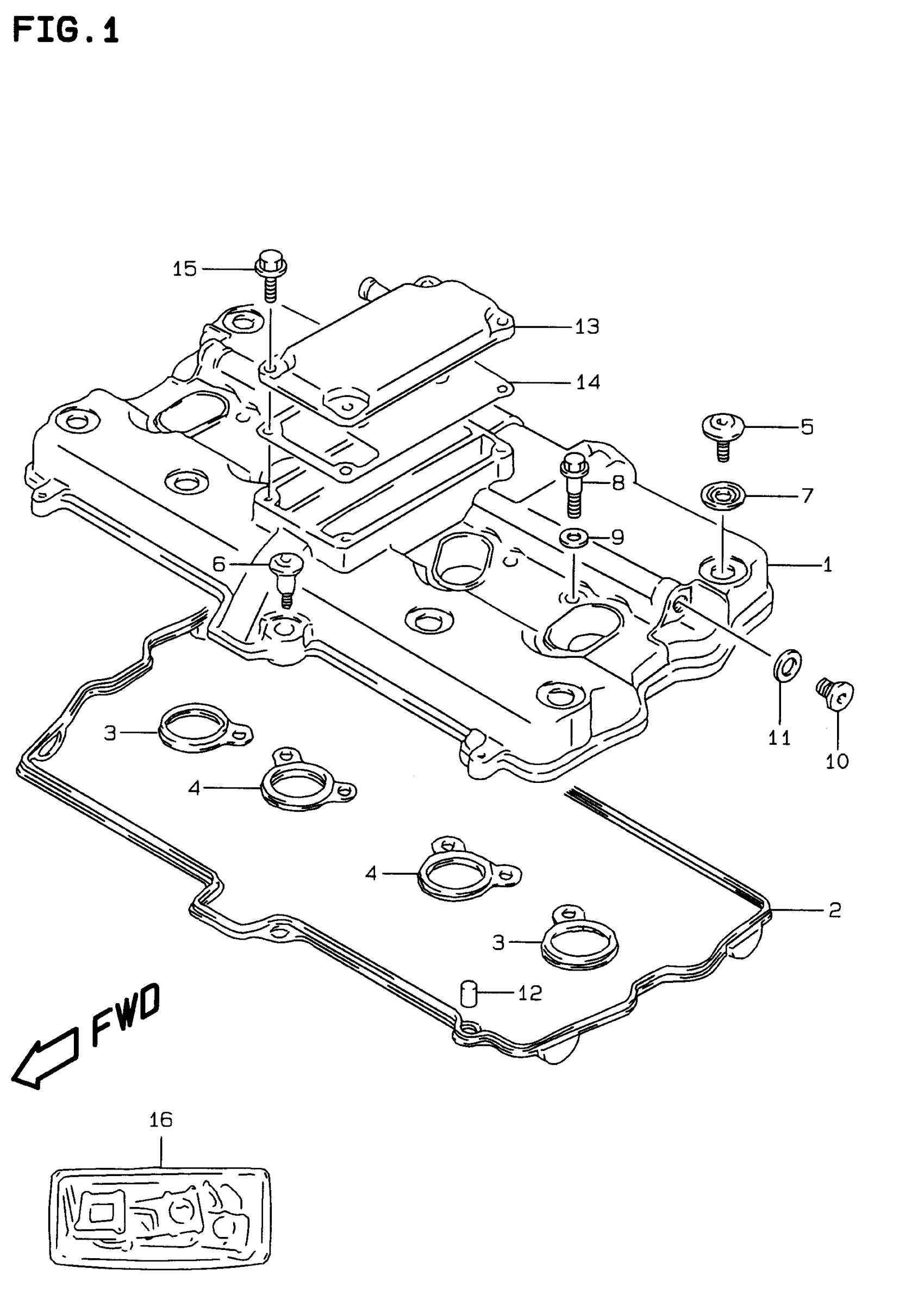

Suzuki GSF600S-BANDIT (1999) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-26E01

Unavailable

2

GASKET, HEAD COVER NO.1

11173-27A02

$41.29

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.50

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$6.91

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.19

6

BOLT (L:19)

09106-07010

$4.38

7

WASHER

09161-11008

$4.17

8

BOLT AND GASKET | ~F.NO.JS1GN77A W2100634?11180-27820BOLT AND GASKET SET This part replaces 09360-08009.

11180-27820

Unavailable

8

BOLT, UNION | F.NO.JS1GN77A W2100635~

11181-27E00

$4.47

9

GASKET (8.2X14X1) | ~F.NO.JS1GN77A W2100634 This part replaces 09168-08008.

09168-08016

$1.70

9

GASKET | F.NO.JS1GN77A W2100635~

09168-08029

$2.39

10

PLUG, HEAD COVER

09248-12004

$8.63

11

GASKET

09168-12002

$1.63

12

PIN

04221-08129

$2.07

13

COVER, BREATHER

11176-26D00

Unavailable

13

COVER, BREATHER | E33

11176-31301

Unavailable

14

GASKET, BREATHER COVER

11177-17E00

$10.09

14

GASKET, BREATHER COVER | E33

11177-27A00-H17

$8.03

15

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

15

BOLT | E33 This part replaces 01550-06203.

01550-0620A

$2.01

16

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 11400-26880.

11400-26886

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 11400-26881.

11400-26886

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 11400-26882.

11400-26886

Unavailable
