2003 Suzuki GSF600S Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2003 Suzuki GSF600S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

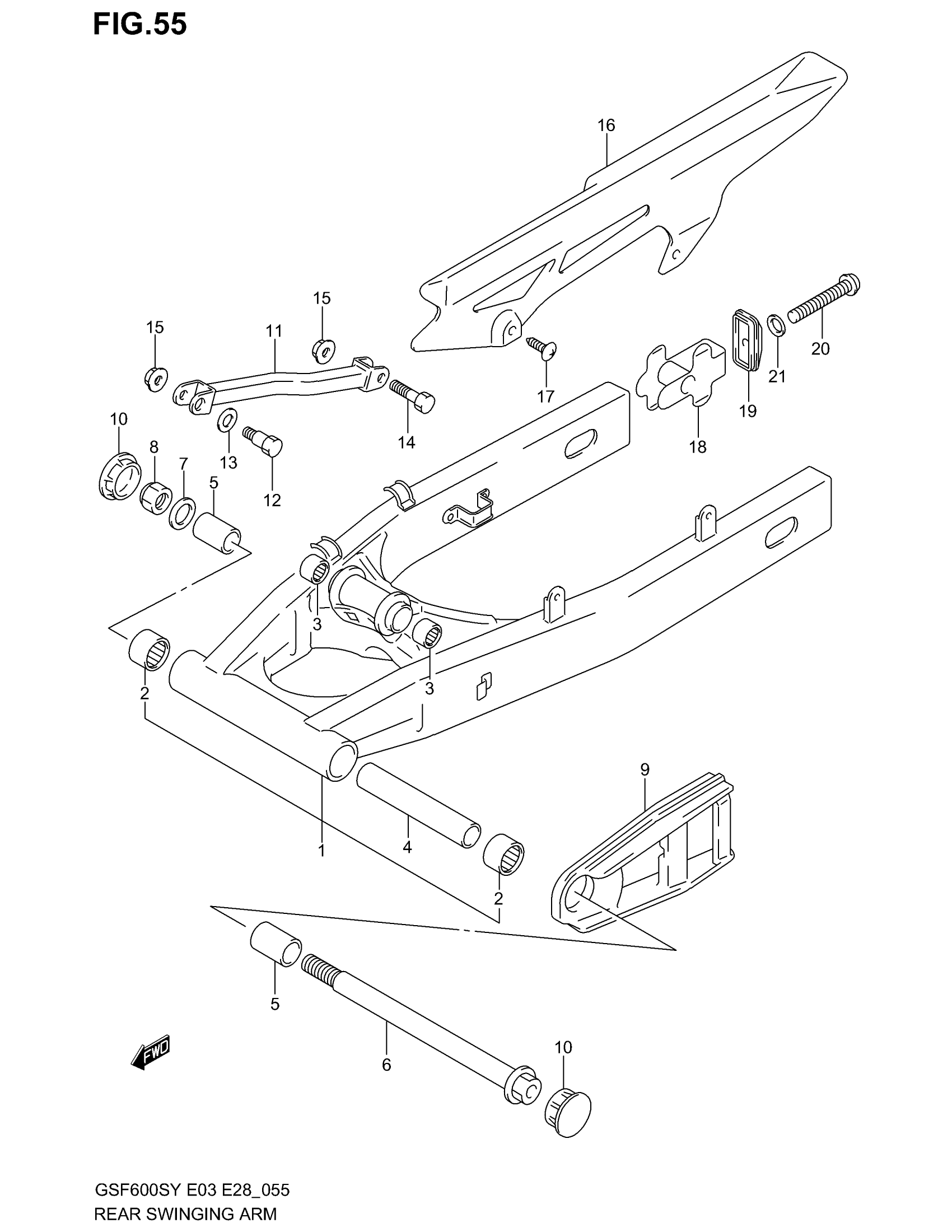

2003 Suzuki GSF600S Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2 - 4

61000-26E20-0FP

1
Out of stock

2

2

$30.11

In stock

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

2
Out of stock

4

SPACER (20.8X27.2X146)

09180-20108

1
Out of stock

5

SPACER, BEARING

61251-21E00

2

$33.92

In stock

6

SHAFT, PIVOT

61211-31E00

1

$144.57

In stock

7

WASHER

09160-18030

1

$2.78

In stock

8

NUT

09159-18007

1
Out of stock

9

BUFFER, CHAIN TOUCH DEFENSE

61273-21E01

1
Out of stock

10

CAP, PIVOT

43585-03F00

2
Out of stock

11

TORQUELINK, REAR (BLACK)

64310-31F00-019

1
Out of stock

12

BOLT, FRONT (10X39)

09111-10051

1

$7.38

In stock

13

WASHER

09160-12011

1
Out of stock

14

BOLT, REAR (10X34)

09100-10187

1

$3.80

In stock

15

NUT

08319-31107

2

$2.92

In stock

16

CASE, CHAIN

61310-19F00

1

$110.52

In stock

17

SCREW (6X16)

09139-06083

2
Out of stock

18

ADJUSTER, CHAIN

61410-21E00

2
Out of stock

20

BOLT (8X50)

09106-08119

2

$3.99

In stock

21

WASHER

09164-08015

2
Out of stock
