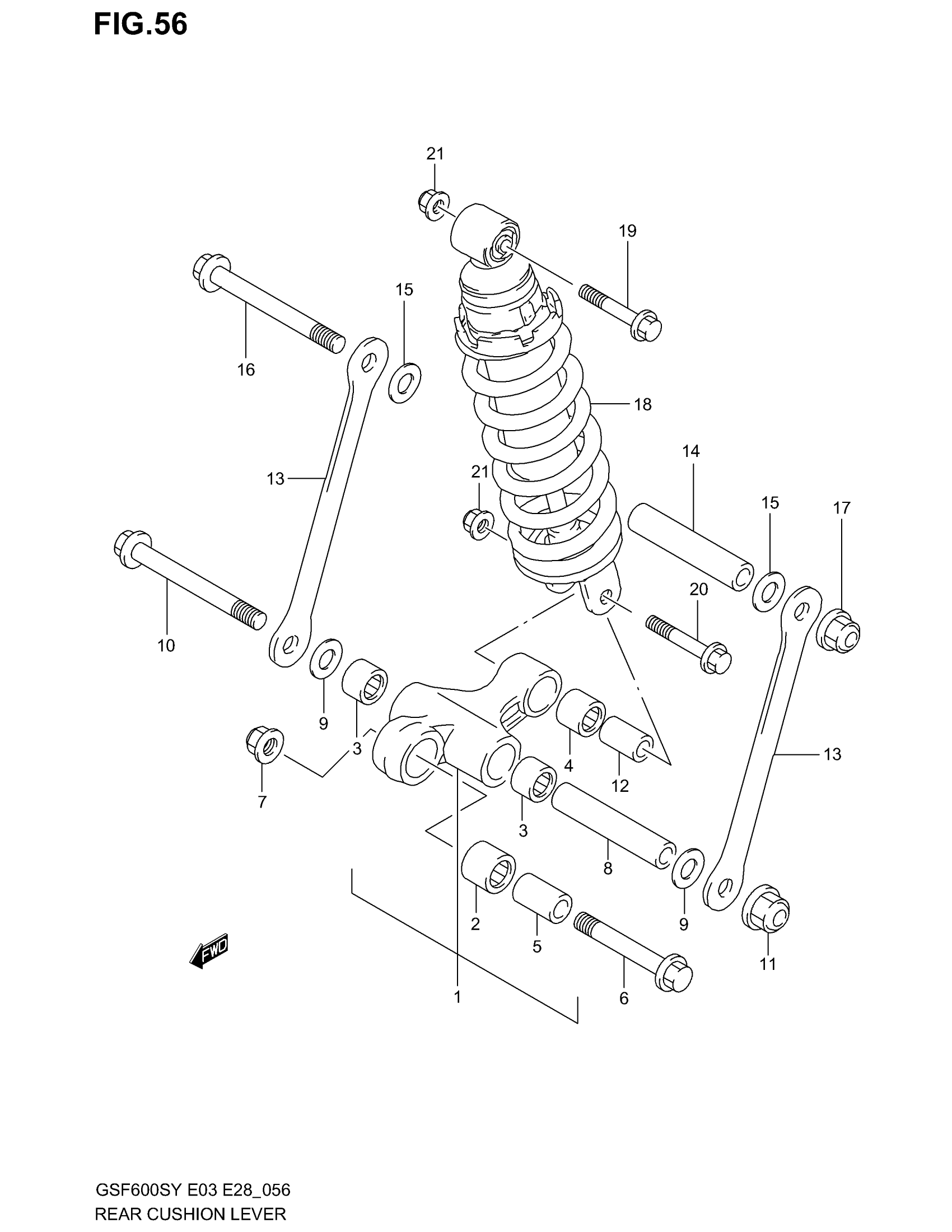

Suzuki GSF600S (2003) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-31820

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$28.70

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$20.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.75

5

SPACER, FRONT (12X20X30)

62684-01D00

$21.87

6

BOLT, FRONT (12X62)

62668-42A02

$12.03

7

NUT This part replaces 08319-31128.

08319-3112A

$3.49

8

SPACER, CENTER (12X17X89)

09180-12125

$28.78

9

WASHER

09160-12037

$3.64

10

BOLT, LOWER This part replaces 62621-42E00.

62621-42E10

$30.12

11

NUT This part replaces 08319-31128.

08319-3112A

$3.49

12

SPACER, REAR (10X17X30)

62684-40A10

$11.96

13

ROD, REAR CUSHION

62641-31F00

Unavailable

14

SPACER, ROD (12X17X89)

09180-12125

$28.78

15

WASHER

09160-12037

$3.64

16

BOLT, LOWER This part replaces 62621-42E00.

62621-42E10

$30.12

17

NUT This part replaces 08319-31128.

08319-3112A

$3.49

18

ABSORBER ASSY, REAR SHOCK

62100-31F10

Unavailable

18

ABSORBER ASSY, REAR SHOCK | MODEL K1/K2/K3 E28

62100-31F30

Unavailable

19

BOLT, UPPER (10X48)

62648-14500

$4.28

20

BOLT, LOWER (10X54)

62311-28E00

$6.08

21

NUT

08319-31107

$2.80
