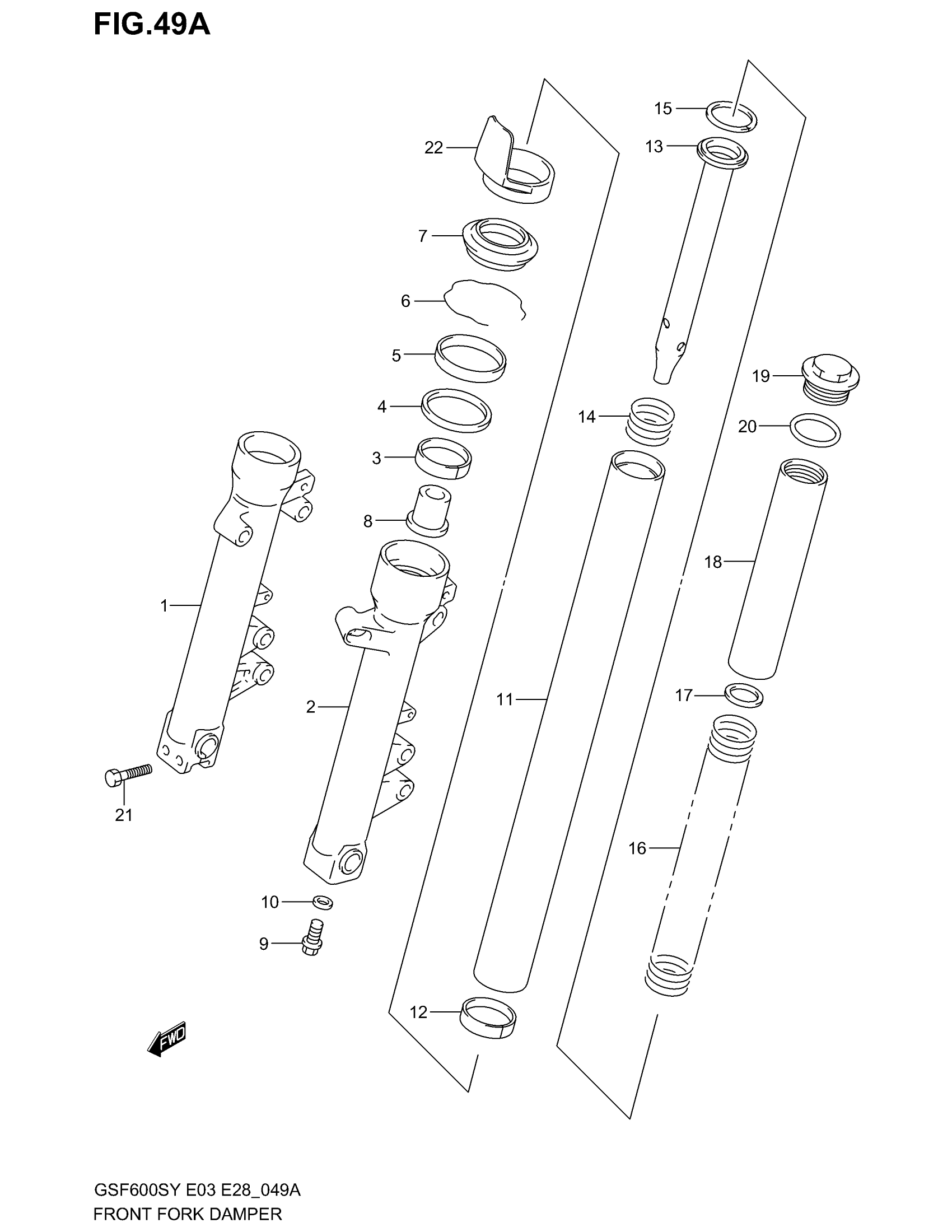

Suzuki GSF600S (2003) FRONT FORK DAMPER (MODEL K3) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-31F50

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 20

51104-31F50

Unavailable

1

TUBE, OUTER RH

51130-31F00

Unavailable

2

TUBE, OUTER LH

51140-31F00

Unavailable

3

METAL, SLIDE

51167-26E10

$23.09

4

WASHER

51158-05A00

$5.34

5

SEAL, OIL

51153-14F00

$19.48

6

CIRCLIP

51156-49440

$4.75

7

SEAL, DUST

51173-14F00

$21.12

8

PIECE, OIL LOCK

51195-33D10

$29.57

9

BOLT

51147-16510

$4.09

10

WASHER

51148-41310

$2.14

11

TUBE, INNER

51110-31F00

Unavailable

12

PISTON

51121-33D10

$17.78

13

CYLINDER

51146-31F00

Unavailable

14

SPRING

51177-06C00

$14.73

15

RING, PISTON

51196-31F00

$6.63

16

SPRING, FRONT

51171-31F10

Unavailable

17

WASHER

51356-10D03

$8.47

18

SPACER, SPRING

51176-14A20

Unavailable

19

CAP

51351-31F40

Unavailable

20

O RING

09280-32001

$2.07

21

BOLT, RH

01550-08457

$2.63

22

PROTECTOR

51201-31F00

Unavailable
