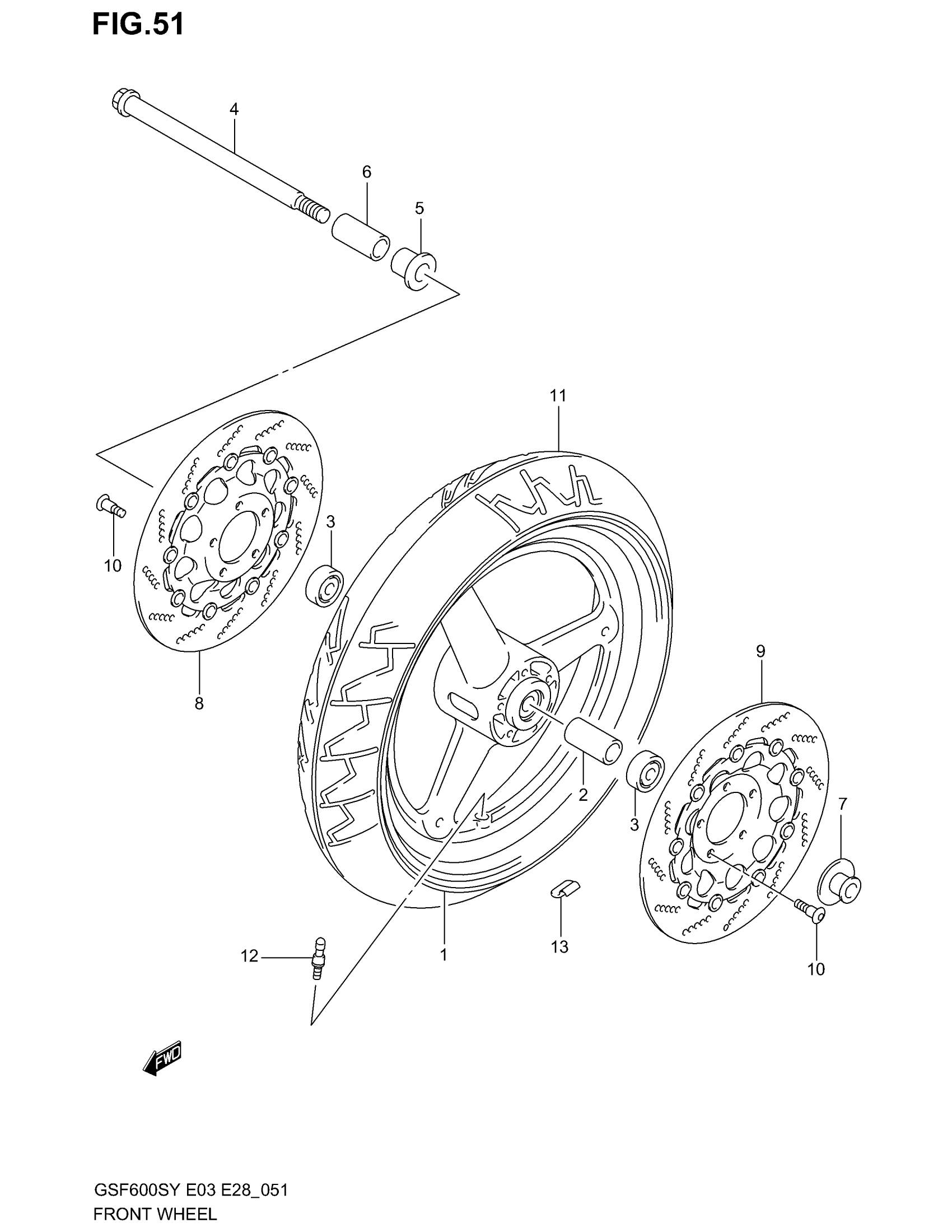

Suzuki GSF600S (2003) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Y/K1/K2 This part replaces 54111-03FA0-35W.

54111-03FA1-35W

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K3 This part replaces 54111-03FA0-019.

54111-03FA1-019

Unavailable

2

SPACER (17.5X22.5X73)

09180-17094

$19.78

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

AXLE, FRONT

54711-07F00

$37.48

5

SPACER, FRONT AXLE RH

54740-32C00

$20.82

6

SPACER, FRONT AXLE RH

54741-03FA0

Unavailable

7

SPACER, FR AXLE LH

54750-31F00

$28.90

8

DISC, FRONT BRAKE RH

59210-32C70

Unavailable

9

DISC, FRONT BRAKE LH

59220-32C70

Unavailable

10

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.33

11

NO DESCRIPTION AVAILABLE This part replaces 55110-31F00.

55110-31F01

Unavailable

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

13

BALANCER, WHEEL (10G)

55411-00A00

$1.35

13

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$5.14
