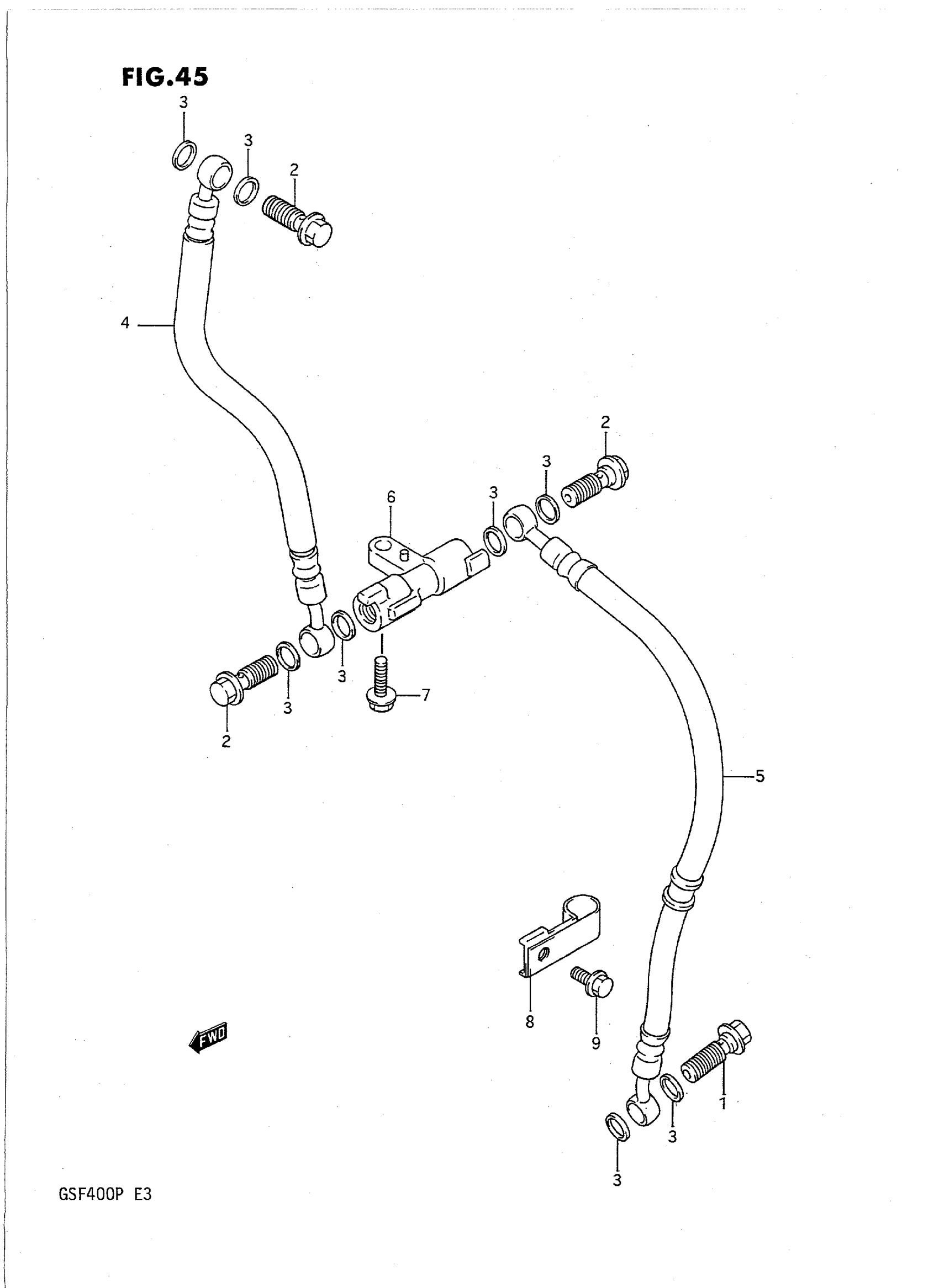

Suzuki GSF400P (1993) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10033.

09360-10062

$5.99

2

UNION BOLT (10X1.0X24)

09360-10017

$3.19

3

WASHER (10X15X1.5)

09161-10009

$1.89

4

HOSE, FRONT BRAKE NO.1

59480-10D30

Unavailable

5

HOSE, FRONT BRAKE NO.2 LH

59440-11D00

Unavailable

6

JOINT, BRAKE HOSE

59491-12C00

Unavailable

7

BOLT This part replaces 01517-06167.

01550-06167

$2.22

8

CLAMP, FRONT BRAKE NO.2

59268-01D10

Unavailable

9

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$2.01
